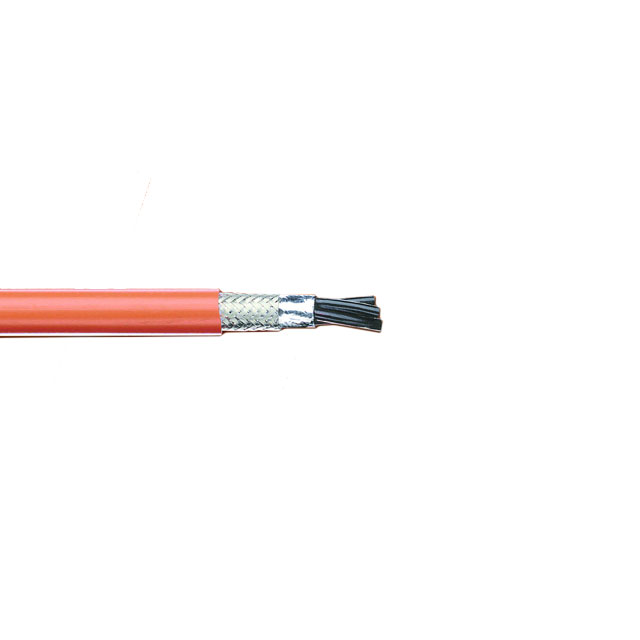

SF61223CY OR199

Active

ALPHA WIRE

AWIS SERIES SF

Search across all available documentation for this part.

Active

ALPHA WIRE

AWIS SERIES SF

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	SF61223CY OR199	SF61223CY Series

Cable Type	-	Multi-Conductor
Conductor Insulation	-	Poly-Vinyl Chloride (PVC)
Conductor Material	-	Copper, Tinned
Features	-	Drain Wire
Jacket (Insulation) Diameter	-	20.12 mm
Jacket (Insulation) Diameter	-	0.792 in
Jacket (Insulation) Material	-	Thermoplastic Elastomer (TPE)
Jacket (Insulation) Thickness	-	0.065 in
Jacket (Insulation) Thickness	-	1.651 mm
Jacket Color	-	Orange
Length	-	1000 ft
Length	-	304.8 m
Length	-	500 '
Length	-	152.4 m
null		-
Number of Conductors	-	8
Shield Coverage	-	85 - 100 %
Shield Material	-	Copper, Tinned, Aluminum
Shield Type	-	Foil, Braid
Voltage	-	600 V
Wire Gauge	-	10 AWG, 16 AWG

AWIS SERIES SF

Part	Jacket (Insulation) Material	Number of Conductors	Shield Type	Shield Material	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Voltage	Features	Wire Gauge	Cable Type	Shield Coverage	Length	Length	Jacket Color	Conductor Material	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Insulation	Length [x]	Length [x]
ALPHA WIRE SF61223CY OR199
ALPHA WIRE SF61223CY OR001	Thermoplastic Elastomer (TPE)	8	Braid, Foil	Aluminum, Copper, Tinned	0.065 in	1.651 mm	600 V	Drain Wire	10 AWG, 16 AWG	Multi-Conductor	85 %, 100 %	1000 ft	304.8 m	Orange	Copper, Tinned	20.12 mm	0.792 in	Poly-Vinyl Chloride (PVC)
ALPHA WIRE SF61223CY OR002	Thermoplastic Elastomer (TPE)	8	Braid, Foil	Aluminum, Copper, Tinned	0.065 in	1.651 mm	600 V	Drain Wire	10 AWG, 16 AWG	Multi-Conductor	85 %, 100 %			Orange	Copper, Tinned	20.12 mm	0.792 in	Poly-Vinyl Chloride (PVC)	500 '	152.4 m
