ITNA-0249-D104

Active

SCHURTER Inc.

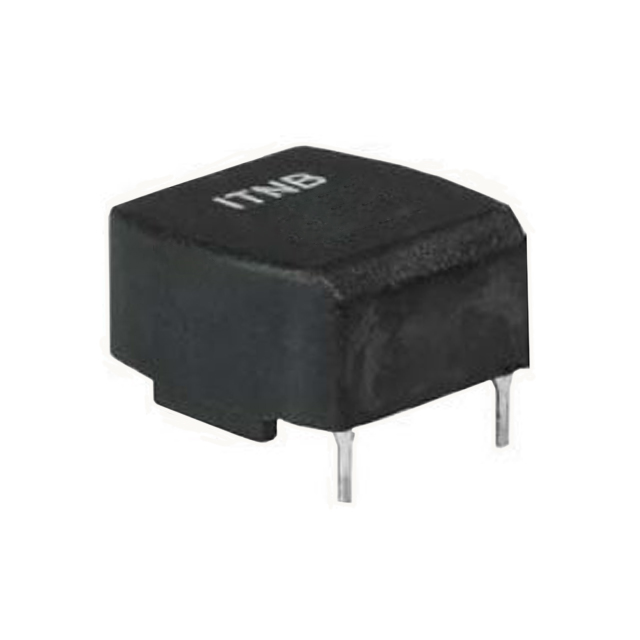

ITNA PULSE TRANSFORMER THT 0.1A

Search across all available documentation for this part.

Active

SCHURTER Inc.

ITNA PULSE TRANSFORMER THT 0.1A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

3.5mH SCR and Triac Trigger (Encapsulated) Pulse Transformer 1:1 Through Hole

Technical documentation and resources

Specification	ITNA-0249-D104	ITNA Series

ET (Volt-Time)	300 VµS	300 - 400 VµS
Height - Seated (Max) [Max] [z]	13 mm	13 mm
Height - Seated (Max) [Max] [z]	0.512 "	0.512 "
Inductance	3.5 mH	2.2 - 3.5 mH
Mounting Type	Through Hole	Through Hole
Operating Temperature [custom]	100 °C, -25 °C	-25 - 100 °C
Size / Dimension	-	0.878 in
Size / Dimension	-	0.894 in
Size / Dimension [x]	0.701 in, 17.8 mm	0.701 - 22.3 in
Size / Dimension [y]	18.2 mm, 0.717 in	0.717 - 22.7 mm
Transformer Type	SCR and Triac Trigger (Encapsulated)	SCR and Triac Trigger (Encapsulated)
Turns Ratio - Primary:Secondary	1:1	1:1
Weight	9.12 g	9.12 - 10.89 g
Weight	0.32 oz	0.32 - 0.384 oz

Part	Mounting Type	Turns Ratio - Primary:Secondary	Weight	Weight	Transformer Type	Size / Dimension [x]	Size / Dimension [y]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Inductance	Operating Temperature [custom]	ET (Volt-Time)	Size / Dimension [x]	Size / Dimension [y]
SCHURTER Inc. ITNA-0249-D104	Through Hole	1:1	9.12 g	0.32 oz	SCR and Triac Trigger (Encapsulated)	0.701 in, 17.8 mm	0.717 in, 18.2 mm	13 mm	0.512 "	3.5 mH	-25 °C, 100 °C	300 VµS
