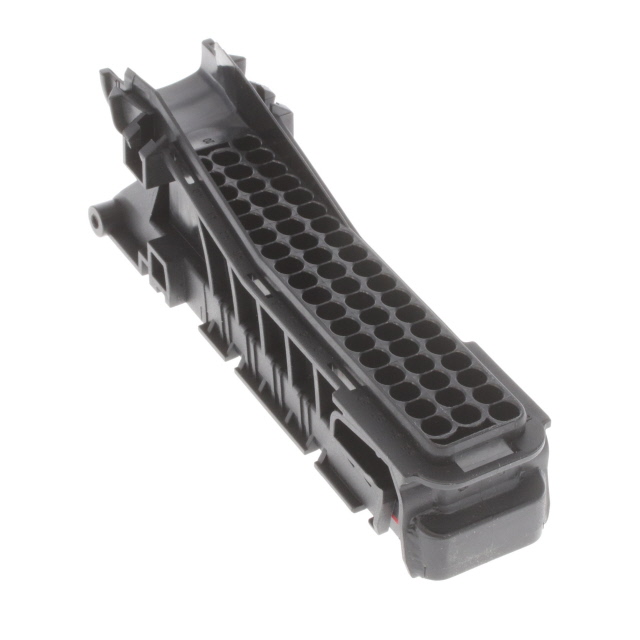

828907-1

Active

TE Connectivity AMP Connectors

CONN RCPT HSG 55POS 5.00MM

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN RCPT HSG 55POS 5.00MM

Technical Specifications

Parameters and characteristics for this part

Specification	828907-1

Color	Black
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Female Socket
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	55 positions
Number of Rows	3
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	5 mm
Pitch [x]	0.197 in
Row Spacing [Max]	0.236 in
Row Spacing [Max]	6 mm

CONN RCPT HSG 55POS 5.00MM

Part	Number of Rows	Insulation Material	Number of Positions	Note	Connector Type	Row Spacing [Max]	Row Spacing [Max]	Contact Type	Contact Termination	Color	Mounting Type	Pitch [x]	Pitch [x]	Operating Temperature [Max]	Operating Temperature [Min]
TE Connectivity AMP Connectors 828907-1	3	Polybutylene Terephthalate (PBT), Glass Filled	55 positions	Contacts Not Included	Receptacle	0.236 in	6 mm	Female Socket	Crimp	Black	Free Hanging (In-Line)	5 mm	0.197 in	85 °C	-40 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

55 Rectangular Connectors - Housings Receptacle Black 0.197" (5.00mm)

Technical documentation and resources

No documents available
