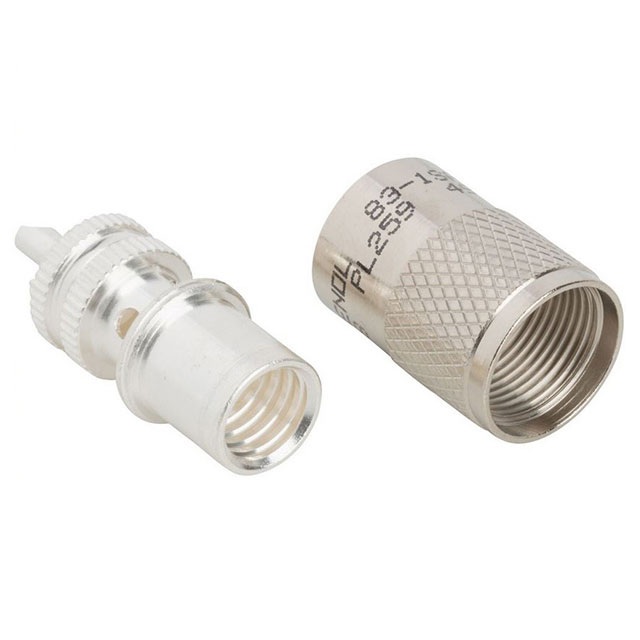

083-1SPB-15RFX

Active

Amphenol RF

CONN UHF PLUG STR SOLDER

Search across all available documentation for this part.

Active

Amphenol RF

CONN UHF PLUG STR SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	083-1SPB-15RFX

Body Finish	Nickel
Body Material	Brass
Cable Group	302, 9A, RG-8, 213, 9B, 225, 8A, 87, 214, 9, 393
Center Contact Material	Brass
Center Contact Plating	Silver
Connector Style	UHF
Connector Type	Male Pin, Plug
Contact Termination	Solder Cup
Dielectric Material	Phenol Formaldehyde (Phenolic)
Features	PL-259
Frequency - Max [Max]	300 MHz
Housing Color	Silver
Impedance	Non-Constant
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Shield Termination	Solder
Voltage Rating	500 V

Part	Body Material	Mating Cycles	Cable Group	Center Contact Material	Mounting Type	Features	Dielectric Material	Connector Type	Impedance	Connector Style	Frequency - Max [Max]	Voltage Rating	Body Finish	Center Contact Plating	Housing Color	Contact Termination	Shield Termination	Number of Ports	Operating Temperature [Min]	Operating Temperature [Max]	Impedance
Amphenol RF 083-1SPB-15RFX	Brass	500	213 214 225 302 393 87 8A 9 9A 9B RG-8	Brass	Free Hanging (In-Line)	PL-259	Phenol Formaldehyde (Phenolic)	Male Pin Plug	Non-Constant	UHF	300 MHz	500 V	Nickel	Silver	Silver	Solder Cup	Solder	1
Amphenol RF 083-1SP	Brass	500	213 214 225 302 393 87 8A 9 9A 9B RG-8	Brass	Free Hanging (In-Line)	PL-259	Liquid Crystal Polymer (LCP)	Male Pin Plug		UHF	300 MHz	500 V	Silver	Silver	Silver	Solder Cup	Solder	1	-65 ░C	165 °C	50 Ohms

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1000	$ 2.80

General part information

UHF Connector Plug, Male Pin Non-Constant Free Hanging (In-Line) Solder Cup
