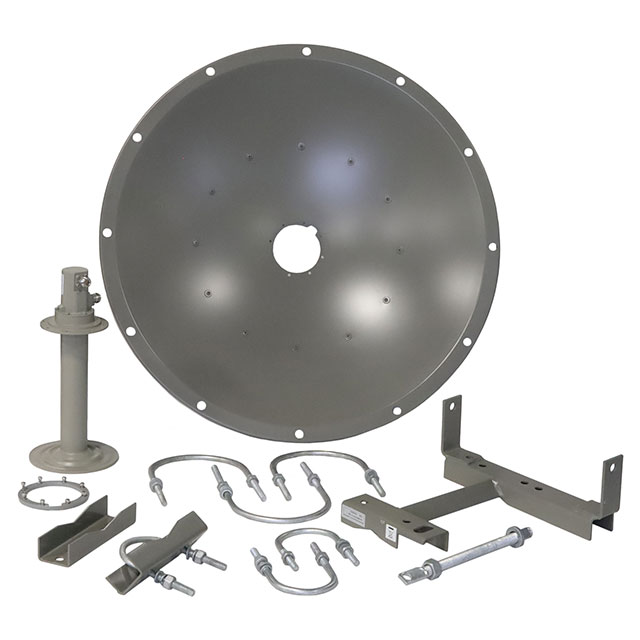

HDDA5W-29-DP2
ActiveTE Connectivity Raychem Cable Protection
RF ANT 5.4GHZ DISH N FEM BRKT MT
Deep-Dive with AI
Search across all available documentation for this part.
HDDA5W-29-DP2
ActiveTE Connectivity Raychem Cable Protection
RF ANT 5.4GHZ DISH N FEM BRKT MT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | HDDA5W-29-DP2 |
|---|---|
| Antenna Type | Dish |
| Applications | Wi-Fi, WiMax™ |
| Frequency (Center/Band) | 5.4 GHz |
| Frequency Group | SHF |
| Frequency Range [Max] | 5.875 GHz |
| Frequency Range [Min] | 4.9 GHz |
| Gain | 29 dBi |
| Height (Max) [Max] | 648 mm |
| Height (Max) [Max] | 25.512 in |
| Mounting Type | Bracket Mount |
| Number of Bands | 1 |
| Power - Max [Max] | 100 W |
| RF Family/Standard | WiFi |
| Termination | N Type Female |
| VSWR | 1.8 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 316.54 | |
| 10 | $ 283.28 | |||
Description
General part information
HDDA5W Series
RF ANTENNA WiMax™, Wi-Fi Dish N Type Female Bracket Mount
Documents
Technical documentation and resources
No documents available
