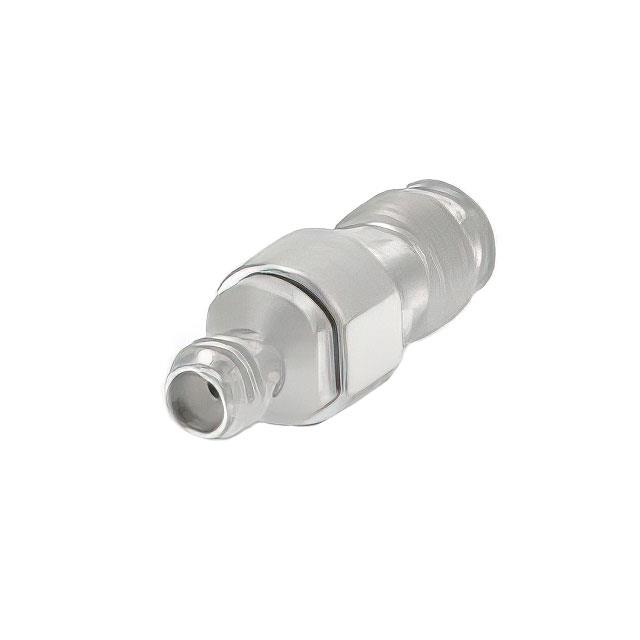

Specification	2385346-1

Adapter Series Size	1.35 mm, 1 mm
Adapter Type	Jack to Jack
Body Material	Stainless Steel
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Center Gender	Female
Conversion Type	Between Series
Convert From (Adapter End) Jack Size	1 mm
Convert From (Adapter End) Type	Female Socket
Convert To (Adapter End) Gender	Female Socket
Convert To (Adapter End) Type	1.35mm Jack
Dielectric Material	Polyetheretherketone (PEEK)
Fastening Type	Threaded
Frequency - Max	90 GHz
Impedance	50 Ohm
Mating Cycles	500 cycles
Mounting Type	Free Hanging (In-Line)
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-55 °C
Style	Straight

2385346 Series

Part	Center Contact Material	Mating Cycles	Body Material	Operating Temperature (Max)	Operating Temperature (Min)	Dielectric Material	Style	Center Gender	Adapter Series Size	Conversion Type	Frequency - Max	Fastening Type	Impedance	Center Contact Plating	Adapter Type	Convert From (Adapter End) Jack Size	Convert From (Adapter End) Type	Convert To (Adapter End) Type	Convert To (Adapter End) Gender	Mounting Type
TE Connectivity AMP Connectors 2385346-1	Beryllium Copper	500 cycles	Stainless Steel	125 °C	-55 °C	Polyetheretherketone (PEEK)	Straight	Female	1 mm 1.35 mm	Between Series	90 GHz	Threaded	50 Ohm	Gold	Jack to Jack	1 mm	Female Socket	1.35mm Jack	Female Socket	Free Hanging (In-Line)
