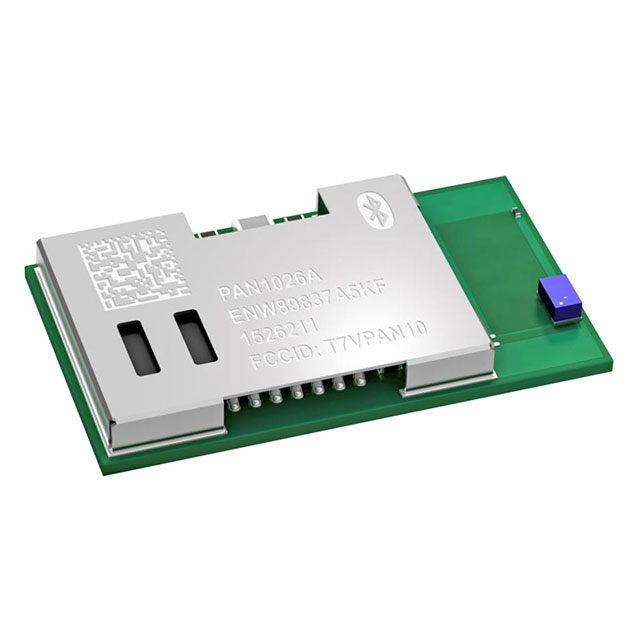

Specification	ENW-89837A5KF

Antenna Type	Chip, Integrated
Current - Receiving	62 mA
Current - Transmitting	62 mA
Frequency	2.4 GHz
Mounting Type	Surface Mount
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-40 °C
Package / Case	Module
Power - Output	4 dBm
Protocol	Bluetooth v4.2
RF Family/Standard	Bluetooth
Sensitivity	-88 dBm
Serial Interfaces	UART
Utilized IC / Part	TC35661
Voltage - Supply (Maximum)	3.6 V
Voltage - Supply (Minimum)	2.7 V

ENW-89 Series

Part	Current - Transmitting	Sensitivity	Operating Temperature (Min)	Operating Temperature (Max)	RF Family/Standard	Modulation	Antenna Type	Mounting Type	Utilized IC / Part	Protocol	Package / Case	Voltage - Supply (Maximum)	Voltage - Supply (Minimum)	Data Rate	Current - Receiving	Power - Output	Serial Interfaces	Frequency	Memory Type	Memory Size (SRAM)	Memory Size (Flash)
Panasonic Electronic Components ENW-89823C2KF	33 mA	-93 dBm	-40 °C	85 °C	Bluetooth	GFSK	Antenna Not Included	Surface Mount	CC2564	Bluetooth v4.0	Module	4.8 V	1.7 V	3 Mbps	33 mA	10 dBm	I2S UART	2.4 GHz
Panasonic Electronic Components ENW-89818C2JF		-93 dBm	-20 °C	70 °C	Bluetooth	DPSK DQPSK GFSK GMSK	Antenna Not Included	Surface Mount	Si1000	Bluetooth v2.1 +EDR Class 2	PCB Module	4.8 V	1.7 V	2.18 Mbps		10.5 dBm	I2C SPI UART	2.4 GHz
Panasonic Electronic Components ENW-89823A2JF	33 mA	-93 dBm	-20 °C	70 °C	Bluetooth	GFSK	Chip Integrated	Surface Mount	ESP32	Bluetooth v4.0	Module	4.8 V	1.7 V	3 Mbps	33 mA	10 dBm	I2S UART	2.4 GHz
Panasonic Electronic Components ENW-89827C2JF	33 mA	-93 dBm	-20 °C	70 °C	Bluetooth	GFSK	Antenna Not Included	Surface Mount	CC2567	Bluetooth v4.0	PCB Module	4.8 V	1.7 V	3 Mbps	33 mA	10 dBm	I2S UART	2.4 GHz
Panasonic Electronic Components ENW-89823A3KF	33 mA	-93 dBm	-40 °C	85 °C	Bluetooth	GFSK	Chip Integrated	Surface Mount	CC2564B	Bluetooth v4.0	Module	4.8 V	1.7 V	3 Mbps	33 mA	10 dBm	I2S UART	2.4 GHz
Panasonic Electronic Components ENW-89829C2KF	40 mA	-93 dBm	-40 °C	85 °C	Bluetooth	GFSK	Antenna Not Included	Surface Mount	Si1000	Bluetooth v2.1 +EDR	Module	4.8 V	1.7 V	3 Mbps	40 mA	10.5 dBm	I2S UART	2.4 GHz
Panasonic Electronic Components ENW-89827C2KF	33 mA	-93 dBm	-40 °C	85 °C	Bluetooth	GFSK	Antenna Not Included	Surface Mount		Bluetooth v4.0	Module	4.8 V	1.7 V	3 Mbps	33 mA	10 dBm	I2S UART	2.4 GHz
Panasonic Electronic Components ENW-89835A1KF	14.3 mA	-93 dBm	-40 °C	85 °C	Bluetooth		Chip Integrated	Surface Mount	CC2541	Bluetooth v4.0	Module	3.6 V	2 V	10 kbps		0 dBm	I2C SPI UART	2.4 GHz	Flash SRAM	8 kB	256 KB
Panasonic Electronic Components ENW-89827A2KF	33 mA	-93 dBm	-40 °C	85 °C	Bluetooth	GFSK	Chip Integrated	Surface Mount	CC2567	Bluetooth v4.0	Module	4.8 V	1.7 V	3 Mbps	33 mA	10 dBm	I2S UART	2.4 GHz
Panasonic Electronic Components ENW-89849A1KF	4.9 mA	-93 dBm	-40 °C	85 °C	Bluetooth		Chip Integrated	Surface Mount		Bluetooth v4.0 Dual Mode	Module	3.3 V	2.35 V		4.9 mA	0 dBm		2.4 GHz
