A6X30143337

Active

Siemens

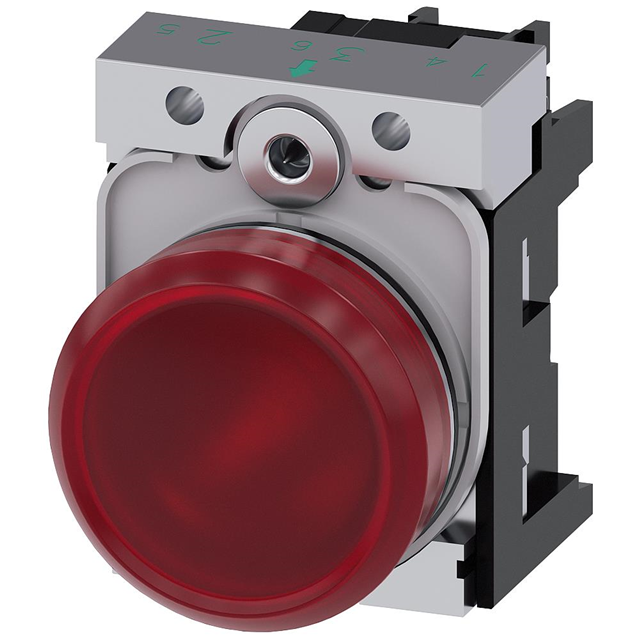

INDICATOR LIGHT. RED

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

A6X30143337

Active

Siemens

INDICATOR LIGHT. RED

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 80.47
		10	$ 69.12
		100	$ 65.66

Description

General part information

A6X30143 Series

LED Panel Indicator Red Diffused 24V Screw Terminal

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	A6X30143337	A6X30143 Series

Ingress Protection	NEMA 2, IP69K, IP20, IP69, NEMA 3R, NEMA 13, NEMA 4, NEMA 3, IP67, NEMA 4X, NEMA 12, IP66, NEMA 1	NEMA 2, IP69K, IP20, IP69, NEMA 3R, NEMA 13, NEMA 4, NEMA 3, IP67, NEMA 4X, NEMA 12, IP66, NEMA 1
Lamp Color	Red	White, Red, Green, Clear, Blue, Yellow, Amber
Lens Color	Red	White, Red, Green, Colorless, Blue, Yellow, Amber
Lens Size [diameter]	22 mm	22 - 30 mm
Lens Transparency	Diffused	Diffused, Clear
Millicandela Rating [Max]	1120 mcd	710 - 1800 mcd
Millicandela Rating [Min]	450 mcd	280 - 900 mcd
Panel Cutout Dimensions	0.88 in	0.88 in
Panel Cutout Dimensions	22.3 mm	22.3 mm
Panel Cutout Shape	Round	Round
Ratings	AC/DC	AC, AC/DC
Termination Style	Screw Terminal	Screw Terminal, Spring Terminal
Type	LED	LED
Voltage	24 V	24 - 230 V

A6X30143 Series

INDICATOR LIGHT. WHITE

...

Part	Millicandela Rating [Max]	Millicandela Rating [Min]	Panel Cutout Dimensions	Panel Cutout Dimensions	Type	Lamp Color	Ratings	Lens Transparency	Panel Cutout Shape	Lens Size [diameter]	Ingress Protection	Lens Color	Voltage	Termination Style
Siemens A6X30143177	1400 mcd	900 mcd	0.88 in	22.3 mm	LED	White	AC	Diffused	Round	22 mm	IP20, IP66, IP67, IP69, IP69K, NEMA 1, NEMA 12, NEMA 13, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 4X	White	230 V	Screw Terminal
Siemens A6X30143337	1120 mcd	450 mcd	0.88 in	22.3 mm	LED	Red	AC/DC	Diffused	Round	22 mm	IP20, IP66, IP67, IP69, IP69K, NEMA 1, NEMA 12, NEMA 13, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 4X	Red	24 V	Screw Terminal
Siemens A6X30143773	1800 mcd	900 mcd	0.88 in	22.3 mm	LED	Green	AC	Diffused	Round	22 mm	IP20, IP66, IP67, IP69, IP69K, NEMA 1, NEMA 12, NEMA 13, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 4X	Green	230 V	Screw Terminal
Siemens A6X30143385	1400 mcd	900 mcd	0.88 in	22.3 mm	LED	White	AC/DC	Diffused	Round	22 mm	IP20, IP66, IP67, IP69, IP69K, NEMA 1, NEMA 12, NEMA 13, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 4X	White	24 V	Screw Terminal
Siemens A6X30143821	1400 mcd	900 mcd	0.88 in	22.3 mm	LED	Clear	AC	Clear	Round	22 mm	IP20, IP66, IP67, IP69, IP69K, NEMA 1, NEMA 12, NEMA 13, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 4X	Colorless	230 V	Spring Terminal
Siemens A6X30143555	1400 mcd	900 mcd	0.88 in	22.3 mm	LED	Green	AC	Diffused	Round	22 mm	IP20, IP66, IP67, IP69, IP69K, NEMA 1, NEMA 12, NEMA 13, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 4X	Green	110 V	Screw Terminal
Siemens A6X30143784	710 mcd	280 mcd	0.88 in	22.3 mm	LED	Blue	AC	Diffused	Round	22 mm	IP20, IP66, IP67, IP69, IP69K, NEMA 1, NEMA 12, NEMA 13, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 4X	Blue	230 V	Screw Terminal
Siemens A6X30143794	710 mcd	280 mcd	0.88 in	22.3 mm	LED	Blue	AC	Diffused	Round	22 mm	IP20, IP66, IP67, IP69, IP69K, NEMA 1, NEMA 12, NEMA 13, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 4X	Blue	230 V	Spring Terminal
Siemens A6X30143793	710 mcd	280 mcd	0.88 in	22.3 mm	LED	Blue	AC	Diffused	Round	22 mm	IP20, IP66, IP67, IP69, IP69K, NEMA 1, NEMA 12, NEMA 13, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 4X	Blue	230 V	Spring Terminal
Siemens A6X30143785	710 mcd	280 mcd	0.88 in	22.3 mm	LED	Blue	AC	Diffused	Round	22 mm	IP20, IP66, IP67, IP69, IP69K, NEMA 1, NEMA 12, NEMA 13, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 4X	Blue	230 V	Screw Terminal
