L77SDC37SVF

Active

Amphenol ICC (Commercial Products)

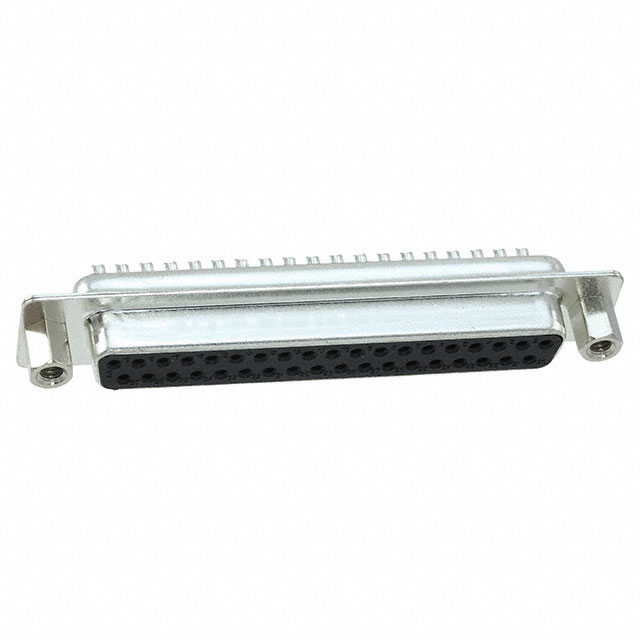

CONN D-SUB RCPT 37POS SLDR CUP

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	L77SDC37SVF

Color	Black
Connector Style	D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Form	Stamped
Contact Material	Brass
Contact Type	Signal
Current Rating (Amps)	3 A
Dielectric Material	Thermoplastic, Glass Filled
Flange Feature	Female Screwlock (4-40), Mating Side
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	37
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Shell Size, Connector Layout	4 (DC, C)
Voltage Rating	250 VDC
Wire Gauge	20 AWG

L77SDC37 Series

Part	Flange Feature	Contact Form	Current Rating (Amps)	Number of Positions	Shell Size, Connector Layout	Contact Finish Thickness	Contact Finish	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Material Flammability Rating	Contact Type	Connector Type	Dielectric Material	Contact Material	Connector Style	Wire Gauge	Color	Voltage Rating	Number of Rows	Termination	Backset Spacing	Backset Spacing	Contact Finish Thickness	Contact Finish Thickness
Amphenol ICC (Commercial Products) L77SDC37SVF	Female Screwlock (4-40) Mating Side	Stamped	3 A	37	4 (DC C)	Flash	Gold	105 ░C	-55 °C	Free Hanging (In-Line)	UL94 V-0	Signal	Receptacle Female Sockets	Thermoplastic Glass Filled	Brass	D-Sub	20 AWG	Black	250 VDC	2
Amphenol ICC (Commercial Products) L77SDC37S1ACH4R	4-40 Board Side	Stamped	3 A	37	4 (DC C)	Flash	Gold	125 °C	-55 °C	Through Hole Right Angle	UL94 V-0	Signal	Receptacle Female Sockets	Thermoplastic Glass Filled	Phosphor Bronze	D-Sub		Black	250 VDC	2	Solder	0.406 in	10.3 mm
Amphenol ICC (Commercial Products) L77SDC37SOL2VF	Female Screwlock (4-40) Mating Side	Stamped	3 A	37	4 (DC C)	Flash	Gold	125 °C	-55 °C	Through Hole	UL94 V-0	Signal	Receptacle Female Sockets	Thermoplastic Glass Filled	Phosphor Bronze	D-Sub		Black	250 VDC	2	Solder
Amphenol ICC (Commercial Products) L77SDC37SA4CH4RC309	4-40 Board Side	Stamped	3 A	37	4 (DC C)		Gold	125 °C	-55 °C	Through Hole Right Angle	UL94 V-0	Signal	Receptacle Female Sockets	Thermoplastic Glass Filled	Phosphor Bronze	D-Sub		Black	250 VDC	2	Solder	0.318 "	8.08 mm	0.76 Ám	30 Áin
Amphenol ICC (Commercial Products) L77SDC37SABCH4FC309	Female Screwlock (4-40) Mating Side	Stamped	3 A	37	4 (DC C)		Gold	125 °C	-55 °C	Through Hole Right Angle	UL94 V-0	Signal	Receptacle Female Sockets	Thermoplastic Glass Filled	Phosphor Bronze	D-Sub		Black	250 VDC	2	Solder	0.59 "	14.99 mm	0.76 Ám	30 Áin
Amphenol ICC (Commercial Products) L77SDC37S1ACH4FC309	Female Screwlock (4-40) Mating Side	Stamped	3 A	37	4 (DC C)		Gold	125 °C	-55 °C	Through Hole Right Angle	UL94 V-0	Signal	Receptacle Female Sockets	Thermoplastic Glass Filled	Phosphor Bronze	D-Sub		Black	250 VDC	2	Solder	0.406 in	10.3 mm	0.76 Ám	30 Áin
Amphenol ICC (Commercial Products) L77SDC37SA4CH4F	Female Screwlock (4-40) Mating Side	Stamped	3 A	37	4 (DC C)	Flash	Gold	125 °C	-55 °C	Through Hole Right Angle	UL94 V-0	Signal	Receptacle Female Sockets	Thermoplastic Glass Filled	Phosphor Bronze	D-Sub		Black	250 VDC	2	Solder	0.318 "	8.08 mm
Amphenol ICC (Commercial Products) L77SDC37SA4CH3R	Board Side (M3)	Stamped	3 A	37	4 (DC C)	Flash	Gold	125 °C	-55 °C	Through Hole Right Angle	UL94 V-0	Signal	Receptacle Female Sockets	Thermoplastic Glass Filled	Phosphor Bronze	D-Sub		Black	250 VDC	2	Solder	0.318 "	8.08 mm
Amphenol ICC (Commercial Products) L77SDC37S1ACO3R	Board Side (M3)	Stamped	3 A	37	4 (DC C)	Flash	Gold	125 °C	-55 °C	Through Hole Right Angle	UL94 V-0	Signal	Receptacle Female Sockets	Thermoplastic Glass Filled	Phosphor Bronze	D-Sub		Black	250 VDC	2	Solder
Amphenol ICC (Commercial Products) L77SDC37S1ACH3R	Board Side (M3)	Stamped	3 A	37	4 (DC C)	Flash	Gold	125 °C	-55 °C	Through Hole Right Angle	UL94 V-0	Signal	Receptacle Female Sockets	Thermoplastic Glass Filled	Phosphor Bronze	D-Sub		Black	250 VDC	2	Solder	0.406 in	10.3 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 3.61
		10	$ 3.28
		25	$ 3.11
		40	$ 3.03
		80	$ 2.89
		240	$ 2.53
		440	$ 2.46
		960	$ 2.09
		2400	$ 1.95

Description

General part information

L77SDC37 Series

37 Position D-Sub Receptacle, Female Sockets Connector

Documents

Technical documentation and resources

No documents available
