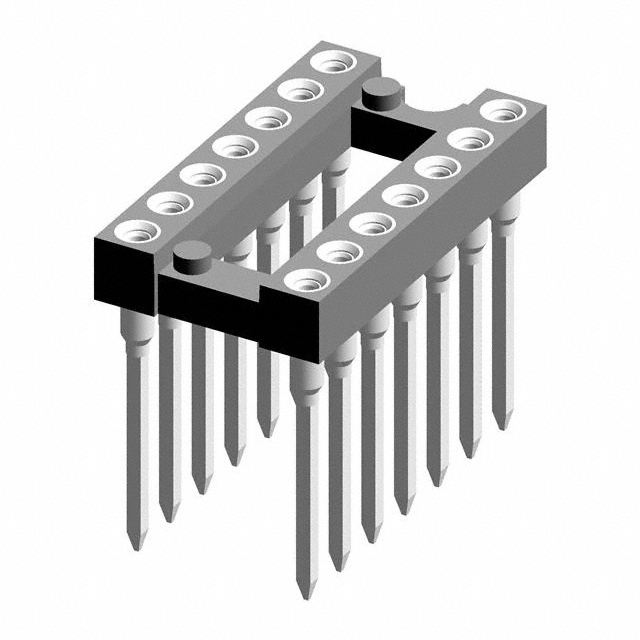

CONN IC DIP SOCKET 14POS GOLD

Deep-Dive with AI

Search across all available documentation for this part.

122-87-314-41-001101

Active

Preci-Dip

CONN IC DIP SOCKET 14POS GOLD

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	122-87-314-41-001101	122-87 Series

Contact Finish - Mating	Gold	Gold
Contact Finish - Post	Tin	Tin
Contact Finish Thickness - Mating	Flash	Flash
Contact Material - Mating	Beryllium Copper	Beryllium Copper
Contact Material - Post [custom]	Brass	Brass
Contact Resistance	10 mOhm	10 mOhm
Current Rating (Amps)	1 A	1 A
Features	Open Frame	Open Frame
Housing Material	Glass Filled, Polyester, Polycyclohexylenedimethylene Terephthalate (PCT)	Glass Filled, Polyester, Polycyclohexylenedimethylene Terephthalate (PCT)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole	Through Hole
Number of Positions or Pins (Grid)	14	14 - 36
Number of Positions or Pins (Grid)	-	2 x 16, 2 x 5
Number of Positions or Pins (Grid)	-	32
Number of Positions or Pins (Grid)	-	2
Number of Positions or Pins (Grid)	-	6
Number of Positions or Pins (Grid)	-	3
Number of Positions or Pins (Grid)	-	4
Number of Positions or Pins (Grid)	-	10
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-55 °C	-55 °C
Pitch - Mating	0.1 in	0.1 in
Pitch - Mating	2.54 mm	2.54 mm
Pitch - Post	2.54 mm	2.54 mm
Pitch - Post	0.1 in	0.1 in
Termination	Wire Wrap	Wire Wrap
Termination Post Length	9.4 mm	9.4 mm
Termination Post Length	0.37 in	0.37 in
Type	0.3 "	0.3 - 0.6 in
Type	7.62 mm	7.62 - 15.24 mm
Type	DIP	DIP

122-87 Series

CONN IC DIP SOCKET 32POS GOLD

Part	Contact Material - Mating	Pitch - Mating	Pitch - Mating	Pitch - Post	Pitch - Post	Termination	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]	Material Flammability Rating	Type	Type	Type	Features	Contact Resistance	Housing Material	Contact Finish Thickness - Mating	Contact Finish - Post	Termination Post Length	Termination Post Length	Mounting Type	Contact Finish - Mating	Contact Material - Post [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Number of Positions or Pins (Grid)	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]
Preci-Dip 122-87-432-41-001101	Beryllium Copper	0.1 in	2.54 mm	2.54 mm	0.1 in	Wire Wrap	2 x 16	32	UL94 V-0	0.4 in	10.16 mm	DIP	Open Frame	10 mOhm	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	Flash	Tin	9.4 mm	0.37 in	Through Hole	Gold	Brass	-55 °C	125 °C	1 A
Preci-Dip 122-87-636-41-001101	Beryllium Copper	0.1 in	2.54 mm	2.54 mm	0.1 in	Wire Wrap			UL94 V-0	0.6 in	15.24 mm	DIP	Open Frame	10 mOhm	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	Flash	Tin	9.4 mm	0.37 in	Through Hole	Gold	Brass	-55 °C	125 °C	1 A	36
Preci-Dip 122-87-316-41-001101	Beryllium Copper	0.1 in	2.54 mm	2.54 mm	0.1 in	Wire Wrap			UL94 V-0	0.3 "	7.62 mm	DIP	Open Frame	10 mOhm	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	Flash	Tin	9.4 mm	0.37 in	Through Hole	Gold	Brass	-55 °C	125 °C	1 A	16
Preci-Dip 122-87-322-41-001101	Beryllium Copper	0.1 in	2.54 mm	2.54 mm	0.1 in	Wire Wrap			UL94 V-0	0.3 "	7.62 mm	DIP	Open Frame	10 mOhm	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	Flash	Tin	9.4 mm	0.37 in	Through Hole	Gold	Brass	-55 °C	125 °C	1 A	22
Preci-Dip 122-87-632-41-001101	Beryllium Copper	0.1 in	2.54 mm	2.54 mm	0.1 in	Wire Wrap	2 x 16	32	UL94 V-0	0.6 in	15.24 mm	DIP	Open Frame	10 mOhm	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	Flash	Tin	9.4 mm	0.37 in	Through Hole	Gold	Brass	-55 °C	125 °C	1 A
Preci-Dip 122-87-306-41-001101	Beryllium Copper	0.1 in	2.54 mm	2.54 mm	0.1 in	Wire Wrap			UL94 V-0	0.3 "	7.62 mm	DIP	Open Frame	10 mOhm	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	Flash	Tin	9.4 mm	0.37 in	Through Hole	Gold	Brass	-55 °C	125 °C	1 A		2	6	3
Preci-Dip 122-87-304-41-001101	Beryllium Copper	0.1 in	2.54 mm	2.54 mm	0.1 in	Wire Wrap			UL94 V-0	0.3 "	7.62 mm	DIP	Open Frame	10 mOhm	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	Flash	Tin	9.4 mm	0.37 in	Through Hole	Gold	Brass	-55 °C	125 °C	1 A					4
Preci-Dip 122-87-314-41-001101	Beryllium Copper	0.1 in	2.54 mm	2.54 mm	0.1 in	Wire Wrap			UL94 V-0	0.3 "	7.62 mm	DIP	Open Frame	10 mOhm	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	Flash	Tin	9.4 mm	0.37 in	Through Hole	Gold	Brass	-55 °C	125 °C	1 A	14
Preci-Dip 122-87-310-41-001101	Beryllium Copper	0.1 in	2.54 mm	2.54 mm	0.1 in	Wire Wrap	2 x 5		UL94 V-0	0.3 "	7.62 mm	DIP	Open Frame	10 mOhm	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	Flash	Tin	9.4 mm	0.37 in	Through Hole	Gold	Brass	-55 °C	125 °C	1 A						10
Preci-Dip 122-87-420-41-001101	Beryllium Copper	0.1 in	2.54 mm	2.54 mm	0.1 in	Wire Wrap			UL94 V-0	0.4 in	10.16 mm	DIP	Open Frame	10 mOhm	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	Flash	Tin	9.4 mm	0.37 in	Through Hole	Gold	Brass	-55 °C	125 °C	1 A	20

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1440	$ 1.22

Description

General part information

122-87 Series

14 (2 x 7) Pos DIP, 0.3" (7.62mm) Row Spacing Socket Gold Through Hole
