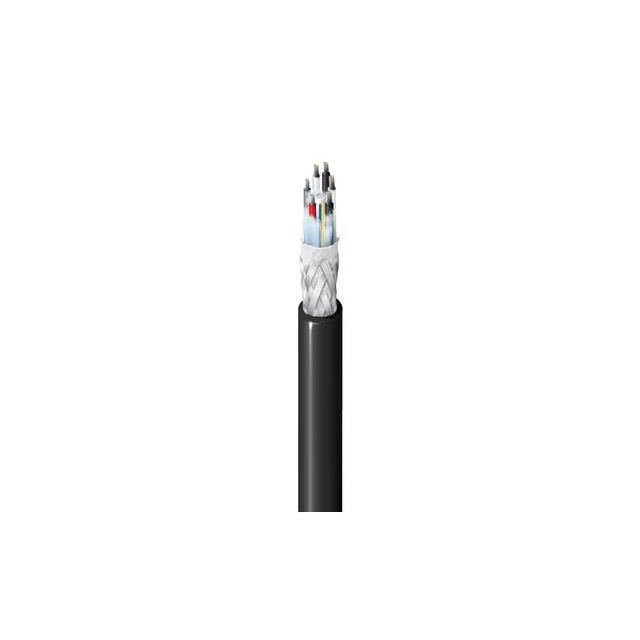

2824RW 0051000

Active

Belden Inc.

COMPOSITE CAMERA CABLE RSR

Search across all available documentation for this part.

Active

Belden Inc.

COMPOSITE CAMERA CABLE RSR

Technical Specifications

Parameters and characteristics for this part

Specification	2824RW 0051000

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	7, 19
Conductor Strand [custom]	32, 30
Features	Drain Wire, Water-Blocked
Jacket (Insulation) Material	Chlorinated Polyethylene (CPE)
Jacket Color	Green
Length	1000 ft
Length	304.8 m
Number of Conductors	30
Number of Conductors [custom]	6
Number of Conductors [custom]	6
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-40 °C
Ratings	UL Style CMR
Shield Coverage	100 %
Shield Material	Polyester, Aluminum
Shield Type	Foil
Voltage	300 V
Wire Gauge	24 AWG, 18 AWG

Part	Shield Type	Conductor Material	Voltage	Wire Gauge	Conductor Insulation	Jacket Color	Cable Type	Shield Material	Operating Temperature [Min]	Operating Temperature [Max]	Conductor Strand [custom]	Conductor Strand [custom]	Jacket (Insulation) Material	Shield Coverage	Number of Conductors	Number of Conductors [custom]	Number of Conductors [custom]	Features	Length	Length	Ratings
Belden Inc. 2824RW 0051000	Foil	Copper Tinned	300 V	18 AWG 24 AWG	Poly-Vinyl Chloride (PVC)	Green	Multi-Conductor	Aluminum Polyester	-40 °C	70 °C	7 19	30 32	Chlorinated Polyethylene (CPE)	100 %	30	6	6	Drain Wire Water-Blocked	1000 ft	304.8 m	UL Style CMR

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 5.70

General part information

30 (6 Quad+6 Fiber) Conductor Multi-Conductor Cable Green 18 AWG, 24 AWG Foil 1000.0' (304.8m)
