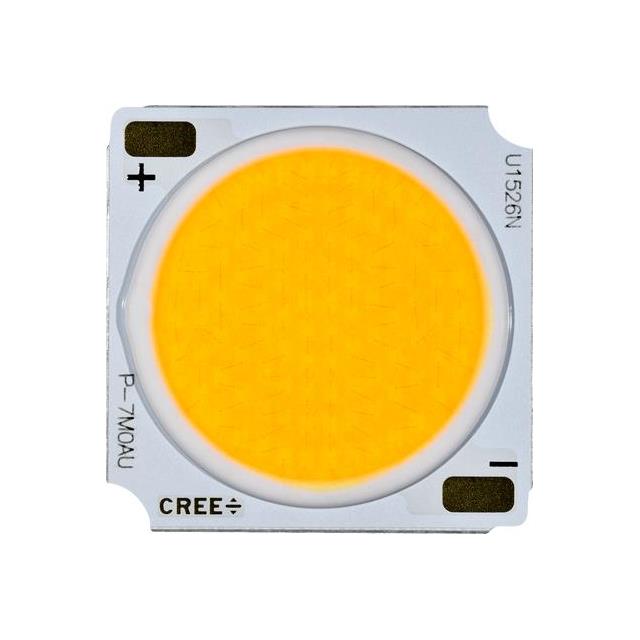

CMU1526-R090-00PN0Z0A40H

Active

Cree LED

XLAMP CMU LED WHITE PRO9

Deep-Dive with AI

Search across all available documentation for this part.

CMU1526-R090-00PN0Z0A40H

Active

Cree LED

XLAMP CMU LED WHITE PRO9

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CMU1526-R090-00PN0Z0A40H

CCT (K)	4000 K
Color	Neutral, White
Configuration	Square
CRI (Color Rendering Index)	95
Current - Max [Max]	1.92 A
Current - Test	720 mA
Height [z]	1.5 mm
Lens Type	Flat
Light Emitting Surface (LES) [diameter]	14.5 mm
Size / Dimension [x]	19 mm
Size / Dimension [y]	19 mm
Temperature - Test	85 °C
Type	Chip On Board (COB)
Viewing Angle	115 °
Voltage - Forward (Vf) (Typ)	34.4 V

CMU1526 Series

...

Part	Temperature - Test	Voltage - Forward (Vf) (Typ)	Configuration	Height [z]	Lens Type	Current - Max [Max]	Current - Test	Size / Dimension [y]	Size / Dimension [x]	Light Emitting Surface (LES) [diameter]	CCT (K)	Color	Type	Viewing Angle	CRI (Color Rendering Index)	Luminous Flux @ Current/Temperature	Lumens/Watt @ Current - Test
Cree LED CMU1526-R090-00PN0Z0A35H	85 °C	34.4 V	Square	1.5 mm	Flat	1.92 A	720 mA	19 mm	19 mm	14.5 mm	3500 K	Warm White	Chip On Board (COB)	115 °	95
Cree LED CMU1526-0000-000N0U0A40G	85 °C	33.7 V	Square	1.5 mm	Flat	1.92 A	720 mA	19 mm	19 mm	14.5 mm	4000 K	Neutral White	Chip On Board (COB)	115 °	90	3363 lm	139 lm/W
Cree LED CMU1526-R090-000N0U0A30H	85 °C	34.4 V	Square	1.5 mm	Flat	1.92 A	720 mA	19 mm	19 mm	14.5 mm	3000 K	Warm White	Chip On Board (COB)	115 °	90	3399 lm	137 lm/W
Cree LED CMU1526-0000-000N0Z0A40H	85 °C	33.7 V	Square	1.5 mm	Flat	1.92 A	720 mA	19 mm	19 mm	14.5 mm	4000 K	Neutral White	Chip On Board (COB)	115 °	95	3038 lm	125 lm/W
Cree LED CMU1526-R090-00PN0Z0A40H	85 °C	34.4 V	Square	1.5 mm	Flat	1.92 A	720 mA	19 mm	19 mm	14.5 mm	4000 K	Neutral White	Chip On Board (COB)	115 °	95
Cree LED CMU1526-0000-000N0H0A50G	85 °C	33.7 V	Square	1.5 mm	Flat	1.92 A	720 mA	19 mm	19 mm	14.5 mm		Cool White	Chip On Board (COB)	115 °	80	3954 lm	163 lm/W
Cree LED CMU1526-R090-000N0B0A40E	85 °C	34.4 V	Square	1.5 mm	Flat	1.92 A	720 mA	19 mm	19 mm	14.5 mm	4000 K	Neutral White	Chip On Board (COB)	115 °	70	4356 lm	176 lm/W
Cree LED CMU1526-0000-000N0B0A40E	85 °C	33.7 V	Square	1.5 mm	Flat	1.92 A	720 mA	19 mm	19 mm	14.5 mm	4000 K	Neutral White	Chip On Board (COB)	115 °	70	4287 lm	177 lm/W
Cree LED CMU1526-0000-000N0U0A27G	85 °C	33.7 V	Square	1.5 mm	Flat	1.92 A	720 mA	19 mm	19 mm	14.5 mm	2700 K	Warm White	Chip On Board (COB)	115 °	90	3187 lm	131 lm/W
Cree LED CMU1526-R090-000N0U0A35H	85 °C	34.4 V	Square	1.5 mm	Flat	1.92 A	720 mA	19 mm	19 mm	14.5 mm	3500 K	Warm White	Chip On Board (COB)	115 °	90	3447 lm	139 lm/W

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	90	$ 10.60

Description

General part information

CMU1526 Series

LED Lighting COBs Engines Modules Chip On Board (COB) XLamp® CMU1526 White, Neutral Square

Documents

Technical documentation and resources

No documents available
