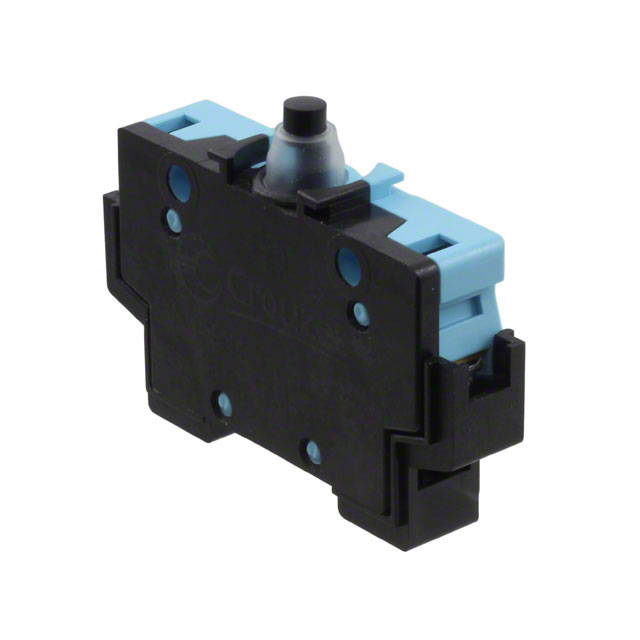

83240030

Active

Crouzet

SWITCH SNAP ACTION DPST 6A 250V

Search across all available documentation for this part.

Active

Crouzet

SWITCH SNAP ACTION DPST 6A 250V

Technical Specifications

Parameters and characteristics for this part

SWITCH SNAP ACTION DPST 6A 250V

Part	Mechanical Life	Mounting Type	Ingress Protection	Actuator Type	Circuit	Voltage Rating - DC	Operating Position	Operating Position	Operating Force	Current Rating (Amps)	Voltage Rating - AC	Switch Function	Differential Travel	Differential Travel	Operating Temperature [Max]	Operating Temperature [Min]	Termination Style
Crouzet 83240030	10000000 Cycles	Chassis Mount	IP40	Round (Pin Plunger)	DPST-NO/NC	250 V	6.6 mm	0.26 in	459 gf	6 A, 600 mA	250 V	Off-Mom, On-Mom	1 mm	0.04 in	85 °C	-50 °C	Screw Terminal

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10	$ 53.62

General part information

Switch DPST-NO/NC Chassis Mount
