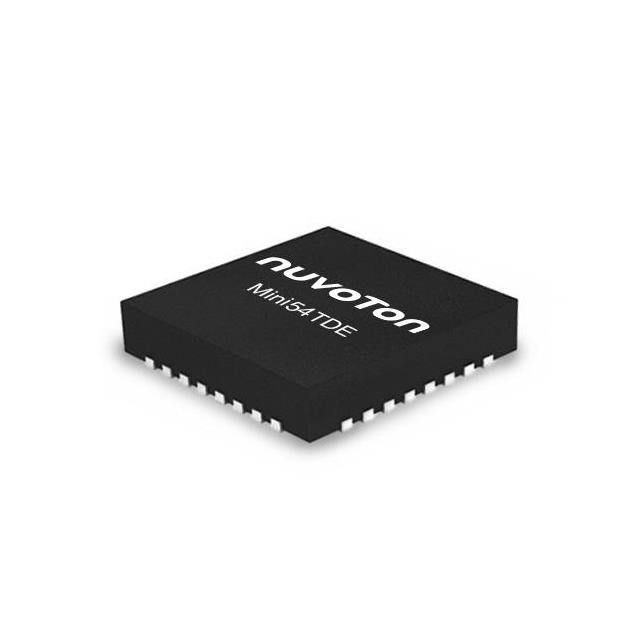

MINI54TDE

Active

Nuvoton Technology Corporation

IC MCU 32BIT 16KB FLASH 33QFN

Search across all available documentation for this part.

Active

Nuvoton Technology Corporation

IC MCU 32BIT 16KB FLASH 33QFN

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	MINI54TDE	MINI54 Series

Connectivity	IrDA, UART/USART, I2C, SPI	IrDA, UART/USART, I2C, SPI
Core Processor	ARM® Cortex®-M0	ARM® Cortex®-M0
Core Size	32-Bit Single-Core	32-Bit Single-Core
Data Converters [custom]	8	4 - 8
Data Converters [custom]	10	10
Mounting Type	Surface Mount	Surface Mount
Number of I/O	29	17 - 29
Operating Temperature [Max]	105 °C	85 - 105 °C
Operating Temperature [Min]	-40 °C	-40 °C
Oscillator Type	Internal	Internal
Package / Case	-	4.4 mm
Package / Case	-	20-TSSOP
Package / Case	-	0.173 in
Peripherals	PWM, LVD, WDT, Brown-out Detect/Reset, POR	PWM, LVD, WDT, Brown-out Detect/Reset, POR
Program Memory Size	16 KB	16 KB
Program Memory Type	FLASH	FLASH
RAM Size	2K x 8	2K x 8
Speed	24 MHz	24 MHz
Supplier Device Package	33-QFN (4x4)	20-TSSOP, 33-QFN (4x4)
Voltage - Supply (Vcc/Vdd) [Max]	5.5 V	5.5 V
Voltage - Supply (Vcc/Vdd) [Min]	2.5 V	2.5 V

IC MCU 32BIT 16KB FLASH 20TSSOP

Part	Core Size	Oscillator Type	Connectivity	Speed	RAM Size	Program Memory Size	Package / Case [y]	Package / Case	Package / Case [x]	Supplier Device Package	Core Processor	Peripherals	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Supply (Vcc/Vdd) [Min]	Voltage - Supply (Vcc/Vdd) [Max]	Number of I/O	Data Converters [custom]	Data Converters [custom]	Mounting Type	Program Memory Type
Nuvoton Technology Corporation MINI54FDE	32-Bit Single-Core	Internal	I2C, IrDA, SPI, UART/USART	24 MHz	2K x 8	16 KB	4.4 mm	20-TSSOP	0.173 in	20-TSSOP	ARM® Cortex®-M0	Brown-out Detect/Reset, LVD, POR, PWM, WDT	105 °C	-40 °C	2.5 V	5.5 V	17	10	4	Surface Mount	FLASH
Nuvoton Technology Corporation MINI54ZAN	32-Bit Single-Core	Internal	I2C, IrDA, SPI, UART/USART	24 MHz	2K x 8	16 KB					ARM® Cortex®-M0		85 °C	-40 °C	2.5 V	5.5 V	29	10	8	Surface Mount	FLASH
Nuvoton Technology Corporation MINI54TDE	32-Bit Single-Core	Internal	I2C, IrDA, SPI, UART/USART	24 MHz	2K x 8	16 KB				33-QFN (4x4)	ARM® Cortex®-M0	Brown-out Detect/Reset, LVD, POR, PWM, WDT	105 °C	-40 °C	2.5 V	5.5 V	29	10	8	Surface Mount	FLASH

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	490	$ 1.43

General part information

ARM® Cortex®-M0 NuMicro Mini51™ DE Microcontroller IC 32-Bit Single-Core 24MHz 16KB (16K x 8) FLASH 33-QFN (4x4)
