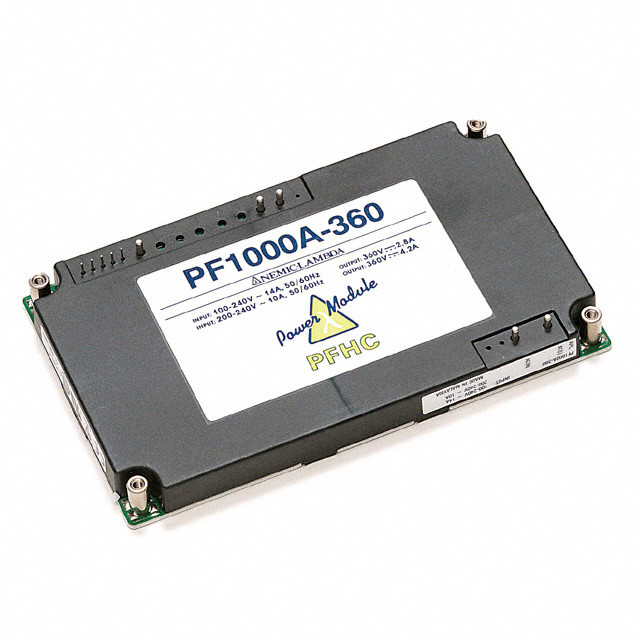

PF1000A-360
TDK-LAMBDA
AC/DC CONVERTER 360V 1000W
Deep-Dive with AI
Search across all available documentation for this part.
PF1000A-360
TDK-LAMBDA
AC/DC CONVERTER 360V 1000W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | PF1000A-360 |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | cULus, CE |
| Current - Output (Max) | 2.8 A |
| Efficiency | 95 % |
| Features | Universal Input |
| Line Regulation | 5 V |
| Load Regulation | 10 V |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 100 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 10-DIP Module |
| Power (Watts) | 1 kW |
| Size / Dimension [x] | 4.6 " |
| Size / Dimension [x] | 116.8 mm |
| Size / Dimension [y] | 2.4 " |
| Size / Dimension [y] | 61 mm |
| Size / Dimension [z] | 0.5 in |
| Size / Dimension [z] | 12.7 mm |
| Standard Number | 60950-1, 62368-1 |
| Type | Enclosed |
| Voltage - Input [Max] | 265 VAC |
| Voltage - Input [Min] | 85 VAC |
| Voltage - Output 1 | 360 V |
| Weight | 300.28 g |
| Weight | 0.662 lb |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 242.57 | |
| 10 | $ 218.62 | |||
| 25 | $ 216.45 | |||
Description
General part information
PF1000A Series
Enclosed AC DC Converters 1 Output 360V 2.8A 85 ~ 265 VAC Input
