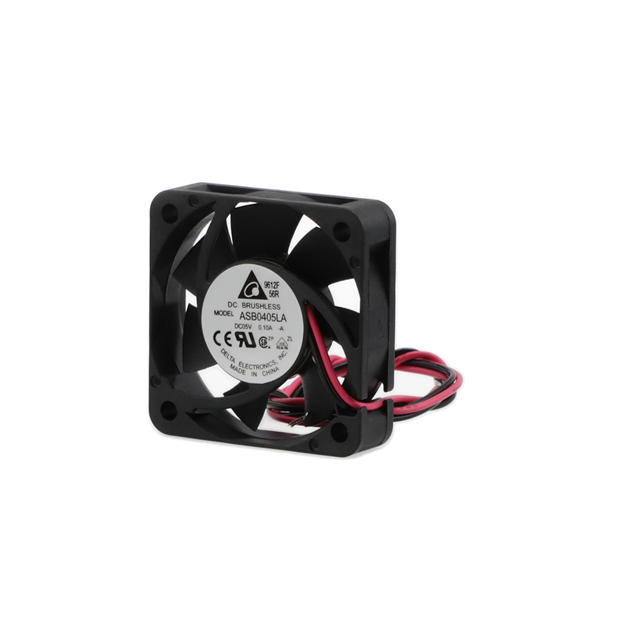

ASB0405LA-A

Obsolete

Delta Electronics

FAN AXIAL 40X10MM 5VDC WIRE

Search across all available documentation for this part.

Obsolete

Delta Electronics

FAN AXIAL 40X10MM 5VDC WIRE

Technical Specifications

Parameters and characteristics for this part

Part	Material - Blade	Voltage Range [Min]	Voltage Range [Max]	Width [y]	Size / Dimension [z]	Size / Dimension	Size / Dimension [x]	Weight	Weight	Bearing Type	Voltage - Rated	RPM	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Lifetime @ Temp.	Air Flow	Air Flow	Fan Type	Approval Agency	Current Rating (Amps)	Termination	Power (Watts)	Static Pressure	Static Pressure	Material - Frame	Noise	Features	Operating Temperature [Max]
Delta Electronics ASB0405LA-A	Plastic	4 VDC	5.5 V	10 mm	40 mm	Square	40 mm	13.61 g	0.03 lb	Sleeve	5 V	4000 RPM	70 °C	70 °C	-10 °C	-10 °C	30000 Hrs	0.123 m³/min	4.4 CFM	Tubeaxial	CE CSA UL VDE	50 mA	2 Wire Leads	250 mW	17 Pa	0.068 in H2O	Plastic
Delta Electronics ASB0405HHA-AF00	Plastic	4.5 V	5.5 V	10 mm	40 mm	Square	40 mm	13.61 g	0.03 lb	Sleeve	5 V	7000 RPM	70 °C	70 °C	-10 °C	-10 °C	30000 Hrs	0.23 mł/min	8.2 CFM	Tubeaxial	CE CSA UL VDE		3 Wire Leads	0.65 W	47.3 Pa	0.19 in H2O	Plastic	29.5 dB(A)	Locked Rotor Protection Speed Sensor (Tach)
Delta Electronics ASB0405SA-00	Plastic	4.5 V	5.5 V	10.4 mm	40 mm	Square	40 mm	13.61 g	0.03 lb	Sleeve	5 V	8000 RPM		90 °C	-20 °C	-20 C	80000 Hrs	0.249 mł/min	8.9 CFM	Tubeaxial		0.18 A	3 Wire Leads	0.9 W	58 Pa	0.233 in H2O	Plastic	33.5 dB(A)	Locked Rotor Protection Speed Sensor (Tach)	90 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Fan Tubeaxial 5VDC Square - 40mm L x 40mm H Sleeve 4.4 CFM (0.123m³/min) 2 Wire Leads
