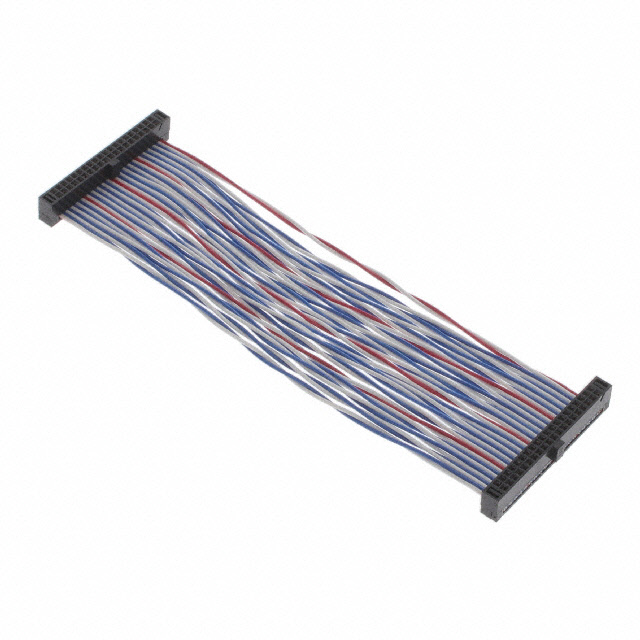

FFTP-20-D-03.85-01-N

Active

Samtec Inc.

.050 X .050 C/L TWISTED PAIR FEM

Search across all available documentation for this part.

Active

Samtec Inc.

.050 X .050 C/L TWISTED PAIR FEM

Technical Specifications

Parameters and characteristics for this part

Part	Length	Length	Length	Shielding	Features	Cable Termination	Contact Finish Thickness	Contact Finish Thickness	Number of Rows	Pitch - Cable [x]	Pitch - Cable	Contact Finish	Number of Positions	Color	Connector Type	Pitch - Connector	Pitch - Connector	Length [x]	Length [x]
Samtec Inc. FFTP-20-D-03.85-01-N	3.85 "	0.321 '	97.79 mm	Unshielded	Polarizing Key	IDC	10 Áin	0.25 Ám	2	0.025 in	0.64 mm	Gold	40	Multiple Twisted Pair (Round)	Socket to Socket	0.05 in	1.27 mm
Samtec Inc. FFTP-20-D-08.77-01-S-N	8.77 in	0.731 ft	222.76 mm	Unshielded	Polarizing Key	IDC	10 Áin	0.25 Ám	2	0.025 in	0.64 mm	Gold	40	Multiple Twisted Pair (Round)	Socket to Socket	0.05 in	1.27 mm
Samtec Inc. FFTP-20-D-18.00-01-N				Unshielded	Polarizing Key	IDC	10 Áin	0.25 Ám	2	0.025 in	0.64 mm	Gold	40	Multiple Twisted Pair (Round)	Socket to Socket	0.05 in	1.27 mm	457.2 mm	1.5 ft
Samtec Inc. FFTP-20-D-08.77-01-F-N	8.77 in	0.731 ft	222.76 mm	Unshielded	Polarizing Key	IDC	10 Áin	0.25 Ám	2	0.025 in	0.64 mm	Gold	40	Multiple Twisted Pair (Round)	Socket to Socket	0.05 in	1.27 mm
Samtec Inc. FFTP-20-D-18.00-01-N-R				Unshielded	Polarizing Key	IDC	10 Áin	0.25 Ám	2	0.025 in	0.64 mm	Gold	40	Multiple Twisted Pair (Round)	Socket to Socket Reversed	0.05 in	1.27 mm	457.2 mm	1.5 ft

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

40 Position Cable Assembly Rectangular Socket to Socket 0.321' (97.79mm, 3.85")
