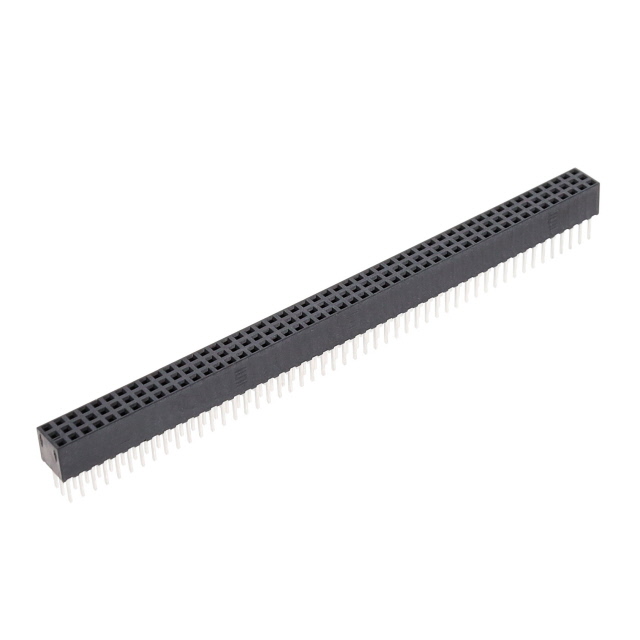

SQT-150-03-L-T

Active

Samtec Inc.

CONN RCPT 150POS 0.079 GOLD PCB

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsCost Effective Rugged PCB Sockets, 2.00mm pitch SQT Datasheet +2

SQT-150-03-L-T

Active

Samtec Inc.

CONN RCPT 150POS 0.079 GOLD PCB

Deep-Dive with AI

DocumentsCost Effective Rugged PCB Sockets, 2.00mm pitch SQT Datasheet +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SQT-150-03-L-T

Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Length - Post	5.28 mm
Contact Length - Post	0.208 in
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Forked
Current Rating (Amps)	5.1 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	6.35 mm
Insulation Height	0.25 in
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	150
Number of Positions Loaded	All
Number of Rows	3
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Row Spacing - Mating	0.079 in
Row Spacing - Mating	2 mm
Style	Board to Board, Cable
Termination	Solder

SQT-150 Series

Part	Insulation Color	Number of Rows	Contact Finish - Post	Mounting Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Material	Termination	Number of Positions Loaded	Connector Type	Insulation Height [custom]	Insulation Height [custom]	Contact Finish - Mating	Row Spacing - Mating	Row Spacing - Mating	Contact Type	Fastening Type	Pitch - Mating [x]	Pitch - Mating [x]	Contact Shape	Material Flammability Rating	Contact Material	Contact Length - Post	Contact Length - Post	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Style	Contact Finish Thickness - Mating	Insulation Height	Insulation Height	Contact Finish Thickness - Post	Contact Finish Thickness - Post
Samtec Inc. SQT-150-01-S-D-RA	Black	2	Tin	Through Hole Right Angle	30 Áin	0.76 Ám	Liquid Crystal Polymer (LCP)	Solder	All	Receptacle	0.157 in	4 mm	Gold	0.079 in	2 mm	Forked	Push-Pull	0.079 in	2 mm	Square	UL94 V-0	Phosphor Bronze	0.09 "	2.29 mm	100	-55 °C	125 °C	5.1 A	Board to Board Cable
Samtec Inc. SQT-150-02-F-Q	Black		Tin	Through Hole			Liquid Crystal Polymer (LCP)	Solder	All	Receptacle			Gold	0.079 in	2 mm	Forked	Push-Pull	0.079 in	2 mm	Square	UL94 V-0	Phosphor Bronze	0.6 in	15.24 mm		-55 °C	125 °C	5.1 A	Board to Board Cable	Flash	6.35 mm	0.25 in
Samtec Inc. SQT-150-03-F-S	Black	1	Tin	Through Hole			Liquid Crystal Polymer (LCP)	Solder	All	Receptacle			Gold			Forked	Push-Pull	0.079 in	2 mm	Square	UL94 V-0	Phosphor Bronze	0.208 in	5.28 mm	50	-55 °C	125 °C	5.1 A	Board to Board Cable	Flash	6.35 mm	0.25 in
Samtec Inc. SQT-150-03-L-T	Black	3	Tin	Through Hole	10 çin	0.25 çm	Liquid Crystal Polymer (LCP)	Solder	All	Receptacle			Gold	0.079 in	2 mm	Forked	Push-Pull	0.079 in	2 mm	Square	UL94 V-0	Phosphor Bronze	0.208 in	5.28 mm	150	-55 °C	125 °C	5.1 A	Board to Board Cable		6.35 mm	0.25 in
Samtec Inc. SQT-150-03-L-S	Black	1	Tin	Through Hole	10 çin	0.25 çm	Liquid Crystal Polymer (LCP)	Solder	All	Receptacle			Gold			Forked	Push-Pull	0.079 in	2 mm	Square	UL94 V-0	Phosphor Bronze	0.208 in	5.28 mm	50	-55 °C	125 °C	5.1 A	Board to Board Cable		6.35 mm	0.25 in
Samtec Inc. SQT-150-02-L-T	Black	3	Tin	Through Hole	10 çin	0.25 çm	Liquid Crystal Polymer (LCP)	Solder	All	Receptacle			Gold	0.079 in	2 mm	Forked	Push-Pull	0.079 in	2 mm	Square	UL94 V-0	Phosphor Bronze	0.6 in	15.24 mm	150	-55 °C	125 °C	5.1 A	Board to Board Cable		6.35 mm	0.25 in
Samtec Inc. SQT-150-03-S-5	Black	5	Tin	Through Hole	30 Áin	0.76 Ám	Liquid Crystal Polymer (LCP)	Solder	All	Receptacle			Gold	0.079 in	2 mm	Forked	Push-Pull	0.079 in	2 mm	Square	UL94 V-0	Phosphor Bronze	0.208 in	5.28 mm	250	-55 °C	125 °C	5.1 A	Board to Board Cable		6.35 mm	0.25 in
Samtec Inc. SQT-150-02-G-Q	Black		Gold	Through Hole	20 µin	0.51 µm	Liquid Crystal Polymer (LCP)	Solder	All	Receptacle			Gold	0.079 in	2 mm	Forked	Push-Pull	0.079 in	2 mm	Square	UL94 V-0	Phosphor Bronze	0.6 in	15.24 mm		-55 °C	125 °C	5.1 A	Board to Board Cable		6.35 mm	0.25 in	3 µin	0.076 µm
Samtec Inc. SQT-150-01-FM-T	Black	3	Tin	Through Hole			Liquid Crystal Polymer (LCP)	Solder	All	Receptacle			Gold	0.079 in	2 mm	Forked	Push-Pull	0.079 in	2 mm	Square	UL94 V-0	Phosphor Bronze	0.09 "	2.29 mm	150	-55 °C	125 °C	5.1 A	Board to Board Cable	Flash	6.35 mm	0.25 in
Samtec Inc. SQT-150-03-L-5	Black	5	Tin	Through Hole	10 çin	0.25 çm	Liquid Crystal Polymer (LCP)	Solder	All	Receptacle			Gold	0.079 in	2 mm	Forked	Push-Pull	0.079 in	2 mm	Square	UL94 V-0	Phosphor Bronze	0.208 in	5.28 mm	250	-55 °C	125 °C	5.1 A	Board to Board Cable		6.35 mm	0.25 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 26.00
		10	$ 24.62
		25	$ 23.69
		50	$ 23.11
		100	$ 21.55
