39116 1895000
ActiveBelden Inc.

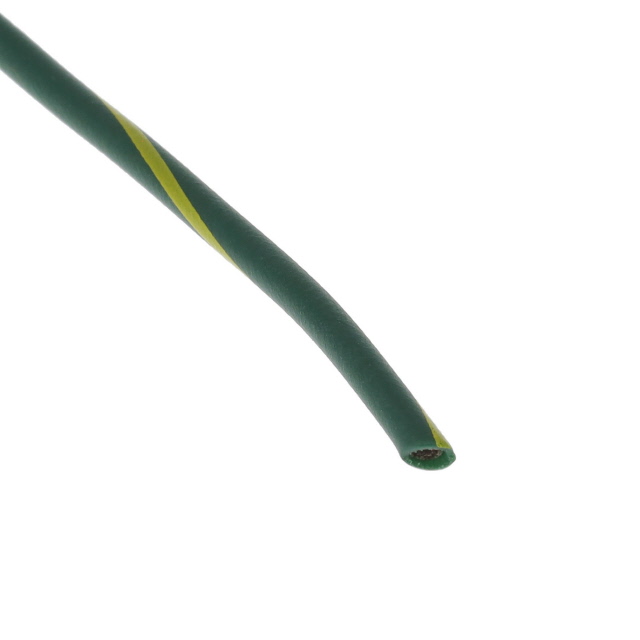

HOOK-UP STRND 16AWG GRN/YW
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
39116 1895000
ActiveBelden Inc.
HOOK-UP STRND 16AWG GRN/YW
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 39116 1895000 |
|---|---|
| Cable Type | Hook-Up |
| Conductor Material | Copper, Tinned |
| Conductor Strand [custom] | 30 AWG |
| Conductor Strand [custom] | 26 |
| Jacket (Insulation) Diameter [diameter] | 0.083 " |
| Jacket (Insulation) Diameter [diameter] | 2.11 mm |
| Jacket (Insulation) Material | Polyphenylene Oxide (PPO) |
| Jacket (Insulation) Thickness | 0.012 in |
| Jacket (Insulation) Thickness | 0.3 mm |
| Jacket Color | Green, Yellow Stripe |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Ratings | UL Style 11028 |
| Voltage | 600 V |
| Wire Gauge | 16 AWG |
39116 Series
| Part | Ratings | Conductor Material | Voltage | Wire Gauge | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Jacket (Insulation) Material | Jacket Color | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Operating Temperature [Min] | Operating Temperature [Max] | Cable Type | Conductor Strand [custom] | Conductor Strand [custom] | Length | Length | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Belden Inc. | UL Style 11028 | Copper Tinned | 600 V | 16 AWG | 0.012 in | 0.3 mm | Polyphenylene Oxide (PPO) | Black | 0.083 " | 2.11 mm | -40 °C | 105 ░C | Hook-Up | 30 AWG | 26 | ||||
Belden Inc. | UL Style 11028 | Copper Tinned | 600 V | 16 AWG | 0.012 in | 0.3 mm | Polyphenylene Oxide (PPO) | Green Yellow Stripe | 0.083 " | 2.11 mm | -40 °C | 105 ░C | Hook-Up | 30 AWG | 26 | ||||
Belden Inc. | UL Style 11028 | Copper Tinned | 600 V | 16 AWG | 0.012 in | 0.3 mm | Polyphenylene Oxide (PPO) | Yellow | 0.083 " | 2.11 mm | -40 °C | 105 ░C | Hook-Up | 30 AWG | 26 | 1000 ft | 304.8 m | ||
Belden Inc. | UL Style 11028 | Copper Tinned | 600 V | 16 AWG | 0.012 in | 0.3 mm | Polyphenylene Oxide (PPO) | Gray | 0.083 " | 2.11 mm | -40 °C | 105 ░C | Hook-Up | 30 AWG | 26 | 30.5 m | 100 ft | ||
Belden Inc. | UL Style 11028 | Copper Tinned | 600 V | 16 AWG | 0.012 in | 0.3 mm | Polyphenylene Oxide (PPO) | Red | 0.083 " | 2.11 mm | -40 °C | 105 ░C | Hook-Up | 30 AWG | 26 | 1000 ft | 304.8 m | ||
Belden Inc. | UL Style 11028 | Copper Tinned | 600 V | 16 AWG | 0.012 in | 0.3 mm | Polyphenylene Oxide (PPO) | Brown | 0.083 " | 2.11 mm | -40 °C | 105 ░C | Hook-Up | 30 AWG | 26 | 30.5 m | 100 ft | ||
Belden Inc. | UL Style 11028 | Copper Tinned | 600 V | 16 AWG | 0.012 in | 0.3 mm | Polyphenylene Oxide (PPO) | 0.083 " | 2.11 mm | -40 °C | 105 ░C | Hook-Up | 30 AWG | 26 | |||||
Belden Inc. | UL Style 11028 | Copper Tinned | 600 V | 16 AWG | 0.012 in | 0.3 mm | Polyphenylene Oxide (PPO) | Violet | 0.083 " | 2.11 mm | -40 °C | 105 ░C | Hook-Up | 30 AWG | 26 | ||||
Belden Inc. | UL Style 11028 | Copper Tinned | 600 V | 16 AWG | 0.012 in | 0.3 mm | Polyphenylene Oxide (PPO) | Brown | 0.083 " | 2.11 mm | -40 °C | 105 ░C | Hook-Up | 30 AWG | 26 | ||||
Belden Inc. | UL Style 11028 | Copper Tinned | 600 V | 16 AWG | 0.012 in | 0.3 mm | Polyphenylene Oxide (PPO) | 0.083 " | 2.11 mm | -40 °C | 105 ░C | Hook-Up | 30 AWG | 26 | 30.5 m | 100 ft |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Spool | 5000 | $ 1.79 | |
Description
General part information
39116 Series
16 AWG Hook-Up Wire 26/30 Green, Yellow Stripe 600V 5000' (1524.0m)
