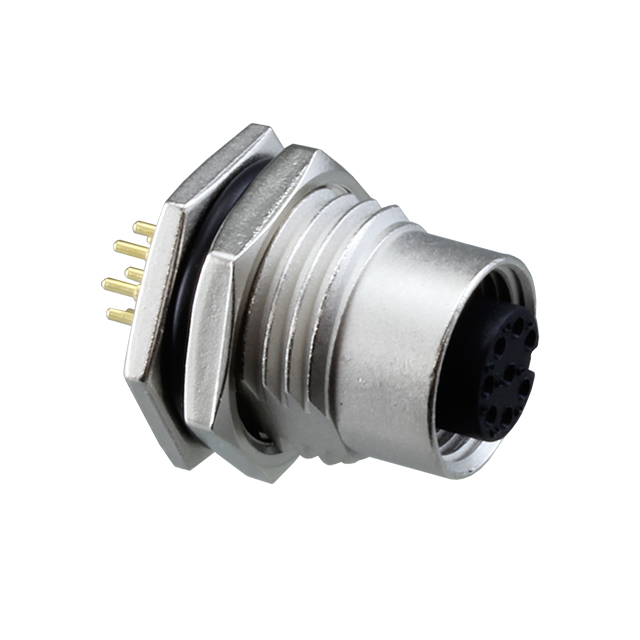

M12A-08PFFP-SF8002

Active

Amphenol LTW

CONN RCPT FMALE 8POS GOLD SOLDER

Search across all available documentation for this part.

Active

Amphenol LTW

CONN RCPT FMALE 8POS GOLD SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	M12A-08PFFP-SF8002

Color	Silver
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	2 A
Ingress Protection	IP68, IP69K
Insert Material	Polyamide (PA), Nylon, Glass Filled
Mounting Feature	Bulkhead - Front Side Nut
Mounting Type	Through Hole, Panel Mount
Number of Positions	8
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	A
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Zinc Alloy
Shell Size - Insert	M12-8
Shielding	Shielded
Termination	Solder
Voltage Rating	30 VAC

Part	Shielding	Color	Mounting Type	Number of Positions	Shell Size - Insert	Contact Material	Contact Finish - Mating	Shell Finish	Operating Temperature [Min]	Operating Temperature [Max]	Primary Material	Voltage Rating	Ingress Protection	Termination	Insert Material	Connector Type	Orientation	Current Rating (Amps)	Shell Material	Mounting Feature
Amphenol LTW M12A-08PFFP-SF8002	Shielded	Silver	Panel Mount Through Hole	8	M12-8	Copper Alloy	Gold	Nickel	-40 °C	105 ░C	Metal	30 VAC	IP68 IP69K	Solder	Polyamide (PA) Nylon Glass Filled	Receptacle Female Sockets	A	2 A	Zinc Alloy	Bulkhead - Front Side Nut
Amphenol LTW M12A-08PFFP-SF8001	Shielded	Silver	Panel Mount Through Hole	8	M12-8	Copper Alloy	Gold	Nickel	-40 °C	105 ░C	Metal	30 VAC	IP68 IP69K	Solder	Polyamide (PA) Nylon Glass Filled	Receptacle Female Sockets	A	2 A	Zinc Alloy	Bulkhead - Front Side Nut

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

8 Position Circular Connector Receptacle, Female Sockets Solder
