Q-0D0110005072i

Active

Amphenol Custom Cable

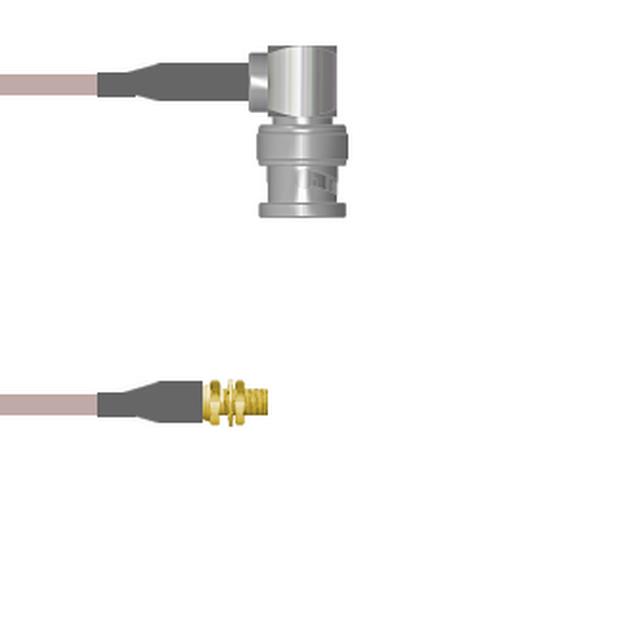

CBL ASSY BNC-MCX PLUG-JACK 6'

Deep-Dive with AI

Search across all available documentation for this part.

Q-0D0110005072i

Active

Amphenol Custom Cable

CBL ASSY BNC-MCX PLUG-JACK 6'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-0D0110005072i

1st Connector	BNC Plug, Right Angle
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	MCX Jack
2nd Connector Mounting Feature	Bulkhead - Front Side Nut
2nd Connector Mounting Type	Panel Mount
2nd Contact Gender	Female
Cable Type	RG-316
Color	Copper
Features	Shielded
Frequency - Max [Max]	4 GHz
Length	6 ft
Length	72 in
Length	1.8 m
Overall Impedance	50 Ohms
Style	BNC to MCX

Q-0D0110 Series

Part	1st Connector	Overall Impedance	2nd Connector Mounting Type	2nd Connector Mounting Feature	Color	Features	2nd Contact Gender	1st Connector Mounting Type	Frequency - Max [Max]	1st Contact Gender	Length	Length	Style	2nd Connector	Cable Type	Length
Amphenol Custom Cable Q-0D0110003036i	BNC Plug Right Angle	50 Ohms	Panel Mount	Bulkhead - Front Side Nut	Black	Shielded	Female	Free Hanging (In-Line)	4 GHz	Male	91.44 cm	36 in	BNC to MCX	MCX Jack	RG-174
Amphenol Custom Cable Q-0D0110003003i	BNC Plug Right Angle	50 Ohms	Panel Mount	Bulkhead - Front Side Nut	Black	Shielded	Female	Free Hanging (In-Line)	4 GHz	Male	76.2 mm	3 in	BNC to MCX	MCX Jack	RG-174
Amphenol Custom Cable Q-0D0110005072i	BNC Plug Right Angle	50 Ohms	Panel Mount	Bulkhead - Front Side Nut	Copper	Shielded	Female	Free Hanging (In-Line)	4 GHz	Male	1.8 m	72 in	BNC to MCX	MCX Jack	RG-316	6 ft
Amphenol Custom Cable Q-0D0110005009i	BNC Plug Right Angle	50 Ohms	Panel Mount	Bulkhead - Front Side Nut	Copper	Shielded	Female	Free Hanging (In-Line)	4 GHz	Male	228.6 mm	9 "	BNC to MCX	MCX Jack	RG-316
Amphenol Custom Cable Q-0D01100032.5M	BNC Plug Right Angle	50 Ohms	Panel Mount	Bulkhead - Front Side Nut	Black	Shielded	Female	Free Hanging (In-Line)	4 GHz	Male	2.5 m	98.4 in	BNC to MCX	MCX Jack	RG-174	8.2 '
Amphenol Custom Cable Q-0D0110003072i	BNC Plug Right Angle	50 Ohms	Panel Mount	Bulkhead - Front Side Nut	Black	Shielded	Female	Free Hanging (In-Line)	4 GHz	Male	1.8 m	72 in	BNC to MCX	MCX Jack	RG-174	6 ft
Amphenol Custom Cable Q-0D0110003084i	BNC Plug Right Angle	50 Ohms	Panel Mount	Bulkhead - Front Side Nut	Black	Shielded	Female	Free Hanging (In-Line)	4 GHz	Male	2.1 m	84 in	BNC to MCX	MCX Jack	RG-174	7 ft
Amphenol Custom Cable Q-0D01100031.5M	BNC Plug Right Angle	50 Ohms	Panel Mount	Bulkhead - Front Side Nut	Black	Shielded	Female	Free Hanging (In-Line)	4 GHz	Male	1.5 m	59.1 in	BNC to MCX	MCX Jack	RG-174	4.9 ft
Amphenol Custom Cable Q-0D0110003.75M	BNC Plug Right Angle	50 Ohms	Panel Mount	Bulkhead - Front Side Nut	Black	Shielded	Female	Free Hanging (In-Line)	4 GHz	Male	750 mm	29.53 "	BNC to MCX	MCX Jack	RG-174
Amphenol Custom Cable Q-0D0110005012i	BNC Plug Right Angle	50 Ohms	Panel Mount	Bulkhead - Front Side Nut	Copper	Shielded	Female	Free Hanging (In-Line)	4 GHz	Male	304.8 mm	12 "	BNC to MCX	MCX Jack	RG-316

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 102.31
		25	$ 100.31
		50	$ 98.31
		100	$ 96.30
		250	$ 94.30

Description

General part information

Q-0D0110 Series

Cable Assembly Coaxial BNC to MCX RG-316 72.0" (1.8m) 6.0'

Documents

Technical documentation and resources

No documents available
