30-251 BLK

Active

Grayhill Inc.

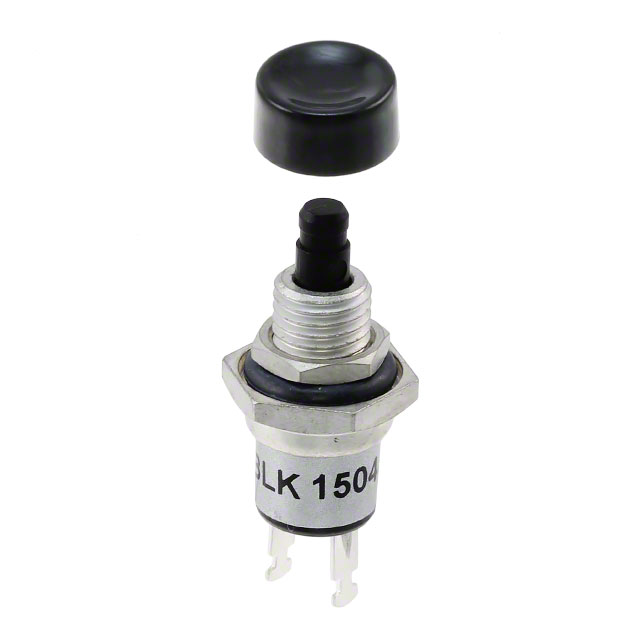

INDUSTRIAL PUSHBUTTON SWITCH, 30 SERIES, 6.8 MM, SPST-NO, OFF-(ON), ROUND, BLACK

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN +1

30-251 BLK

Active

Grayhill Inc.

INDUSTRIAL PUSHBUTTON SWITCH, 30 SERIES, 6.8 MM, SPST-NO, OFF-(ON), ROUND, BLACK

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN +1

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 17.53
		10	$ 15.72
		100	$ 13.73
Newark	Each	25	$ 15.05
		50	$ 14.11
		100	$ 13.34
		250	$ 12.57

Description

General part information

30-251 Series

The 30 series 1 and 5A SPST butt contact Pushbutton Switch made of thermoplastic base with gold over nickel plated brass terminals for 30-601 and commercial brass with fine-silver contact surface and silver plated for all others.

Documents

Technical documentation and resources

Datasheet

Technical Data Sheet EN

Datasheet

Product Change Notice EN

Datasheet

Specification	30-251 BLK	30-251 Series

Actuator Marking	No Marking	No Marking
Actuator Type	Round, Button	Round, Button
Circuit	SPST-NO	SPST-NO
Color - Actuator/Cap	Black	Red, Black
Current Rating (Amps)	1 A	1 A
Electrical Life	250000 Cycles	250000 Cycles
Features	Sealed - Fully	Sealed - Fully, Epoxy Sealed Terminals
Mounting Type	Panel Mount, Rear	Panel Mount, Rear
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Panel Cutout Dimensions [diameter]	6.75 mm	6.75 mm
Switch Function	Off-Mom	Off-Mom
Termination Style	Solder Lug	Solder Lug, Wire Leads
Type	Standard	Standard
Voltage Rating - AC	115 V	115 V

Part	Termination Style	Features	Circuit	Type	Switch Function	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Color - Actuator/Cap	Actuator Type	Actuator Marking	Panel Cutout Dimensions [diameter]	Voltage Rating - AC	Electrical Life
Grayhill Inc. 30-251 RED	Solder Lug	Sealed - Fully	SPST-NO	Standard	Off-Mom	1 A	85 °C	-40 °C	Panel Mount, Rear	Red	Button, Round	No Marking	6.75 mm	115 V	250000 Cycles
Grayhill Inc. 30-251 BLK-EW	Wire Leads	Epoxy Sealed Terminals	SPST-NO	Standard	Off-Mom	1 A	85 °C	-40 °C	Panel Mount, Rear	Black	Button, Round	No Marking	6.75 mm	115 V	250000 Cycles
Grayhill Inc. 30-251 BLK	Solder Lug	Sealed - Fully	SPST-NO	Standard	Off-Mom	1 A	85 °C	-40 °C	Panel Mount, Rear	Black	Button, Round	No Marking	6.75 mm	115 V	250000 Cycles
