97139.6

Active

Pflitsch

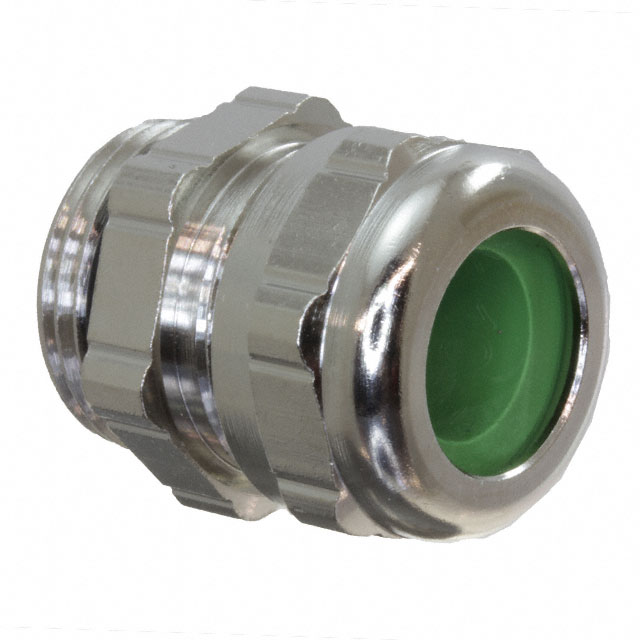

CABLE GLAND 6.86-10.41MM M20

Search across all available documentation for this part.

Active

Pflitsch

CABLE GLAND 6.86-10.41MM M20

Technical Specifications

Parameters and characteristics for this part

Specification	97139.6

Color	Silver
Includes	Sealing Ring
Ingress Protection	IP68 - Dust Tight, Waterproof; NEMA 4X
Material	Brass, Nickel Plated
Operating Temperature [Max]	300 °C
Operating Temperature [Min]	-40 °C
Outside Cable Diameter (Max) [Max]	0.41 in
Outside Cable Diameter (Max) [Max]	10.41 mm
Outside Cable Diameter (Min) [Min] [diameter]	6.86 mm
Outside Cable Diameter (Min) [Min] [diameter]	0.27 in
Panel Hole Size	20.1 mm
Panel Hole Size	0.79 in
Thread Length	0.24 in
Thread Length	6.1 mm
Thread Size	M20x1.5
Type	Cable Gland

Part	Thread Length	Thread Length	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Ingress Protection	Color	Type	Outside Cable Diameter (Max) [Max]	Outside Cable Diameter (Max) [Max]	Panel Hole Size	Panel Hole Size	Material	Includes	Thread Size
Pflitsch 97139.6	0.24 in	6.1 mm	6.86 mm	0.27 in	-40 °C	300 °C	IP68 - Dust Tight Waterproof; NEMA 4X	Silver	Cable Gland	0.41 in	10.41 mm	20.1 mm	0.79 in	Brass Nickel Plated	Sealing Ring	M20x1.5

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Gland Brass, Nickel Plated M20x1.5 Silver
