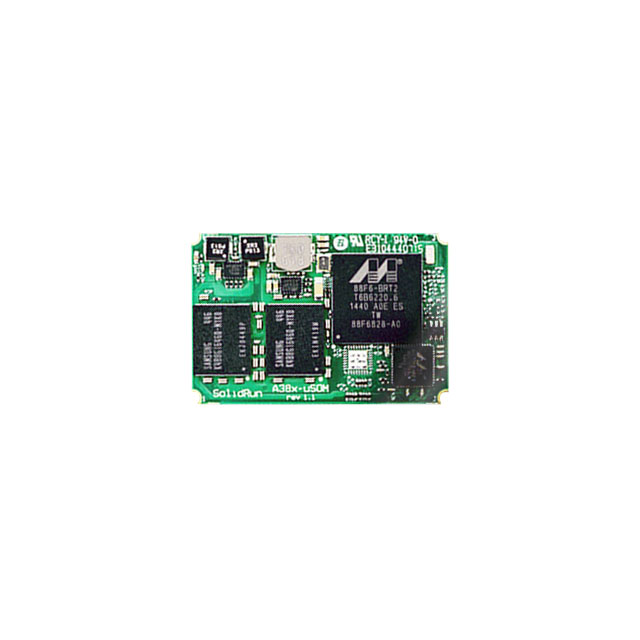

SRM6828S32D01GE000V20C0

Unknown

SolidRun LTD

SBC 1.3GHZ 2 CORE 2GB/1GB RAM

Search across all available documentation for this part.

Unknown

SolidRun LTD

SBC 1.3GHZ 2 CORE 2GB/1GB RAM

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Single Board Computer 1.3GHz 2 Core 2GB/1GB RAM ARMADA A388, ARM Cortex-A9 Dual

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	SRM6828S32D01GE000V20C0	SRM6828S32D01GE Series

Contents	SD Card	SD Card
Core Processor	ARMADA A388, ARM Cortex-A9 Dual	ARMADA A388, ARM Cortex-A9 Dual
Ethernet	(3)	(3)
Ethernet	10 Mbps, 1000 Mbps, 100 Mbps	10 - 1000 Mbps
Expansion Site/Bus	PCIe, SATA	I2C, GPIO, PCIe, UART, PWM, SPI, SATA, I2S
Number of Cores	2	2
Operating Temperature [Max]	70 °C	70 - 85 °C
Operating Temperature [Min]	0 °C	-40 - 0 °C
RAM Capacity/Installed	1 GB, 2 GB	1 - 2 GB
Size / Dimension [x]	50 mm	50 mm
Size / Dimension [x]	1.97 "	1.97 "
Size / Dimension [y]	1.38 "	1.38 "
Size / Dimension [y]	35 mm	35 mm
Speed	1.3 GHz	1.3 - 1.6 GHz
Storage Interface	SDIO, SPI	SD, SPI, eMMC, NOR-Flash, PCIeSSD, SATA 3.0 (4), SDIO
USB	USB 2.0 (3), USB 3.0 (2)	USB 2.0 (2), USB 3.0 (1), USB 2.0 (3), USB 3.0 (2)
Watchdog Timer	False	False

SBC 1.6GHZ 2 CORE 1GB/2GB RAM

Part	Core Processor	Number of Cores	Expansion Site/Bus	Speed	USB	RAM Capacity/Installed	Storage Interface	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Ethernet	Ethernet	Contents
SolidRun LTD SRM6828S32D01GE016V21C0	ARM Cortex-A9 Dual, ARMADA A388	2	GPIO, I2C, I2S, PCIe, PWM, SATA, SPI, UART	1.6 GHz	USB 2.0 (2), USB 3.0 (1)	1 GB, 2 GB	eMMC, NOR-Flash, PCIeSSD, SATA 3.0 (4), SD, SPI	70 °C	0 °C	1.38 "	50 mm	35 mm	1.97 "	(3)	10 Mbps, 100 Mbps, 1000 Mbps
SolidRun LTD SRM6828S32D01GE128V21I0	ARM Cortex-A9 Dual, ARMADA A388	2	GPIO, I2C, I2S, PCIe, PWM, SATA, SPI, UART	1.6 GHz	USB 2.0 (2), USB 3.0 (1)	1 GB, 2 GB	eMMC, NOR-Flash, PCIeSSD, SATA 3.0 (4), SD, SPI	85 °C	-40 °C	1.38 "	50 mm	35 mm	1.97 "	(3)	10 Mbps, 100 Mbps, 1000 Mbps
SolidRun LTD SRM6828S32D01GE032V21C0	ARM Cortex-A9 Dual, ARMADA A388	2	GPIO, I2C, I2S, PCIe, PWM, SATA, SPI, UART	1.6 GHz	USB 2.0 (2), USB 3.0 (1)	1 GB, 2 GB	eMMC, NOR-Flash, PCIeSSD, SATA 3.0 (4), SD, SPI	70 °C	0 °C	1.38 "	50 mm	35 mm	1.97 "	(3)	10 Mbps, 100 Mbps, 1000 Mbps
SolidRun LTD SRM6828S32D01GE000V20C0	ARM Cortex-A9 Dual, ARMADA A388	2	PCIe, SATA	1.3 GHz	USB 2.0 (3), USB 3.0 (2)	1 GB, 2 GB	SDIO, SPI	70 °C	0 °C	1.38 "	50 mm	35 mm	1.97 "	(3)	10 Mbps, 100 Mbps, 1000 Mbps	SD Card
