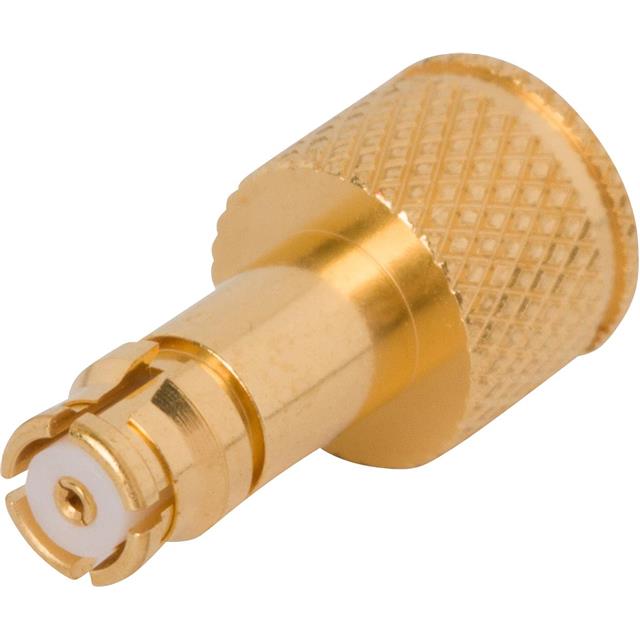

Specification	8012-4013

Body Finish	Gold
Body Material	Beryllium Copper
Connector Style	SMP
Connector Type	Jack, Female Socket
Contact Finish	Gold
Contact Material	Beryllium Copper
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max	26.5 GHz
Impedance	50 Ohm
Mounting Type	Cap, Free Hanging

8012-40 Series

Part	Body Material	Dielectric Material	Connector Style	Impedance	Frequency - Max	Body Finish	Contact Material	Connector Type	Mounting Type	Contact Finish
McGill Microwave Systems 8012-4006	Beryllium Copper	Polytetrafluoroethylene (PTFE)	SMP	50 Ohm	26.5 GHz	Gold	Beryllium Copper	Female Socket Jack	Cap Free Hanging	Gold

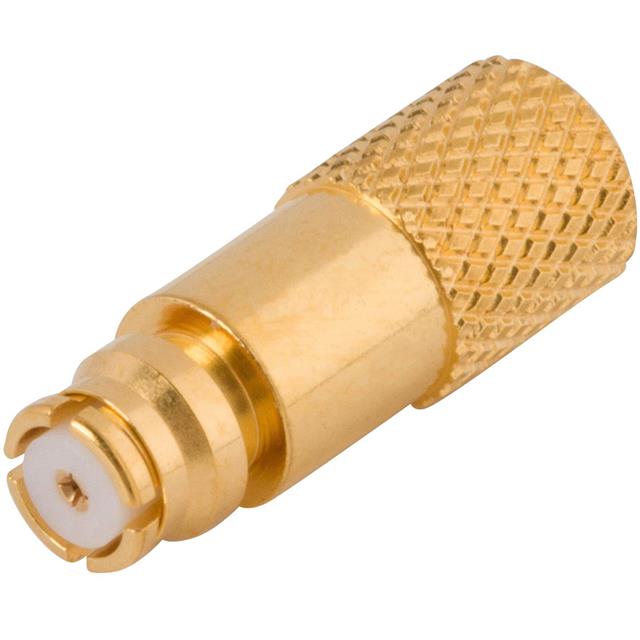

McGill Microwave Systems 8012-4008	Beryllium Copper	Polytetrafluoroethylene (PTFE)	SMP	50 Ohm		Gold	Beryllium Copper	Female Socket Jack	Cap Free Hanging	Gold
McGill Microwave Systems 8012-4013	Beryllium Copper	Polytetrafluoroethylene (PTFE)	SMP	50 Ohm	26.5 GHz	Gold	Beryllium Copper	Female Socket Jack	Cap Free Hanging	Gold
