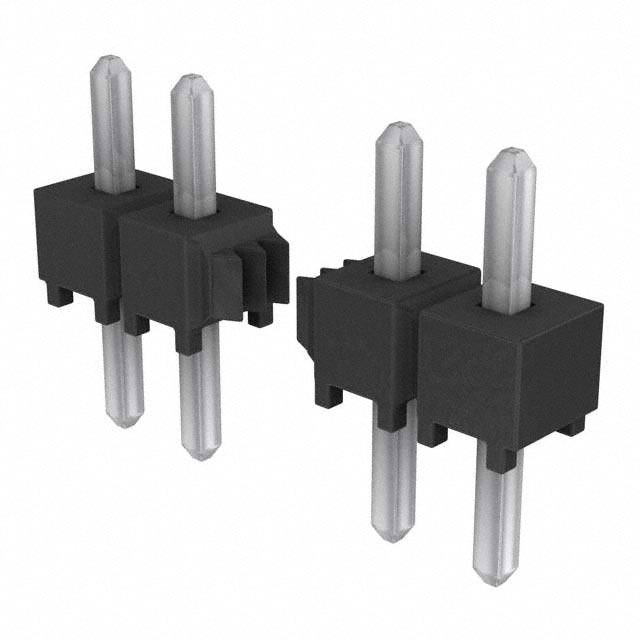

TSW-142-05-T-S

Active

Samtec Inc.

CONN HEADER VERT 42POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsHTSW, TSW Series Datasheet Datasheet

TSW-142-05-T-S

Active

Samtec Inc.

CONN HEADER VERT 42POS 2.54MM

Deep-Dive with AI

DocumentsHTSW, TSW Series Datasheet Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TSW-142-05-T-S

Connector Type	Header
Contact Finish - Post	Tin
Contact Length - Post	0.13 in
Contact Length - Post	3.3 mm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.1 in
Insulation Height	2.54 mm
Insulation Material	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	42
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Overall Contact Length	8.51 mm
Overall Contact Length	0.335 in
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Shrouding	Unshrouded
Style	Board to Board, Cable
Termination	Solder

TSW-142 Series

Part	Pitch - Mating	Pitch - Mating	Mounting Type	Style	Insulation Material	Number of Positions Loaded	Overall Contact Length	Overall Contact Length	Contact Length - Post [x]	Contact Length - Post	Contact Length - Mating	Contact Length - Mating	Number of Positions	Termination	Shrouding	Fastening Type	Insulation Color	Contact Material	Operating Temperature [Max]	Operating Temperature [Min]	Contact Type	Material Flammability Rating	Insulation Height	Insulation Height	Number of Rows	Connector Type	Contact Finish - Post	Contact Shape	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Finish - Mating	Contact Length - Mating [x]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Length - Post [x]	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Length - Post	Insulation Height [custom]	Insulation Height [custom]
Samtec Inc. TSW-142-14-T-S	0.1 in	2.54 mm	Through Hole	Board to Board Cable	Polybutylene Terephthalate (PBT)	All	13.46 mm	0.53 in	0.11 in	2.79 mm	8.13 mm	0.32 in	42	Solder	Unshrouded	Push-Pull	Black	Phosphor Bronze	105 ░C	-55 °C	Male Pin	UL94 V-0	0.1 in	2.54 mm	1	Header	Tin	Square
Samtec Inc. TSW-142-08-G-D	0.1 in	2.54 mm	Through Hole	Board to Board Cable	Polybutylene Terephthalate (PBT)	All	13.46 mm	0.53 in	0.2 in		5.84 mm		84	Solder	Unshrouded	Push-Pull	Black	Phosphor Bronze	125 °C	-55 °C	Male Pin	UL94 V-0	0.1 in	2.54 mm	2	Header	Gold	Square	2.54 mm	0.1 in	Gold	0.23 in	10 çin	0.25 çm	5.08 mm	3 µin	0.076 µm
Samtec Inc. TSW-142-19-T-S	0.1 in	2.54 mm	Through Hole	Board to Board Cable	Polybutylene Terephthalate (PBT)	All	26.16 mm	1.03 in	0.11 in	2.79 mm	20.83 mm	0.82 in	42	Solder	Unshrouded	Push-Pull	Black	Phosphor Bronze	105 ░C	-55 °C	Male Pin	UL94 V-0	0.1 in	2.54 mm	1	Header	Tin	Square
Samtec Inc. TSW-142-05-T-S	0.1 in	2.54 mm	Through Hole	Board to Board Cable	Polybutylene Terephthalate (PBT)	All	8.51 mm	0.335 in		3.3 mm			42	Solder	Unshrouded	Push-Pull	Black	Phosphor Bronze	105 ░C	-55 °C	Male Pin	UL94 V-0	0.1 in	2.54 mm	1	Header	Tin	Square										0.13 in
Samtec Inc. TSW-142-08-S-S	0.1 in	2.54 mm	Through Hole	Board to Board Cable	Polybutylene Terephthalate (PBT)	All	13.46 mm	0.53 in	0.2 in		5.84 mm		42	Solder	Unshrouded	Push-Pull	Black	Phosphor Bronze	125 °C	-55 °C	Male Pin	UL94 V-0	0.1 in	2.54 mm	1	Header	Tin	Square			Gold	0.23 in	30 Áin	0.76 Ám	5.08 mm
Samtec Inc. TSW-142-08-G-S-RA	0.1 in	2.54 mm	Through Hole Right Angle	Board to Board Cable	Polybutylene Terephthalate (PBT)	All				2.29 mm	5.84 mm		42	Solder	Unshrouded	Push-Pull	Black	Phosphor Bronze	125 °C	-55 °C	Male Pin	UL94 V-0			1	Header	Gold	Square			Gold	0.23 in	10 çin	0.25 çm		3 µin	0.076 µm	0.09 "	0.119 in	3.02 mm
Samtec Inc. TSW-142-05-S-T	0.1 in	2.54 mm	Through Hole	Board to Board Cable	Polybutylene Terephthalate (PBT)	All	8.51 mm	0.335 in		3.3 mm			126	Solder	Unshrouded	Push-Pull	Black	Phosphor Bronze	125 °C	-55 °C	Male Pin	UL94 V-0	0.1 in	2.54 mm	3	Header	Tin	Square	2.54 mm	0.1 in	Gold		30 Áin	0.76 Ám				0.13 in
Samtec Inc. TSW-142-08-T-S-RA	0.1 in	2.54 mm	Through Hole Right Angle	Board to Board Cable	Polybutylene Terephthalate (PBT)	All				2.29 mm	5.84 mm		42	Solder	Unshrouded	Push-Pull	Black	Phosphor Bronze	105 ░C	-55 °C	Male Pin	UL94 V-0			1	Header	Tin	Square				0.23 in						0.09 "	0.119 in	3.02 mm
Samtec Inc. TSW-142-23-T-S	0.1 in	2.54 mm	Through Hole	Board to Board Cable	Polybutylene Terephthalate (PBT)	All	11.3 mm	0.445 "		2.92 mm	5.84 mm		42	Solder	Unshrouded	Push-Pull	Black	Phosphor Bronze	105 ░C	-55 °C	Male Pin	UL94 V-0	0.1 in	2.54 mm	1	Header	Tin	Square				0.23 in						0.115 in
Samtec Inc. TSW-142-23-L-S	0.1 in	2.54 mm	Through Hole	Board to Board Cable	Polybutylene Terephthalate (PBT)	All	11.3 mm	0.445 "		2.92 mm	5.84 mm		42	Solder	Unshrouded	Push-Pull	Black	Phosphor Bronze	125 °C	-55 °C	Male Pin	UL94 V-0	0.1 in	2.54 mm	1	Header	Tin	Square			Gold	0.23 in	10 çin	0.25 çm				0.115 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 2.72
		10	$ 2.37
		100	$ 2.12
		500	$ 1.76
		1000	$ 1.51
		5000	$ 1.34

Description

General part information

TSW-142 Series

Connector Header Through Hole 42 position 0.100" (2.54mm)
