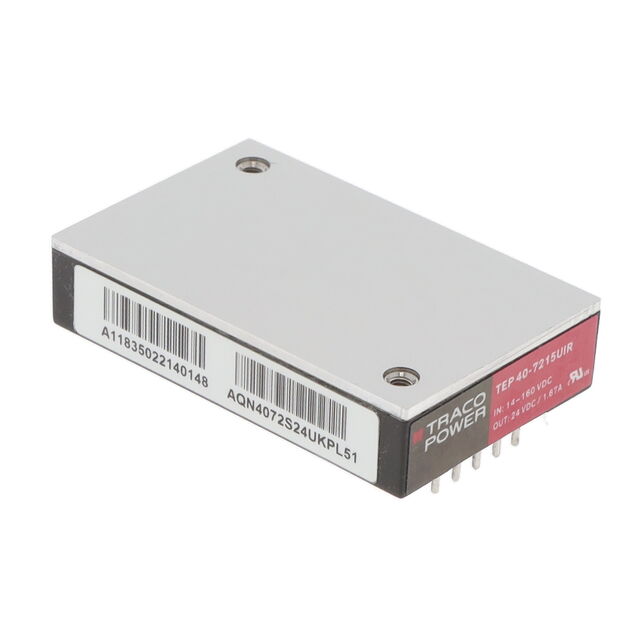

Specification	TEP 40-7215UIR

Applications	Railway, ITE (Commercial)
Approval Agency	CB, cURus
Current - Output (Max)	1.67 A
Efficiency	90 %
Features	Adjustable Output, Remote On/Off
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-40 °C
Package / Case	Quarter Brick
Package Name	Quarter Brick
Power (Watts)	40 W
Size / Dimension Height	0.5 in
Size / Dimension Length	2.28 in
Size / Dimension Width	1.45 in
Type	Isolated Module
Voltage - Input (Max)	160 VDC
Voltage - Input (Min)	14 V
Voltage - Isolation	3 kV
Voltage - Output 1	24 V

TEP 40 Series

Part	Features	Size / Dimension Width	Size / Dimension Height	Size / Dimension Length	Approval Agency	Voltage - Input (Min)	Efficiency	Current - Output (Max)	Voltage - Isolation	Voltage - Input (Max)	Voltage - Output 1	Number of Outputs	Power (Watts)	Package / Case	Package Name	Applications	Type	Mounting Type	Operating Temperature (Min)	Operating Temperature (Max)
Traco Power TEP 40-7215UIR	Adjustable Output Remote On/Off	1.45 in	0.5 in	2.28 in	CB cURus	14 V	90 %	1.67 A	3 kV	160 VDC	24 V	1	40 W	Quarter Brick	Quarter Brick	ITE (Commercial) Railway	Isolated Module	Through Hole	-40 °C	85 °C
Traco Power TEP 40-7211UIR	Adjustable Output Remote On/Off	1.45 in	0.5 in	2.28 in	CB cURus	14 V	89 %	8 A	3 kV	160 VDC	5 V	1	40 W	Quarter Brick	Quarter Brick	ITE (Commercial) Railway	Isolated Module	Through Hole	-40 °C	85 °C
Traco Power TEP 40-7218UIR	Adjustable Output Remote On/Off	1.45 in	0.5 in	2.28 in	CB cURus	14 V	90 %	830 mA	3 kV	160 VDC	48 V	1	40 W	Quarter Brick	Quarter Brick	ITE (Commercial) Railway	Isolated Module	Through Hole	-40 °C	85 °C
Traco Power TEP 40-7212UIR	Adjustable Output Remote On/Off	1.45 in	0.5 in	2.28 in	CB cURus	14 V	91 %	3.33 A	3 kV	160 VDC	12 V	1	40 W	Quarter Brick	Quarter Brick	ITE (Commercial) Railway	Isolated Module	Through Hole	-40 °C	85 °C
Traco Power TEP 40-3613UIR	Adjustable Output Remote On/Off	1.45 in	0.5 in	2.28 in	CB cURus	9 V	91 %	2.67 A	2.25 kV	75 V	15 V	1	40 W	Quarter Brick	Quarter Brick	ITE (Commercial) Railway	Isolated Module	Through Hole	-40 °C	85 °C
Traco Power TEP 40-3615UIR	Adjustable Output Remote On/Off	1.45 in	0.5 in	2.28 in	CB cURus	9 V	90 %	1.67 A	2.25 kV	75 V	24 V	1	40 W	Quarter Brick	Quarter Brick	ITE (Commercial) Railway	Isolated Module	Through Hole	-40 °C	85 °C
Traco Power TEP 40-3612UIR	Adjustable Output Remote On/Off	1.45 in	0.5 in	2.28 in	CB cURus	9 V	91 %	3.33 A	2.25 kV	75 V	12 V	1	40 W	Quarter Brick	Quarter Brick	ITE (Commercial) Railway	Isolated Module	Through Hole	-40 °C	85 °C
Traco Power TEP 40-3618UIR	Adjustable Output Remote On/Off	1.45 in	0.5 in	2.28 in	CB cURus	9 V	90 %	830 mA	2.25 kV	75 V	48 V	1	40 W	Quarter Brick	Quarter Brick	ITE (Commercial) Railway	Isolated Module	Through Hole	-40 °C	85 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

TEP 40-7215UIR | Datasheet
