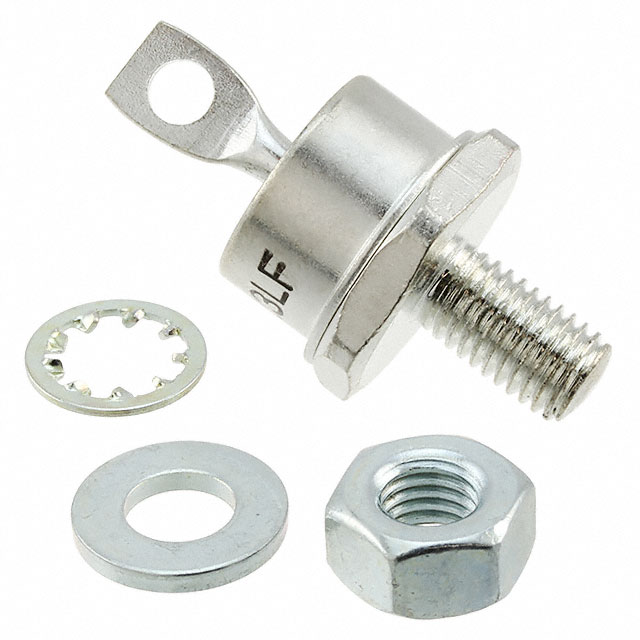

1N3214

Active

GeneSiC Semiconductor

DIODE SWITCHING 600V 15A 2-PIN DO-5

Search across all available documentation for this part.

Active

GeneSiC Semiconductor

DIODE SWITCHING 600V 15A 2-PIN DO-5

Technical Specifications

Parameters and characteristics for this part

Specification	1N3214

Current - Average Rectified (Io)	15 A
Current - Reverse Leakage @ Vr	10 µA
Mounting Type	Chassis, Stud Mount
Operating Temperature - Junction [Max]	175 ░C
Operating Temperature - Junction [Min]	-65 C
Package / Case	DO-203AB, DO-5, Stud
Speed	Standard Recovery >500ns
Speed	200 mA
Supplier Device Package	DO-5
Technology	Standard
Voltage - DC Reverse (Vr) (Max) [Max]	600 V
Voltage - Forward (Vf) (Max) @ If	15 A, 1.5 V

DIODE SWITCHING 600V 15A 2-PIN DO-5

Part	Package / Case	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Current - Reverse Leakage @ Vr	Supplier Device Package	Technology	Speed	Speed	Mounting Type	Voltage - Forward (Vf) (Max) @ If	Voltage - DC Reverse (Vr) (Max) [Max]	Current - Average Rectified (Io)
GeneSiC Semiconductor 1N3214	DO-203AB, DO-5, Stud	175 ░C	-65 C	10 µA	DO-5	Standard	Standard Recovery >500ns	200 mA	Chassis, Stud Mount	1.5 V, 15 A	600 V	15 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Diode 600 V 15A Chassis, Stud Mount DO-5
