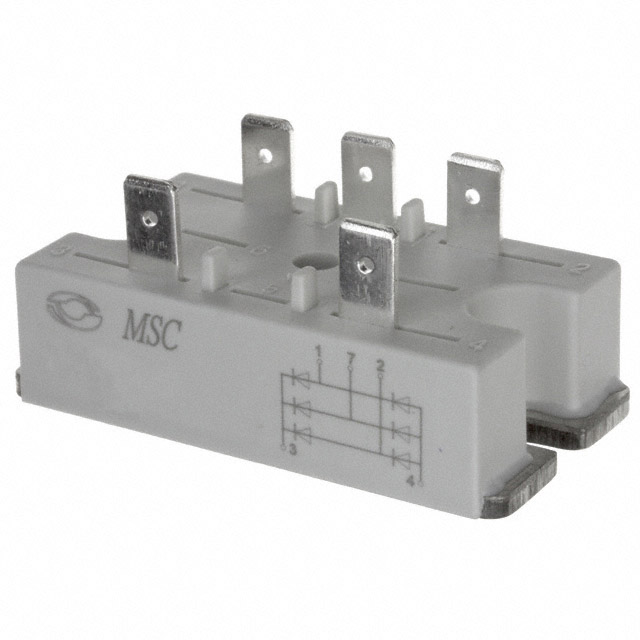

MSD50-16

Obsolete

Microsemi Corporation

BRIDGE RECT 3PHASE 1.6KV 50A MSD

Search across all available documentation for this part.

Obsolete

Microsemi Corporation

BRIDGE RECT 3PHASE 1.6KV 50A MSD

Technical Specifications

Parameters and characteristics for this part

Specification	MSD50-16

Current - Average Rectified (Io)	50 A
Current - Reverse Leakage @ Vr	200 µA
Diode Type	Three Phase
Mounting Type	QC Terminal
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-40 °C
Package / Case	M1
Supplier Device Package	MSD
Technology	Standard
Voltage - Forward (Vf) (Max) @ If	1.5 V
Voltage - Peak Reverse (Max)	1.6 kV

Part	Supplier Device Package	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Diode Type	Current - Reverse Leakage @ Vr	Mounting Type	Voltage - Forward (Vf) (Max) @ If	Voltage - Peak Reverse (Max)	Technology	Current - Average Rectified (Io)	Voltage - Peak Reverse (Max) [Max]
Microsemi Corporation MSD50-16	MSD	M1	150 °C	-40 °C	Three Phase	200 µA	QC Terminal	1.5 V	1.6 kV	Standard	50 A
Microsemi Corporation MSD50-08	MSD	M1	150 °C	-40 °C	Three Phase	200 µA	QC Terminal	1.5 V		Standard	50 A	800 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Bridge Rectifier Three Phase Standard 1.6 kV QC Terminal MSD
