4910-2-5

Active

3M (TC)

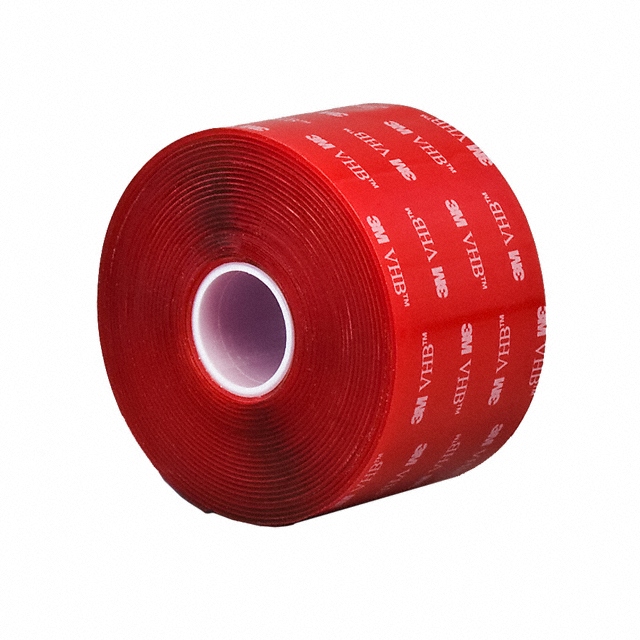

TAPE DBL COATED/SIDED CLR 2"X5YD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDate Code Decipher

4910-2-5

Active

3M (TC)

TAPE DBL COATED/SIDED CLR 2"X5YD

Deep-Dive with AI

DocumentsDate Code Decipher

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	4910-2-5

Adhesive	Acrylic
Backing, Carrier	Acrylic Foam
Color	Clear
Length	4.6 m
Length	15 ft
Length	5 yd
Shelf Life	24 Months
Shelf Life Start	Date of Shipment
Storage/Refrigeration Temperature [Max]	100 °F, 38 °C
Storage/Refrigeration Temperature [Min]	40 °F, 4 °C
Tape Type	Double Coated, Double Sided
Temperature Range	200 °F
Temperature Range	93 °C
Thickness	0.04 in
Thickness	1.016 mm
Thickness	1.016 mm
Usage	General Purpose
Width [y]	2 "
Width [y]	50.8 mm

4910 Series

...

Part	Color	Adhesive	Storage/Refrigeration Temperature [Min]	Storage/Refrigeration Temperature [Max]	Tape Type	Thickness	Thickness	Thickness	Thickness - Backing, Carrier [custom]	Thickness - Backing, Carrier [custom]	Thickness - Backing, Carrier [custom]	Shelf Life	Thickness - Adhesive	Thickness - Adhesive	Thickness - Adhesive	Shelf Life Start	Temperature Range	Temperature Range	Backing, Carrier	Usage	Length [x]	Length [x]	Width	Width	Width	Length	Length	Width [x]	Width [x]	Length	Width [diameter]	Width [y]	Width [y]
3M (TC) 3M 4910 CIRCLE-4"-100	Clear	Acrylic	4 °C 40 °F	38 °C 100 °F	Double Coated Double Sided	0.04 in	1.016 mm	1.016 mm	0.005 "	5 mils	0.127 mm	24 Months	0.035 "	0.889 mm	35 mils	Date of Shipment	93 °C	200 °F
3M (TC) 4910-0.75-4(100)	Clear	Acrylic	4 °C 40 °F	38 °C 100 °F	Double Coated Double Sided	0.04 in	1.016 mm	1.016 mm				24 Months				Date of Shipment	93 °C	200 °F	Acrylic Foam	General Purpose	101.6 mm	4 "	0.75 in	19.05 mm	0.75 in
3M (TC) 4910-0.5-6(25)	Clear	Acrylic	4 °C 40 °F	38 °C 100 °F	Double Coated Double Sided	0.04 in	1.016 mm	1.016 mm	0.005 "	5 mils	0.127 mm	24 Months	0.035 "	0.889 mm	35 mils	Date of Shipment	93 °C	200 °F					0.5 in	0.5 in	12.7 mm	152.4 mm	6 in
3M (TC) 3M 4910 9" X 10"-2	Clear	Acrylic	4 °C 40 °F	38 °C 100 °F	Double Coated Double Sided	0.04 in	1.016 mm	1.016 mm	0.005 "	5 mils	0.127 mm	24 Months	0.035 "	0.889 mm	35 mils	Date of Shipment	93 °C	200 °F								254 mm	10 in	9 in	228.6 mm
3M (TC) 4910-7-7(5)	Clear	Acrylic	4 °C 40 °F	38 °C 100 °F	Double Coated Double Sided	0.04 in	1.016 mm	1.016 mm	0.005 "	5 mils	0.127 mm	24 Months	0.035 "	0.889 mm	35 mils	Date of Shipment	93 °C	200 °F								177.8 mm	7 in	7 in	177.8 mm
3M (TC) 4910-0.875-36	Clear	Acrylic	4 °C 40 °F	38 °C 100 °F	Double Coated Double Sided	0.04 in	1.016 mm	1.016 mm	0.005 "	5 mils	0.127 mm	24 Months	0.035 "	0.889 mm	35 mils	Date of Shipment	93 °C	200 °F					0.88 in	0.875 in	22.35 mm	32.9 m	108 ft			36 yd
3M (TC) 4910-1.25-36	Clear	Acrylic	4 °C 40 °F	38 °C 100 °F	Double Coated Double Sided	0.04 in	1.016 mm	1.016 mm	0.005 "	5 mils	0.127 mm	24 Months	0.035 "	0.889 mm	35 mils	Date of Shipment	93 °C	200 °F					1.25 in		31.75 mm	32.9 m	108 ft			36 yd
3M (TC) 4910CIR-0.875(1000)	Clear	Acrylic	4 °C 40 °F	38 °C 100 °F	Double Coated Double Sided	0.04 in	1.016 mm	1.016 mm	0.005 "	5 mils	0.127 mm	24 Months	0.035 "	0.889 mm	35 mils	Date of Shipment	93 °C	200 °F										0.88 in	22.35 mm		0.875 in
3M (TC) 4910-11-36	Clear	Acrylic	4 °C 40 °F	38 °C 100 °F	Double Coated Double Sided	0.04 in	1.016 mm	1.016 mm	0.005 "	5 mils	0.127 mm	24 Months	0.035 "	0.889 mm	35 mils	Date of Shipment	93 °C	200 °F								32.9 m	108 ft			36 yd		279.4 mm	11 in
3M (TC) 4910-2-5	Clear	Acrylic	4 °C 40 °F	38 °C 100 °F	Double Coated Double Sided	0.04 in	1.016 mm	1.016 mm				24 Months				Date of Shipment	93 °C	200 °F	Acrylic Foam	General Purpose						4.6 m	15 ft			5 yd		50.8 mm	2 "

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 81.35
		10	$ 76.27
		25	$ 71.18
		50	$ 67.62

Description

General part information

4910 Series

Double Coated, Double Sided Tape Acrylic Adhesive Clear 2.00" (50.80mm) X 15' (4.6m) 5 yds
