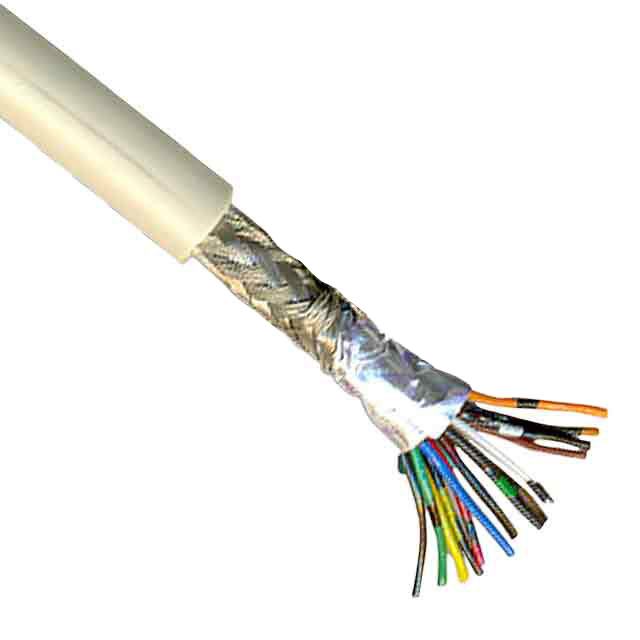

3750/10 300

Active

3M (TC)

MULTI-PAIR 10CON 26AWG GRAY

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

3750/10 300

Active

3M (TC)

MULTI-PAIR 10CON 26AWG GRAY

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	3750/10 300

Cable Type	Multi-Pair
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand	7 Strands, 34 AWG
Jacket (Insulation) Diameter [diameter]	6.6 mm
Jacket (Insulation) Diameter [diameter]	0.26 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.026 in
Jacket (Insulation) Thickness	0.66 mm
Jacket Color	Gray
Length	91.4 m
Length	300 ft
Number of Conductors	10
Shield Coverage	90 %, 100 %
Shield Material	Copper, Tinned, Aluminum
Shield Type	Foil, Braid
Usage	Communication, Computer, Control
Voltage	300 V
Wire Gauge	26 AWG

3750 Series

Part	Shelf Life Start	Storage/Refrigeration Temperature [Max]	Storage/Refrigeration Temperature [Max]	Shelf Life	Type	For Use With/Related Products	Features	Thickness	Thickness	Thickness	Backing, Carrier	Usage	Adhesive	Width [y]	Width [y]	Length	Length	Length	Tape Type	Color	Shield Type	Shield Coverage	Number of Conductors	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Insulation	Jacket (Insulation) Material	Jacket Color	Voltage	Conductor Material	Cable Type	Shield Material	Wire Gauge	Conductor Strand	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Length [x]	Length [x]	Jacket (Insulation) Diameter	Width	Width	Width	Thickness - Adhesive	Thickness - Adhesive	Thickness - Adhesive
3M (TC) 3750AE-TAN-1/2X10-25LB	Date of Shipment	120 °F	49 °C	24 Months	Hot Melt	Hot Melt Applicator	Heat Resistant
3M (TC) 3750RD-CLEAR-48MMX50M								2 mils	0.002 in	0.051 mm	Polypropylene Film	Packaging Sealing Shipping Splicing	Rubber	48 mm	1.89 in	50 m	54.7 yds	164 ft	Box Sealing	Clear
3M (TC) 3750/10 300												Communication Computer Control				91.4 m		300 ft			Braid Foil	90 % 100 %	10	6.6 mm	0.26 in	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)	Gray	300 V	Copper Tinned	Multi-Pair	Aluminum Copper Tinned	26 AWG	7 Strands 34 AWG	0.026 in	0.66 mm
3M (TC) 3750/50 100												Communication Computer Control									Braid Foil	90 % 100 %	50	12.45 mm	0.49 "	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)	Gray	300 V	Copper Tinned	Multi-Pair	Aluminum Copper Tinned	26 AWG	7 Strands 34 AWG	0.026 in	0.66 mm	30.5 m	100 ft
3M (TC) 3750/60												Communication Computer Control									Braid Foil	90 % 100 %	60		0.52 in	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)	Gray	300 V	Copper Tinned	Multi-Pair	Aluminum Copper Tinned	26 AWG	7 Strands 34 AWG	0.026 in	0.66 mm	30.5 m	100 ft	13.21 mm
3M (TC) 3750-CLEAR-48MMX50M-PACK	Date of Shipment	120 °F	49 °C	24 Months							Polypropylene Film	Packaging Sealing Shipping Splicing	Rubber	48 mm	1.89 in	50 m	54.7 yds	164 ft	Box Sealing	Clear
3M (TC) 3750LMAE-TAN-11LB	Date of Shipment	120 °F	49 °C	24 Months	Hot Melt	Hot Melt Applicator	Heat Resistant
3M (TC) 3750/26-1000												Communication Computer Control				3.05 m 15.24 m 300 mm		1 ft 10 ft			Braid Foil	90 % 100 %	26	9.4 mm	0.37 in	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)	Gray	300 V	Copper Tinned	Multi-Pair	Aluminum Copper Tinned	26 AWG	7 Strands 34 AWG	0.026 in	0.66 mm	30.5 m	50 ft 100 ft
3M (TC) 3750/38 300SF							Splice Free					Communication Computer Control				91.4 m		300 ft			Braid Foil	90 % 100 %	38			Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)	Gray	300 V	Copper Tinned	Multi-Pair	Aluminum Copper Tinned	26 AWG	7 Strands 34 AWG	0.026 in	0.66 mm
3M (TC) 3750-CS48	Date of Shipment	120 °F	49 °C	24 Months								Packaging Sealing Shipping	Synthetic Rubber Based			50 m	54.7 yds	164 ft	Box Sealing	Clear																				1 7/8"	47.63 mm	1.88 in	0.003 "	0.076 mm	3 mils

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	300	$ 1.84

Description

General part information

3750 Series

10 (5 Pair Twisted) Conductor Multi-Pair Cable Gray 26 AWG Foil, Braid 300.0' (91.4m)
