JN4AT04NJ1-R
ActiveJAE Electronics

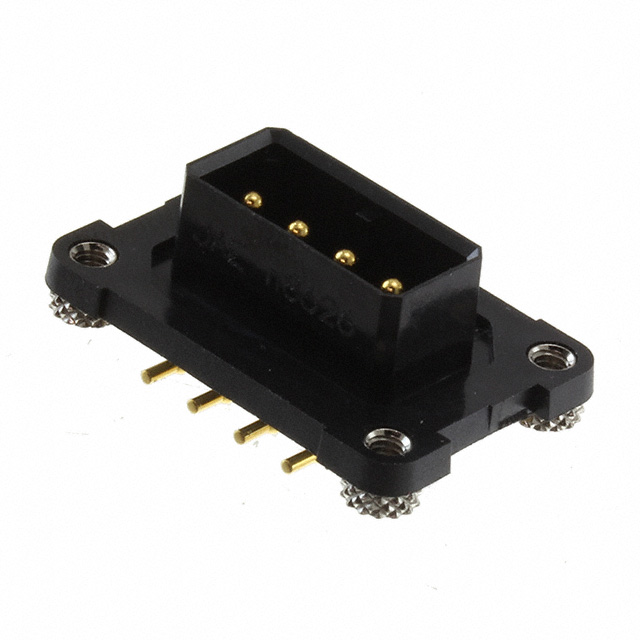

CONN HEADER R/A 4POS 3.2MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
JN4AT04NJ1-R
ActiveJAE Electronics
CONN HEADER R/A 4POS 3.2MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | JN4AT04NJ1-R |
|---|---|
| Applications | Industrial |
| Connector Type | Receptacle |
| Contact Finish - Mating | Gold |
| Contact Material | Copper Alloy |
| Contact Shape | Circular |
| Contact Type | Male Pin |
| Current Rating (Amps) | 7 A |
| Features | Mounting Flange, Waterproof |
| Insulation Height | 0.343 in |
| Insulation Height | 8.71 mm |
| Insulation Material | Synthetic Resin |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 4 |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Operating Temperature [Max] | 130 °C |
| Operating Temperature [Min] | -20 C |
| Pitch - Mating | 3.2 mm |
| Pitch - Mating | 0.126 " |
| Shrouding | Shrouded - 4 Wall |
| Style | Board to Cable/Wire |
| Termination | Solder |
