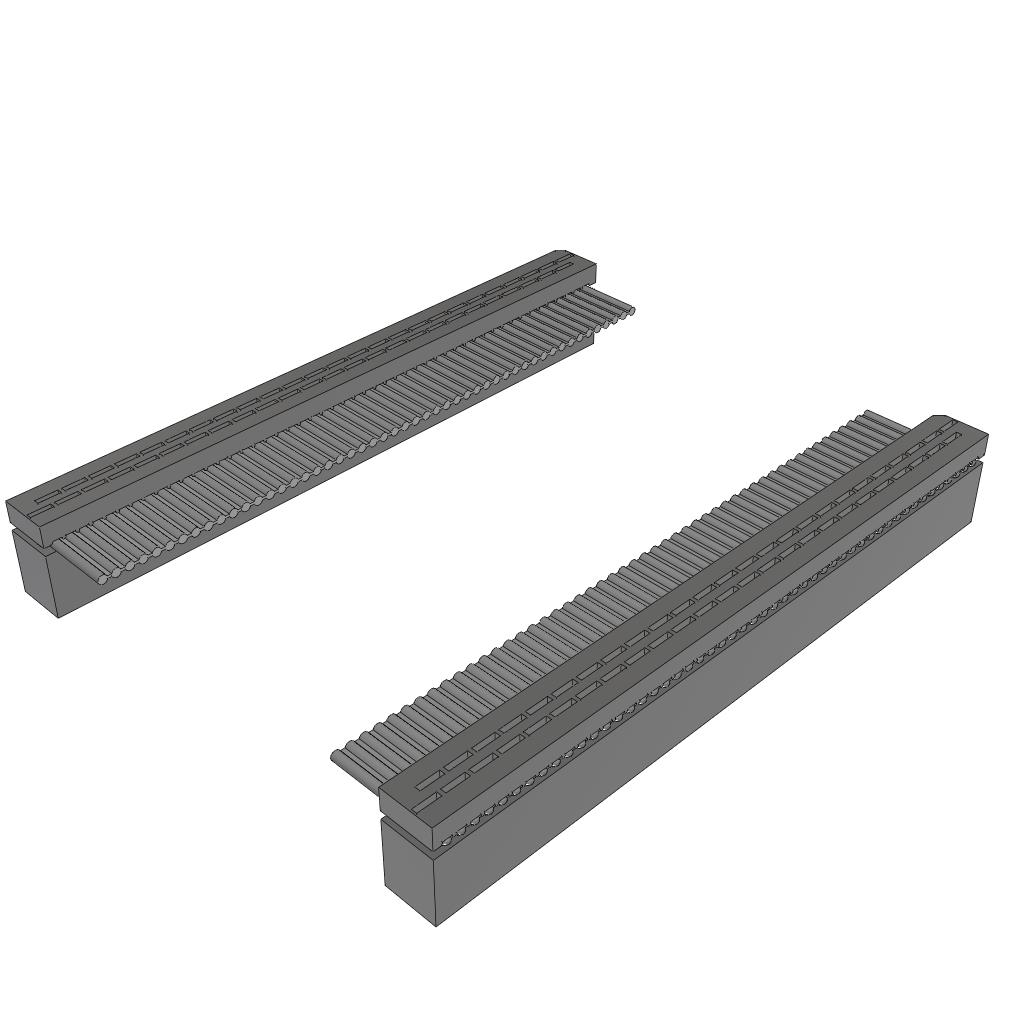

IDSD-25-D-15.00-P01

Active

Samtec Inc.

INSULATION DISPLACEMENT TERMINAL

Search across all available documentation for this part.

Active

Samtec Inc.

INSULATION DISPLACEMENT TERMINAL

Technical Specifications

Parameters and characteristics for this part

...

Part	Pitch - Connector	Pitch - Connector	Number of Rows	Contact Finish	Pitch - Cable	Pitch - Cable	Cable Termination	Number of Positions	Length [x]	Length [x]	Shielding	Connector Type	Color	Length [x]	Features	Length	Length	Length
Samtec Inc. IDSD-25-D-18.00-T	0.1 in	2.54 mm	2	Tin	0.05 "	1.27 mm	IDC	50	457.2 mm	1.5 ft	Unshielded	Socket to Socket	Multiple Ribbon
Samtec Inc. IDSD-25-S-04.00-RW	0.1 in	2.54 mm	2	Gold	0.05 "	1.27 mm	IDC	50	101.6 mm	0.333 ft	Unshielded	Socket to Cable	Multiple Ribbon	4 "	Reverse Wiring
Samtec Inc. IDSD-25-S-16.00-T-G-ST8	0.1 in	2.54 mm	2	Tin	0.05 "	1.27 mm	IDC	50	406.4 mm	1.33 ft	Unshielded	Socket to Cable
Samtec Inc. IDSD-25-D-60.00-G	0.1 in	2.54 mm	2	Gold	0.05 "	1.27 mm	IDC	50			Unshielded	Socket to Socket				1.52 m	5 '
Samtec Inc. IDSD-25-D-03.50	0.1 in	2.54 mm	2	Gold	0.05 "	1.27 mm	IDC	50	88.9 mm	0.292 ft	Unshielded	Socket to Socket	Multiple Ribbon	3.5 "
Samtec Inc. IDSD-25-D-12.00-P01	0.1 in	2.54 mm	2	Gold	0.05 "	1.27 mm	IDC	50			Unshielded	Socket to Socket	Multiple Ribbon			304.8 mm	1 ft
Samtec Inc. IDSD-25-D-11.60	0.1 in	2.54 mm	2	Gold	0.05 "	1.27 mm	IDC	50			Unshielded	Socket to Socket	Multiple Ribbon			294.64 mm	0.967 ft	11.6 in
Samtec Inc. IDSD-25-D-15.00-P01	0.1 in	2.54 mm	2	Gold	0.05 "	1.27 mm	IDC	50		15 in	Unshielded	Socket to Socket	Multiple Ribbon			381 mm
Samtec Inc. IDSD-25-D-04.13-G	0.1 in	2.54 mm	2	Gold	0.05 "	1.27 mm	IDC	50			Unshielded	Socket to Socket				105 mm	0.344 ft	4.13 in
Samtec Inc. IDSD-25-D-22.00-G	0.1 in	2.54 mm	2	Gold	0.05 "	1.27 mm	IDC	50	558.8 mm	1.83 ft	Unshielded	Socket to Socket

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 21.08

General part information

50 Position Cable Assembly Rectangular Socket to Socket 1.25' (381.00mm)

Technical documentation and resources
