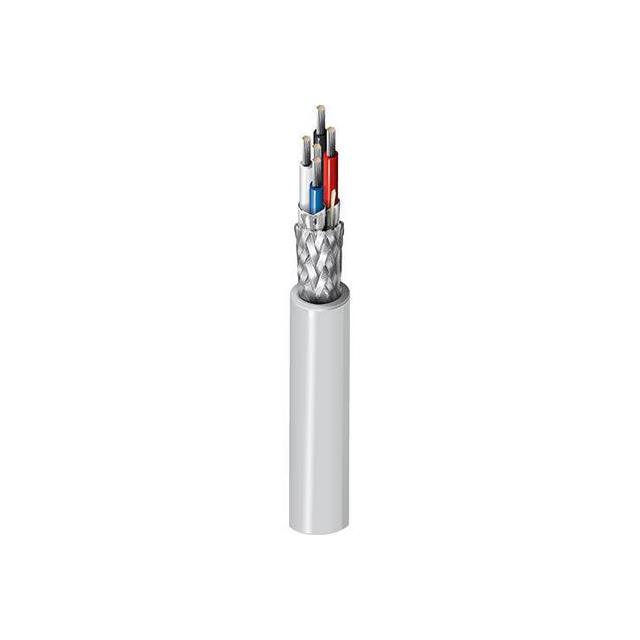

3085A 5601000

Active

Belden Inc.

MULTI-PAIR 4COND 22/24AWG

Search across all available documentation for this part.

Active

Belden Inc.

MULTI-PAIR 4COND 22/24AWG

Technical Specifications

Parameters and characteristics for this part

Specification	3085A 5601000

Cable Type	Multi-Pair
Conductor Insulation	Poly-Vinyl Chloride (PVC), Foam Polyethylene (FPE)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	36, 34
Conductor Strand [custom]	19
Features	Oil Resistant, UV Resistant, Drain Wire
Jacket (Insulation) Diameter [diameter]	0.28 in
Jacket (Insulation) Diameter [diameter]	7.11 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.838 mm
Jacket (Insulation) Thickness	0.033 in
Jacket Color	Yellow
Length	1000 ft
Length	304.8 m
Number of Conductors	4
Operating Temperature [Max]	75 ░C
Operating Temperature [Min]	-30 ░C
Shield Coverage	100 %, 65 %
Shield Material	Copper, Tinned, Aluminum
Shield Type	Foil, Braid
Voltage	300 V
Wire Gauge	22 AWG, 24 AWG

Part	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Shield Type	Jacket Color	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Voltage	Wire Gauge	Conductor Material	Shield Material	Features	Length	Length	Conductor Insulation	Shield Coverage	Jacket (Insulation) Material	Number of Conductors	Conductor Strand [custom]	Conductor Strand [custom]	Cable Type
Belden Inc. 3085A 5601000	0.838 mm	0.033 in	Braid Foil	Yellow	0.28 in	7.11 mm	-30 ░C	75 ░C	300 V	22 AWG 24 AWG	Copper Tinned	Aluminum Copper Tinned	Drain Wire Oil Resistant UV Resistant	1000 ft	304.8 m	Foam Polyethylene (FPE) Poly-Vinyl Chloride (PVC)	65 % 100 %	Poly-Vinyl Chloride (PVC)	4	34 36	19	Multi-Pair
Belden Inc. 3085A 5605000	0.838 mm	0.033 in	Braid Foil	Yellow	0.28 in	7.11 mm	-30 ░C	75 ░C	300 V	22 AWG 24 AWG	Copper Tinned	Aluminum Copper Tinned	Drain Wire Oil Resistant UV Resistant			Foam Polyethylene (FPE) Poly-Vinyl Chloride (PVC)	65 % 100 %	Poly-Vinyl Chloride (PVC)	4	34 36	19	Multi-Pair

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 4.83

General part information

4 (2 Pair) Conductor Multi-Pair Cable Yellow 22 AWG, 24 AWG Foil, Braid 1000.0' (304.8m)
