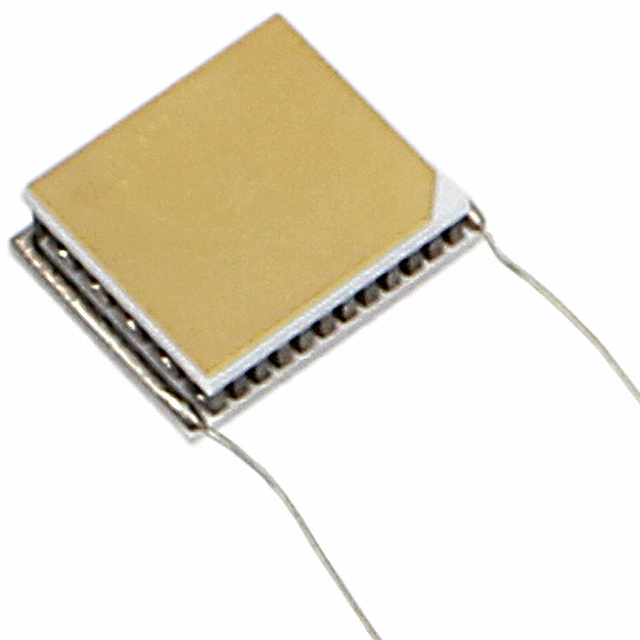

Specification	430009-502

Current - Max	800 mA
Delta Tmax	67 °C
Features	Non-Sealed, Lead Wires
Height	2.79 mm
Maximum Power Dissipation (Qmax)	3.6 W
Number of Stages	1
Operating Temperature	80 °C
Resistance	8.61 Ohms
Size / Dimension Length	11.38 mm
Size / Dimension Shape	Rectangular
Size / Dimension Width	8.94 mm
Voltage - Max	7.6 V

430009 Series

Part	Number of Stages	Height	Size / Dimension Shape	Size / Dimension Length	Size / Dimension Width	Current - Max	Maximum Power Dissipation (Qmax)	Operating Temperature	Voltage - Max	Resistance	Delta Tmax	Features
Laird Thermal Systems, Inc. 430009-502	1	2.79 mm	Rectangular	11.38 mm	8.94 mm	800 mA	3.6 W	80 °C	7.6 V	8.61 Ohms	67 °C	Lead Wires Non-Sealed
