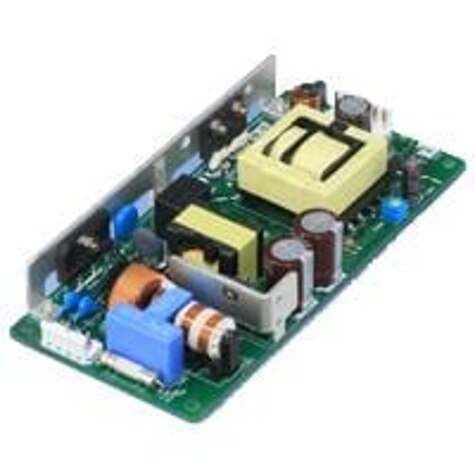

Specification	LHA150F-48-S

Applications	ITE (Commercial)
Approval Agency	TUV, cURus, CE, DEMKO
Current - Output 1	3.2 A
Efficiency	93 %
Features	Universal Input, Adjustable Output
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature (Max)	70 °C
Operating Temperature (Min)	-10 °C
Power (Watts)	154 W
Size / Dimension Height	1.48 in
Size / Dimension Length	7.4 in
Size / Dimension Width	3.35 in
Standard Number	62368-1
Type	Open Frame
Voltage - Input (AC) Maximum	264 V
Voltage - Input (AC) Minimum	85 VAC
Voltage - Isolation	3 kV
Voltage - Output 1	48 V

LHA Series

...

Part	Voltage - Input (AC) Minimum	Voltage - Input (AC) Maximum	Features	Voltage - Isolation	Voltage - Output 1	Applications	Efficiency	Standard Number	Number of Outputs	Size / Dimension Length	Size / Dimension Height	Size / Dimension Width	Operating Temperature (Max)	Operating Temperature (Min)	Power (Watts)	Type	Approval Agency	Current - Output 1	Mounting Type
Cosel USA, Inc. LHA30F-3R3-Y	85 VAC	264 V	Adjustable Output Universal Input	3 kV	3.3 V	ITE (Commercial)	85.5 %	62368-1	1	3.44 in	0.93 in	1.97 in	70 °C	-10 °C	20 W	Open Frame	CE cURus DEMKO UL	6 A	Chassis Mount
Cosel USA, Inc. LHA300F-48-SN	85 VAC	264 V	Adjustable Output Universal Input	3 kV	48 V	ITE (Commercial)	94 %	62368-1	1	8.35 in	1.85 in	3.7 in	70 °C	-10 °C	302 W	Enclosed	CE cURus DEMKO TUV	6.3 A	Chassis Mount
Cosel USA, Inc. LHA50F-5	85 VAC	264 V	Adjustable Output Universal Input	3 kV	5 V	ITE (Commercial)	86.5 %	62368-1	1	4.41 in	0.93 in	1.97 in	70 °C	-10 °C	40 W	Open Frame	CE cURus DEMKO UL	8 A	Chassis Mount
Cosel USA, Inc. LHA50F-48-Y	85 VAC	264 V	Adjustable Output PFC Remote On/Off Remote Sense Universal Input	3 kV	48 V	ITE (Commercial)	90 %	62368-1	1	4.41 in	0.93 in	1.97 in	70 °C	-10 °C	53 W	Enclosed	CE cURus DEMKO TUV UKCA	1.1 A	Chassis Mount
Cosel USA, Inc. LHA75F-48-Y	85 VAC	264 V	Adjustable Output PFC Remote On/Off Remote Sense Universal Input	3 kV	48 V	ITE (Commercial)	89.5 %	62368-1	1	5.91 in	0.93 in	1.97 in	70 °C	-10 °C	77 W	Enclosed	CE cURus DEMKO TUV UKCA	1.6 A	Chassis Mount
Cosel USA, Inc. LHA300F-36-R2
Cosel USA, Inc. LHA50F-5-J4	85 VAC	264 V	PFC Universal Input	3 kV	5 V	ITE (Commercial)	86.5 %	62368-1	1	4.41 in	0.93 in	1.97 in	70 °C	-10 °C	40 W	Open Frame	CE cURus DEMKO UKCA	8 A	Chassis Mount
Cosel USA, Inc. LHA75F-3R3-Y	85 VAC	264 V	Adjustable Output Universal Input	3 kV	3.3 V	ITE (Commercial)	75 %	62368-1	1	5.91 in	0.93 in	1.97 in	70 °C	-10 °C	40 W	Open Frame	CE cURus DEMKO UL	12 A	Chassis Mount
Cosel USA, Inc. LHA150F-36-S	85 VAC	264 V	PFC Remote On/Off Remote Sense Universal Input	3 kV	36 V	ITE (Commercial)	92.5 %	62368-1	1	6.3 in	1.07 in	2.95 in	70 °C	-10 °C	151 W	Enclosed	CE cURus DEMKO TUV UKCA	4.2 A	Chassis Mount
Cosel USA, Inc. LHA50F-36-C	85 VAC	264 V	PFC Universal Input	3 kV	36 V	ITE (Commercial)	90 %	62368-1	1	4.41 in	0.93 in	1.97 in	70 °C	-10 °C	50 W	Conformal Coated Open Frame	CE cURus DEMKO UKCA	1.4 A	Chassis Mount
