5179010-3

5179010-3

Active
TE Connectivity AMP Connectors

CONN FINE PITCH CONNECTOR RCP 80 POS 0.8MM SOLDER ST SMD BOX/TUBE

Find alt

Description

General part information

5179010 Series

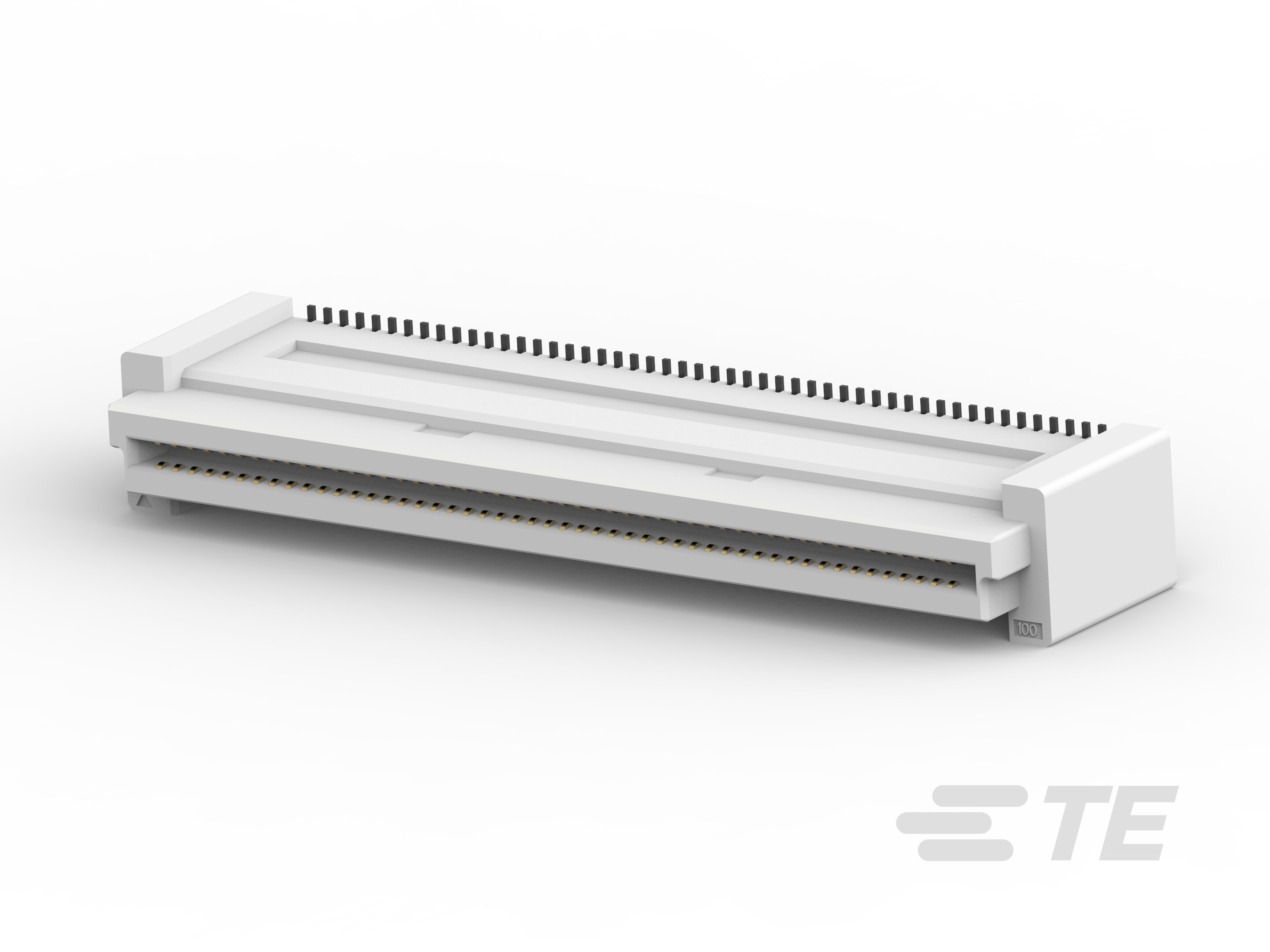

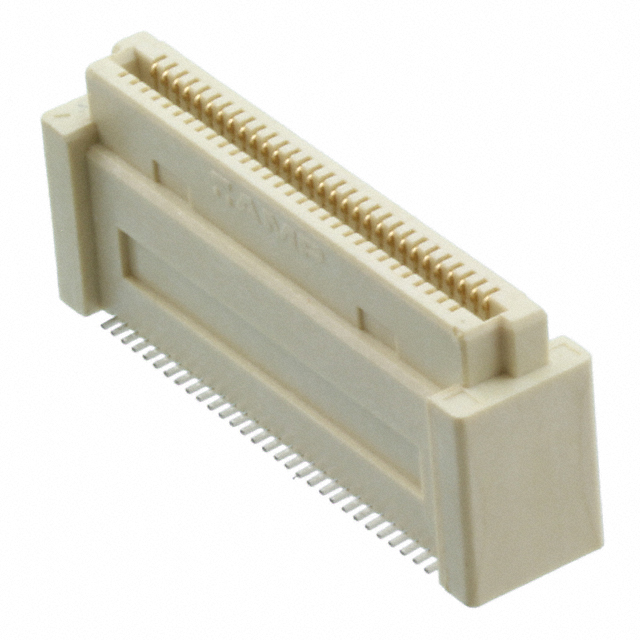

PCB Mount Receptacle, Vertical, Board-to-Board, 80 Position, .8 mm Centerline, Gold (Au), Surface Mount, Signal, White, Tape & Reel, Free Height

Technical Specifications

Parameters and characteristics for this part

Specification5179010-3
Connector TypeOuter Shroud Contacts, Receptacle
Contact FinishGold
Contact Finish Thickness8 µin
FeaturesBoard Guide
Height Above Board0.463 in
Mated Stacking Height13 mm
Mounting TypeSurface Mount
Number of Positions80
Number of Rows2
Pitch0.031 in
