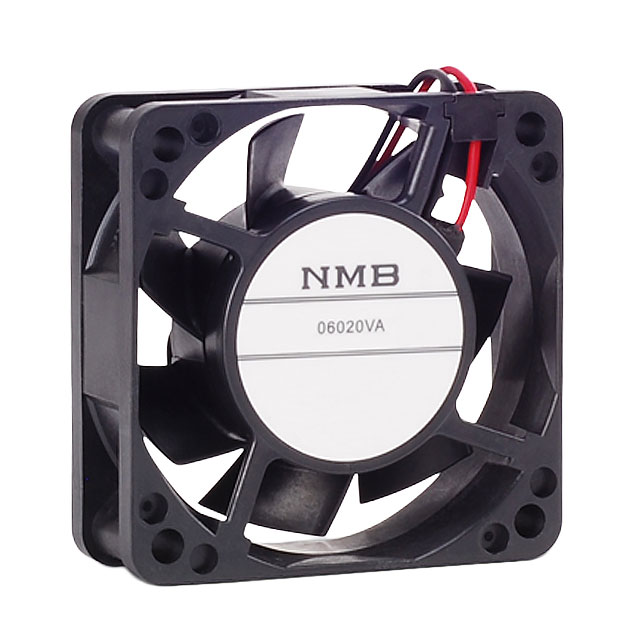

06020VA-24Q-CAS-0

Active

NMB TECHNOLOGIES

DC AXIAL FAN, 24 V, SQUARE, 60 MM, 20 MM, BALL BEARING, 24.72 CFM

Search across all available documentation for this part.

Active

NMB TECHNOLOGIES

DC AXIAL FAN, 24 V, SQUARE, 60 MM, 20 MM, BALL BEARING, 24.72 CFM

Technical Specifications

Parameters and characteristics for this part

Specification	06020VA-24Q-CAS-0

Air Flow	0.692 mł/min
Air Flow	24.7 CFM
Bearing Type	Ball
Current Rating (Amps)	150 mA
Fan Type	Tubeaxial
Ingress Protection	IP69K - Dust Tight, High Temp Water Jets, Waterproof
Material - Blade	Plastic
Material - Frame	Plastic
Noise	42 dB
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-10 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	3.6 W
RPM	6900 RPM
Size / Dimension [x]	60 mm
Size / Dimension [y]	60 mm
Static Pressure	0.4 in H2O
Static Pressure	99.6 Pa
Termination	2 Wire Leads
Voltage - Rated	24 VDC
Voltage Range [Max]	26.4 VDC
Voltage Range [Min]	10 VDC
Weight	0.176 lb
Weight	79.83 g
Width [y]	20 mm

DC AXIAL FAN, 24 V, SQUARE, 60 MM, 20 MM, BALL BEARING, 24.72 CFM

Part	Noise	Width [y]	Power (Watts)	Material - Frame	Termination	Air Flow	Air Flow	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	RPM	Fan Type	Material - Blade	Bearing Type	Current Rating (Amps)	Weight	Weight	Voltage - Rated	Voltage Range [Max]	Voltage Range [Min]	Size / Dimension [x]	Size / Dimension [y]	Static Pressure	Static Pressure	Ingress Protection
NMB TECHNOLOGIES 06020VA-24Q-CAS-0	42 dB	20 mm	3.6 W	Plastic	2 Wire Leads	0.692 mł/min	24.7 CFM	70 °C	70 °C	-10 °C	-10 °C	6900 RPM	Tubeaxial	Plastic	Ball	150 mA	0.176 lb	79.83 g	24 VDC	26.4 VDC	10 VDC	60 mm	60 mm	0.4 in H2O	99.6 Pa	IP69K - Dust Tight, High Temp Water Jets, Waterproof

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Tubeaxial 24VDC Square - 60mm L x 60mm H Ball 24.7 CFM (0.692mł/min) 2 Wire Leads
