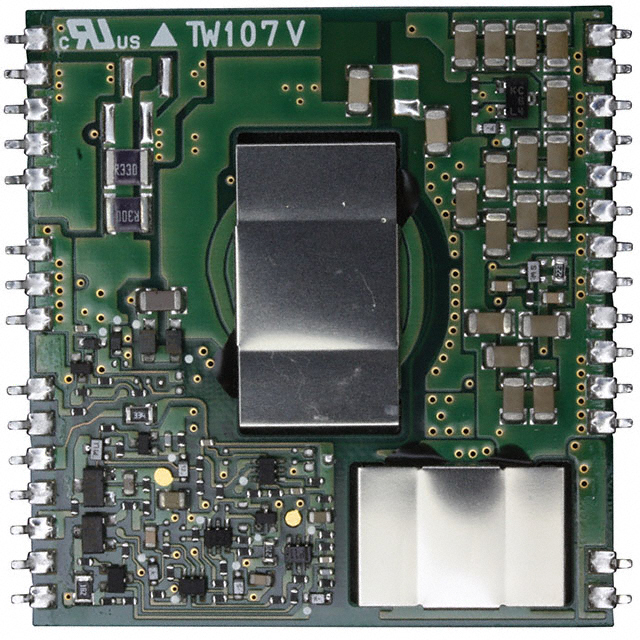

Specification	MPD6D127S

Applications	ITE (Commercial)
Current - Output (Max)	9 A
Efficiency	91 %
Mounting Type	Surface Mount
Number of Outputs	1
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-40 °C
Package Leads	29 Leads
Package Name	34-SMD Module
Power (Watts)	30 W
Size / Dimension Height	0.17 in
Size / Dimension Length	1.77 in
Size / Dimension Width	1.67 in
Type	Isolated Module
Voltage - Input (Max)	75 V
Voltage - Input (Min)	36 V
Voltage - Isolation	1500 Vrns
Voltage - Output 1	3.3 V

MPD6D Series

Part	Power (Watts)	Voltage - Input (Max)	Mounting Type	Current - Output (Max)	Voltage - Isolation	Package Leads	Package Name	Applications	Efficiency	Operating Temperature (Min)	Operating Temperature (Max)	Size / Dimension Height	Size / Dimension Width	Size / Dimension Length	Control Features	Voltage - Output 1	Features	Number of Outputs	Type	Voltage - Input (Min)
Murata Electronics MPD6D117S	15 W	75 V	Surface Mount	4.5 A	1500 Vrns	17 Leads	20-SMD Module	ITE (Commercial)	90 %	-40 °C	85 °C	0.17 in	1.23 in	1.47 in	Active Low Enable	3.3 V	OCP OTP OVP Remote On/Off	1	Isolated Module	36 V
Murata Electronics MPD6D104S	10 W	75 V	Surface Mount	3 A	1500 Vrns	15 Leads	18-SMD Module	ITE (Commercial)	86 %	-40 °C	85 °C	0.17 in	0.88 in	1.47 in	Active Low Enable	1.8 V	OCP OVP Remote On/Off	1	Isolated Module	36 V
Murata Electronics MPD6D102S	10 W	75 V	Surface Mount	3.5 A	1500 Vrns	15 Leads	18-SMD Module	ITE (Commercial)	79 %	-40 °C	85 °C	0.17 in	0.88 in	1.47 in	Active Low Enable	1.2 V	OCP OVP Remote On/Off	1	Isolated Module	36 V
Murata Electronics MPD6D209S	33 W	36 V	Surface Mount	6 A	1500 Vrns	17 Leads	20-SMD Module	ITE (Commercial)	91 %	-40 °C	85 °C	0.31 in	1.19 in	1.47 in	Active Low Enable	5.5 V	OCP OVP Remote On/Off	1	Isolated Module	18 V
Murata Electronics MPD6D128S	30 W	75 V	Surface Mount	6 A	1500 Vrns	29 Leads	34-SMD Module	ITE (Commercial)	92 %	-40 °C	85 °C	0.17 in	1.67 in	1.77 in		5 V		1	Isolated Module	36 V

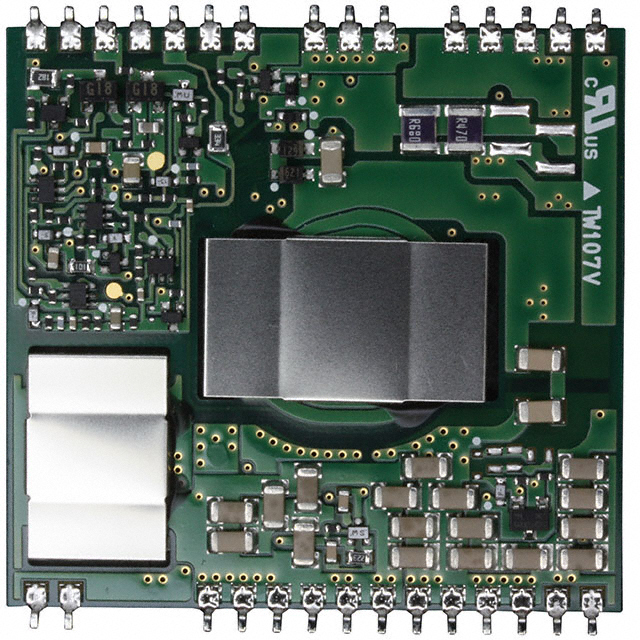

Murata Electronics MPD6D122S	30 W	75 V	Surface Mount	12 A	1500 Vrns	29 Leads	34-SMD Module	ITE (Commercial)	84 %	-40 °C	85 °C	0.17 in	1.67 in	1.77 in		1.2 V		1	Isolated Module	36 V
Murata Electronics MPD6D108S	10 W	75 V	Surface Mount	2 A	1500 Vrns	15 Leads	18-SMD Module	ITE (Commercial)	89 %	-40 °C	85 °C	0.17 in	0.88 in	1.47 in	Active Low Enable	5 V	OCP OVP Remote On/Off	1	Isolated Module	36 V
Murata Electronics MPD6D101S	10 W	75 V	Surface Mount	800 mA	1500 Vrns	15 Leads	18-SMD Module	ITE (Commercial)	88 %	-40 °C	85 °C	0.17 in	0.88 in	1.47 in	Active Low Enable	12 V	OCP OVP Remote On/Off	1	Isolated Module	36 V
Murata Electronics MPD6D127S	30 W	75 V	Surface Mount	9 A	1500 Vrns	29 Leads	34-SMD Module	ITE (Commercial)	91 %	-40 °C	85 °C	0.17 in	1.67 in	1.77 in		3.3 V		1	Isolated Module	36 V
