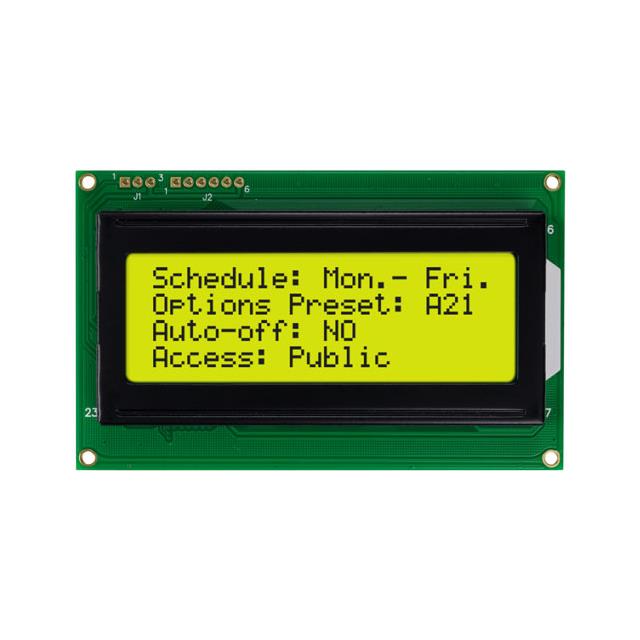

Specification	NHD-0420D3Z-FL-GBW-V3

Background Color	Green
Backlight Color	Yellow, Green
Backlight Type	LED
Character Height	4.75 mm
Character Height (Dots)	8 Dots
Character Width	2.95 mm
Character Width (Dots)	5 Dots
Controller Type	PIC16F698
Display Columns	20
Display Mode	Transflective
Display Rows	4
Display Type	STN - Super-Twisted Nematic
Dot Size Height	0.55 mm
Dot Size Width	0.55 mm
Interface	SPI, RS-232, I2C
Number of Characters	80 characters
Operating Temperature (Max)	70 °C
Operating Temperature (Min)	-20 °C
Outline Height	13.5 mm
Outline Length	98 mm
Outline Width	60 mm
Text Color	Blue
Viewing Area Length	76 mm
Viewing Area Width	25.2 mm
Voltage - Supply (Maximum)	5.5 V
Voltage - Supply (Minimum)	4.7 V

NHD-0420 Series

Part	Outline Length	Outline Width	Outline Height	Operating Temperature (Min)	Operating Temperature (Max)	Character Width (Dots)	Character Height (Dots)	Dot Size Height	Dot Size Width	Background Color	Display Type	Text Color	Interface	Interface Data Width	Display Rows	Display Columns	Display Mode	Number of Characters	Viewing Area Length	Viewing Area Width	Voltage - Supply (Minimum)	Voltage - Supply (Maximum)	Character Width	Character Height	Controller Type	Backlight Type	Backlight Color
Newhaven Display Intl NHD-0420CW-AR3	92 mm	31.5 mm	2.5 mm	-40 °C	85 °C	5 Dots	8 Dots	0.57 mm	0.57 mm	Black	OLED	Red	I2C Parallel SPI	8 Bit	4	20	Passive	80 characters	72.42 mm	22.82 mm	2.4 V	5.5 V	2.97 mm	4.77 mm
Newhaven Display Intl NHD-0420D3Z-NSW-BBW-V3	98 mm	60 mm	13.5 mm	-20 °C	70 °C	5 Dots	8 Dots	0.55 mm	0.55 mm	Blue	STN - Super-Twisted Nematic	White	I2C RS-232 SPI		4	20	Transmissive	80 characters	76 mm	25.2 mm	4.7 V	5.5 V	2.95 mm	4.75 mm	PIC16F699	LED	White
Newhaven Display Intl NHD-0420CW-AG3	92 mm	31.5 mm	2.5 mm	-40 °C	85 °C	5 Dots	8 Dots	0.57 mm	0.57 mm	Black	OLED	Green	I2C Parallel SPI	8 Bit	4	20	Passive	80 characters	72.42 mm	22.82 mm	2.4 V	5.5 V	2.97 mm	4.77 mm	US2066
Newhaven Display Intl NHD-0420D3Z-FL-GBW-V3	98 mm	60 mm	13.5 mm	-20 °C	70 °C	5 Dots	8 Dots	0.55 mm	0.55 mm	Green	STN - Super-Twisted Nematic	Blue	I2C RS-232 SPI		4	20	Transflective	80 characters	76 mm	25.2 mm	4.7 V	5.5 V	2.95 mm	4.75 mm	PIC16F698	LED	Green Yellow
Newhaven Display Intl NHD-0420AZ-FL-YBW-3V	77 mm	47 mm	14.5 mm	-20 °C	70 °C	5 Dots	8 Dots	0.46 mm	0.42 mm	Green	STN - Super-Twisted Nematic	Gray	Parallel		4	20	Transflective	80 characters	60 mm	22 mm	2.7 V	3.3 V	2.3 mm	4.03 mm		LED	Green Yellow
Newhaven Display Intl NHD-0420DZ-FL-YBW	98 mm	60 mm	13.6 mm	-20 °C	70 °C	5 Dots	8 Dots	0.55 mm	0.55 mm	Green	STN - Super-Twisted Nematic	Gray	Parallel		4	20	Transflective	80 characters	77 mm	25.2 mm	4.5 V	5.5 V	2.95 mm	4.75 mm	SPLC780D OR ST7066U	LED	Green Yellow
Newhaven Display Intl NHD-0420CW-AY3	92 mm	31.5 mm	2.5 mm	-40 °C	85 °C	5 Dots	8 Dots	0.57 mm	0.57 mm	Black	OLED	Yellow	I2C Parallel SPI	8 Bit	4	20	Passive	80 characters	72.42 mm	22.82 mm	2.4 V	5.5 V	2.97 mm	4.77 mm	US2066
Newhaven Display Intl NHD-0420E2Z-FL-GBW	146 mm	62.5 mm	14.5 mm	-20 °C	70 °C	5 Dots	8 Dots	1.1 mm	0.92 mm	Green	STN - Super-Twisted Nematic	Blue	Parallel		4	20	Transflective	80 characters	123 mm	42.5 mm	4.7 V	5.5 V	4.84 mm	9.22 mm	KS0066U	LED	Green Yellow
Newhaven Display Intl NHD-0420AZ-FL-GBW-33V3	77 mm	47 mm	14.5 mm	-20 °C	70 °C	5 Dots	8 Dots	0.46 mm	0.42 mm	Green	STN - Super-Twisted Nematic	Blue	Parallel		4	20	Transflective	80 characters	60 mm	22 mm	3 V	3.6 V	2.3 mm	4.03 mm	SPLC780D OR ST7066U	LED	Green Yellow
Newhaven Display Intl NHD-0420H1Z-FSW-GBW	79 mm	36 mm	13 mm	-20 °C	70 °C	5 Dots	8 Dots	0.6 mm	0.43 mm	White	STN - Super-Twisted Nematic	Gray	Parallel		4	20	Transflective	80 characters	60 mm	28 mm	4.7 V	5.5 V	2.35 mm	5.15 mm	SPLC780D OR ST7066U	LED	White
