STM32F101R6T6

Obsolete

STMicroelectronics

IC MCU 32BIT 32KB FLASH 64LQFP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

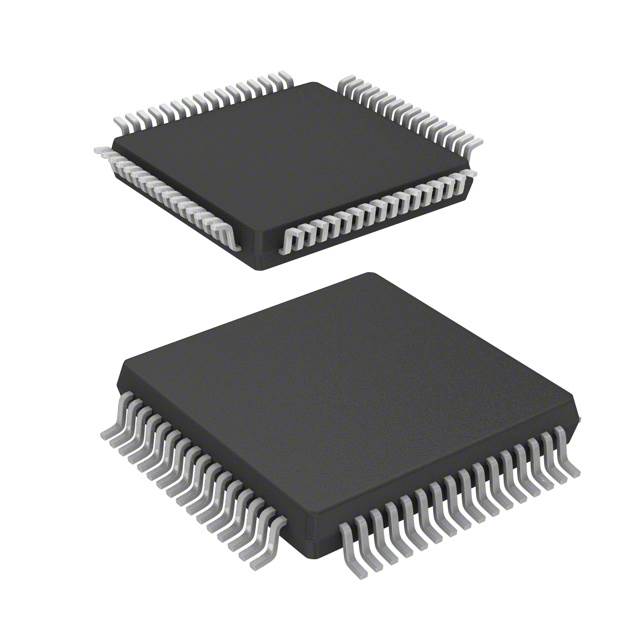

STM32F101R6T6

Obsolete

STMicroelectronics

IC MCU 32BIT 32KB FLASH 64LQFP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	STM32F101R6T6

Connectivity	LINbus, I2C, IrDA, SPI, UART/USART
Core Processor	ARM® Cortex®-M3
Core Size	32-Bit Single-Core
Data Converters [custom]	16
Data Converters [custom]	12 b
Mounting Type	Surface Mount
Number of I/O	51
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Oscillator Type	Internal
Package / Case	64-LQFP
Peripherals	PDR, PWM, Temp Sensor, POR, PVD, WDT, DMA
Program Memory Size	32 KB
Program Memory Type	FLASH
RAM Size	6 K
Speed	36 MHz
Supplier Device Package	64-LQFP (10x10)
Voltage - Supply (Vcc/Vdd) [Max]	3.6 V
Voltage - Supply (Vcc/Vdd) [Min]	2 V

STM32F101CB Series

Mainstream Access line, Arm Cortex-M3 MCU with 512 Kbytes of Flash memory, 36 MHz CPU

Part	Core Processor	Supplier Device Package	Program Memory Size	Program Memory Type	Oscillator Type	Operating Temperature [Max]	Operating Temperature [Min]	Data Converters [custom]	Data Converters [custom]	Core Size	Speed	Mounting Type	Connectivity	Voltage - Supply (Vcc/Vdd) [Min]	Voltage - Supply (Vcc/Vdd) [Max]	Peripherals	Package / Case	Number of I/O	RAM Size	RAM Size	Data Converters [custom]	Data Converters [custom]
STMicroelectronics STM32F101RDT6TR	ARM® Cortex®-M3	64-LQFP (10x10)	384 KB	FLASH	Internal	85 °C	-40 °C	12 b	16	32-Bit Single-Core	36 MHz	Surface Mount	I2C IrDA LINbus SPI UART/USART	2 V	3.6 V	DMA PDR POR PVD PWM Temp Sensor WDT	64-LQFP	51
STMicroelectronics STM32F101ZGT6	ARM® Cortex®-M3	144-LQFP (20x20)	1 MB	FLASH	Internal	85 °C	-40 °C	12 b	16	32-Bit Single-Core	36 MHz	Surface Mount	I2C IrDA LINbus SPI UART/USART	2 V	3.6 V	DMA PDR POR PVD PWM Temp Sensor WDT	144-LQFP	112	80 K
STMicroelectronics STM32F101T4U6A	ARM® Cortex®-M3	36-VFQFPN (6x6)	16 KB	FLASH	Internal	85 °C	-40 °C			32-Bit Single-Core	36 MHz	Surface Mount	I2C IrDA LINbus SPI UART/USART	2 V	3.6 V	DMA PDR POR PVD PWM Temp Sensor WDT	36-VFQFN Exposed Pad	26 I/O		4K x 8
STMicroelectronics STM32F101R6T6	ARM® Cortex®-M3	64-LQFP (10x10)	32 KB	FLASH	Internal	85 °C	-40 °C			32-Bit Single-Core	36 MHz	Surface Mount	I2C IrDA LINbus SPI UART/USART	2 V	3.6 V	DMA PDR POR PVD PWM Temp Sensor WDT	64-LQFP	51	6 K		16	12 b
STMicroelectronics STM32F101C6T6ATR	ARM® Cortex®-M3	48-LQFP (7x7)	32 KB	FLASH	Internal	85 °C	-40 °C			32-Bit Single-Core	36 MHz	Surface Mount	I2C IrDA LINbus SPI UART/USART	2 V	3.6 V	DMA PDR POR PVD PWM Temp Sensor WDT	48-LQFP	37	6 K
STMicroelectronics STM32F101RCT6TR	ARM® Cortex®-M3	64-LQFP (10x10)	256 KB	FLASH	Internal	85 °C	-40 °C	12 b	16	32-Bit Single-Core	36 MHz	Surface Mount	I2C IrDA LINbus SPI UART/USART	2 V	3.6 V	DMA PDR POR PVD PWM Temp Sensor WDT	64-LQFP	51
STMicroelectronics STM32F101C8T6TR	ARM® Cortex®-M3	48-LQFP (7x7)	64 KB	FLASH	Internal	85 °C	-40 °C			32-Bit Single-Core	36 MHz	Surface Mount	I2C IrDA LINbus SPI UART/USART	2 V	3.6 V	DMA PDR POR PVD PWM Temp Sensor WDT	48-LQFP	37	10 K
STMicroelectronics STM32F101CBT6	ARM® Cortex®-M3	48-LQFP (7x7)	128 KB	FLASH	Internal	85 °C	-40 °C			32-Bit Single-Core	36 MHz	Surface Mount	I2C IrDA LINbus SPI UART/USART	2 V	3.6 V	DMA PDR POR PVD PWM Temp Sensor WDT	48-LQFP	37	16 K
STMicroelectronics STM32F101RFT6	ARM® Cortex®-M3	64-LQFP (10x10)	768 KB	FLASH	Internal	85 °C	-40 °C	12 b	16	32-Bit Single-Core	36 MHz	Surface Mount	I2C IrDA LINbus SPI UART/USART	2 V	3.6 V	DMA PDR POR PVD PWM Temp Sensor WDT	64-LQFP	51	80 K
STMicroelectronics STM32F101RFT6TR	ARM® Cortex®-M3	64-LQFP (10x10)	768 KB	FLASH	Internal	85 °C	-40 °C	12 b	16	32-Bit Single-Core	36 MHz	Surface Mount	I2C IrDA LINbus SPI UART/USART	2 V	3.6 V	DMA PDR POR PVD PWM Temp Sensor WDT	64-LQFP	51	80 K

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

STM32F101CB Series

The STM32F101xB and STM32F101x8 medium-density access line family incorporates the high-performance ARM®Cortex®-M3 32-bit RISC core operating at a 36 MHz frequency, high-speed embedded memories (Flash memory up to 128 Kbytes and SRAM up to 16 Kbytes), and an extensive range of enhanced peripherals and I/Os connected to two APB buses. All devices offer standard communication interfaces (two I2Cs, two SPIs, and up to three USARTs), one 12-bit ADC and three general-purpose 16-bit timers.

The STM32F101xx medium-density access line family operates in the –40 to +85 °C temperature range, from a 2.0 to 3.6 V power supply. A comprehensive set of power-saving mode allows the design of low-power applications.

The STM32F101xx medium-density access line family includes devices in four different packages ranging from 36 pins to 100 pins. Depending on the device chosen, different sets of peripherals are included, the description below gives an overview of the complete range of peripherals proposed in this family.
