PJA100F-12

Active

Cosel USA, Inc.

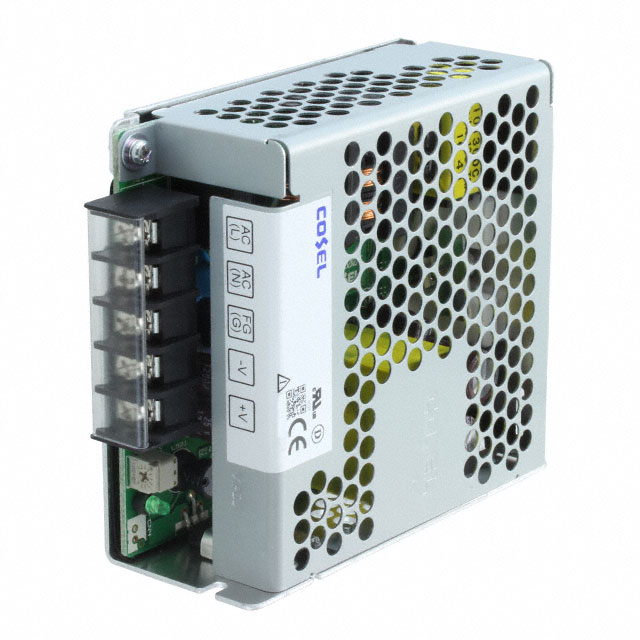

AC/DC CONVERTER 12V 100W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

PJA100F-12

Active

Cosel USA, Inc.

AC/DC CONVERTER 12V 100W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PJA100F-12

Applications	ITE (Commercial)
Approval Agency	CE, UL, CSA, DEMKO, cURus
Current - Output 1	8.4 A
Efficiency	85 %
Features	Universal Input
Minimum Load Required	False
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 °C
Power (Watts)	100 W
Size / Dimension [x]	109 mm
Size / Dimension [x]	4.29 in
Size / Dimension [y]	1.61 "
Size / Dimension [y]	40.9 mm
Size / Dimension [z]	97 mm
Size / Dimension [z]	3.82 in
Standard Number	508, 62368-1, 60950-1
Type	Enclosed
Voltage - Isolation	3000 V
Voltage - Output 1	12 V

PJA100F Series

Part	Current - Output 1	Voltage - Output 1	Power (Watts)	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Voltage - Isolation	Operating Temperature [Min]	Operating Temperature [Max]	Features	Number of Outputs	Type	Standard Number	Efficiency	Approval Agency	Mounting Type	Applications	AC Voltage - Input [Min]	AC Voltage - Input [Max]	Current - Output (Max) [Max]	Input Type
Cosel USA, Inc. PJA100F-12	8.4 A	12 V	100 W	1.61 "	40.9 mm	109 mm	97 mm	3.82 in	4.29 in	3000 V	-20 °C	70 °C	Universal Input	1	Enclosed	508 60950-1 62368-1	85 %	CE CSA cURus DEMKO UL	Chassis Mount	ITE (Commercial)
Cosel USA, Inc. PJA100F-24-N2		24 V	103 W	1.61 "	40.9 mm	109 mm	97 mm	3.82 in	4.29 in	3000 V	-20 °C	70 °C	Universal Input	1		508 60950-1 62368-1	88 %	CE CSA cURus DEMKO UL		ITE (Commercial)	85 VAC	264 VAC	4.3 A	AC
Cosel USA, Inc. PJA100F-24-T	4.3 A	24 V	103 W	1.61 "	40.9 mm	109 mm	97 mm	3.82 in	4.29 in	3000 V	-20 °C	70 °C	Universal Input	1	Enclosed	508 60950-1 62368-1	88 %	CE CSA cURus DEMKO UL	Chassis Mount	ITE (Commercial)
Cosel USA, Inc. PJA100F-15	6.7 A	15 V	100 W	1.61 "	40.9 mm	109 mm	97 mm	3.82 in	4.29 in	3000 V	-20 °C	70 °C	Universal Input	1	Enclosed	508 60950-1 62368-1	86 %	CE CSA cURus DEMKO UL	Chassis Mount	ITE (Commercial)
Cosel USA, Inc. PJA100F-36-J	2.8 A	36 V	101 W	1.61 "	40.9 mm	109 mm	97 mm	3.82 in	4.29 in	3000 V	-20 °C	70 °C	Universal Input	1	Enclosed	60950-1 62368-1	89 %	CE CSA cURus DEMKO UL	Chassis Mount	ITE (Commercial)
Cosel USA, Inc. PJA100F-48-T	2.1 A	48 V	101 W	1.61 "	40.9 mm	109 mm	97 mm	3.82 in	4.29 in	3000 V	-20 °C	70 °C	Universal Input	1	Enclosed	508 60950-1 62368-1	89 %	CE CSA cURus DEMKO UL	Chassis Mount	ITE (Commercial)
Cosel USA, Inc. PJA100F-12-C	8.4 A	12 V	101 W	1.61 "	40.9 mm	109 mm	97 mm	3.82 in	4.29 in	3000 V	-20 °C	70 °C	Universal Input	1	Conformal Coated Enclosed	508 60950-1 62368-1	85 %	CE CSA cURus DEMKO UL	Chassis Mount	ITE (Commercial)
Cosel USA, Inc. PJA100F-15-J	6.7 A	15 V	101 W	1.61 "	40.9 mm	109 mm	97 mm	3.82 in	4.29 in	3000 V	-20 °C	70 °C	Universal Input	1	Enclosed	60950-1 62368-1	86 %	CE CSA cURus DEMKO UL	Chassis Mount	ITE (Commercial)
Cosel USA, Inc. PJA100F-24-R	4.3 A	24 V	103 W	1.61 "	40.9 mm	109 mm	97 mm	3.82 in	4.29 in	3000 V	-20 °C	70 °C		1	Enclosed	508 60950-1 62368-1	88 %	CE CSA cURus DEMKO UL	Chassis Mount	ITE (Commercial)
Cosel USA, Inc. PJA100F-24-J	4.3 A	24 V	103 W	1.61 "	40.9 mm	109 mm	97 mm	3.82 in	4.29 in	3000 V	-20 °C	70 °C	Universal Input	1	Enclosed	60950-1 62368-1	88 %	CE CSA cURus DEMKO UL	Chassis Mount	ITE (Commercial)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 56.98
		5	$ 55.25
		10	$ 53.52
		25	$ 51.80
		50	$ 50.07
		100	$ 48.34

Description

General part information

PJA100F Series

Enclosed AC DC Converters 1 Output 12V 85 ~ 264 VAC Input

Documents

Technical documentation and resources
