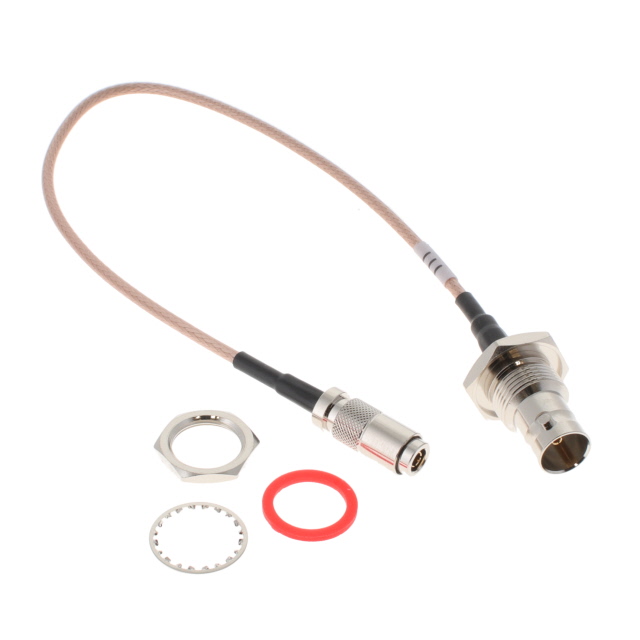

RF179-74BJ3-78SP4-0300

Active

Samtec Inc.

CBL ASSY BNC-DIN JCK-PLG 11.811"

Search across all available documentation for this part.

Active

Samtec Inc.

CBL ASSY BNC-DIN JCK-PLG 11.811"

Technical Specifications

Parameters and characteristics for this part

Specification	RF179-74BJ3-78SP4-0300

1st Connector	BNC Jack
1st Connector Mounting Feature	Bulkhead - Front Side Nut
1st Connector Mounting Type	Panel Mount
1st Contact Gender	Female
2nd Connector	DIN Plug
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Impedance	75 Ohms
Cable Type	RG-179
Color	Amber
Features	Shielded
Frequency - Max [Max]	4 GHz
Length [x]	300 mm
Length [x]	11.811 in
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-50 °C
Overall Impedance	75 Ohms
Style	BNC to DIN

Part	1st Connector	1st Connector Mounting Type	1st Contact Gender	2nd Contact Gender	2nd Connector Mounting Type	Overall Impedance	2nd Connector	Cable Impedance	1st Connector Mounting Feature	Frequency - Max [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Cable Type	Features	Length [x]	Length [x]	Color	Style
Samtec Inc. RF179-74BJ3-78SP4-0300	BNC Jack	Panel Mount	Female	Male	Free Hanging (In-Line)	75 Ohms	DIN Plug	75 Ohms	Bulkhead - Front Side Nut	4 GHz	-50 °C	165 °C	RG-179	Shielded	300 mm	11.811 in	Amber	BNC to DIN

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Assembly Coaxial BNC to DIN RG-179 11.811" (300.00mm)
