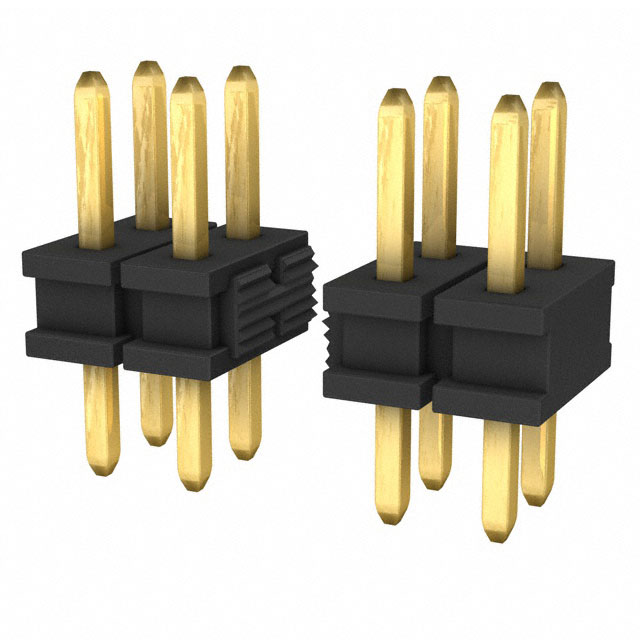

TMMH-124-01-G-D

Active

Samtec Inc.

2MM LOW PROFILE STRIPS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

TMMH-124-01-G-D

Active

Samtec Inc.

2MM LOW PROFILE STRIPS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TMMH-124-01-G-D

null

TMMH-124 Series

Headers & Wire Housings Low Profile Header S trips 2.00 mm Pitch

Part	Contact Shape	Contact Type	Insulation Color	Fastening Type	Contact Finish - Post	Number of Positions Loaded	Style	Material Flammability Rating	Insulation Height [custom]	Insulation Height [custom]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Mounting Type	Insulation Material	Pitch - Mating [x]	Pitch - Mating [x]	Connector Type	Termination	Number of Rows	Row Spacing - Mating	Row Spacing - Mating	Number of Positions	Contact Length - Mating	Contact Length - Mating	Contact Material	Contact Length - Post [x]	Contact Length - Post [x]	Operating Temperature [Min]	Operating Temperature [Max]	Shrouding	Contact Finish - Mating	Contact Length - Mating [x]	Contact Length - Mating [x]	Insulation Height	Insulation Height	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Features	Overall Contact Length	Overall Contact Length	Contact Length - Post	Contact Length - Post
Samtec Inc. TMMH-124-05-S-D-RA	Square	Male Pin	Black	Push-Pull	Tin	All	Board to Board Cable	UL94 V-0	0.157 in	4 mm	30 Áin	0.76 Ám	Through Hole Right Angle	Liquid Crystal Polymer (LCP)	0.079 in	2 mm	Cuttable Header	Solder	2	0.079 in	2 mm	48	0.065 in	1.65 mm	Phosphor Bronze	3.12 mm	0.123 in	-55 °C	125 °C	Unshrouded	Gold
Samtec Inc. TMMH-124-04-G-D-ES	Square	Male Pin	Black	Push-Pull	Gold	All	Board to Board Cable	UL94 V-0			20 µin	0.51 µm	Through Hole	Liquid Crystal Polymer (LCP)	0.079 in	2 mm	Cuttable Header	Solder	2	0.079 in	2 mm	48			Phosphor Bronze			-55 °C	125 °C	Unshrouded	Gold	1.9 mm	0.075 in	0.079 in	2 mm	3 µin	0.076 µm	End Shrouds	6.48 mm	0.255 in	0.101 in	2.57 mm
Samtec Inc. TMMH-124-01-S-T	Square	Male Pin	Black	Push-Pull	Tin	All	Board to Board Cable	UL94 V-0			30 Áin	0.76 Ám	Through Hole	Liquid Crystal Polymer (LCP)	0.079 in	2 mm	Cuttable Header	Solder	3	0.079 in	2 mm	72	0.126 "	3.2 mm	Phosphor Bronze			-55 °C	125 °C	Unshrouded	Gold			0.079 in	2 mm				7.67 mm	0.302 in	0.097 in	2.47 mm
Samtec Inc. TMMH-124-01-G-D
Samtec Inc. TMMH-124-01-L-D-RA-ES	Square	Male Pin	Black	Push-Pull	Tin	All	Board to Board Cable	UL94 V-0			10 çin	0.25 çm	Through Hole Right Angle	Liquid Crystal Polymer (LCP)	0.079 in	2 mm	Cuttable Header	Solder	2	0.079 in	2 mm	48	0.126 "	3.2 mm	Phosphor Bronze			-55 °C	125 °C	Unshrouded	Gold			0.25 in	6.35 mm			End Shrouds			0.139 in	3.53 mm
Samtec Inc. TMMH-124-01-G-D-ES	Square	Male Pin	Black	Push-Pull	Gold	All	Board to Board Cable	UL94 V-0			20 µin	0.51 µm	Through Hole	Liquid Crystal Polymer (LCP)	0.079 in	2 mm	Cuttable Header	Solder	2	0.079 in	2 mm	48	0.126 "	3.2 mm	Phosphor Bronze			-55 °C	125 °C	Unshrouded	Gold			0.079 in	2 mm	3 µin	0.076 µm	End Shrouds	7.67 mm	0.302 in	0.097 in	2.47 mm
Samtec Inc. TMMH-124-04-T-D	Square	Male Pin	Black	Push-Pull	Tin	All	Board to Board Cable	UL94 V-0					Through Hole	Liquid Crystal Polymer (LCP)	0.079 in	2 mm	Cuttable Header	Solder	2	0.079 in	2 mm	48			Phosphor Bronze			-55 °C	105 ░C	Unshrouded		1.9 mm	0.075 in	0.079 in	2 mm				6.48 mm	0.255 in	0.101 in	2.57 mm
Samtec Inc. TMMH-124-01-T-D-RA-ES	Square	Male Pin	Black	Push-Pull	Tin	All	Board to Board Cable	UL94 V-0					Through Hole Right Angle	Liquid Crystal Polymer (LCP)	0.079 in	2 mm	Cuttable Header	Solder	2	0.079 in	2 mm	48	0.126 "	3.2 mm	Phosphor Bronze			-55 °C	105 ░C	Unshrouded				0.25 in	6.35 mm			End Shrouds			0.139 in	3.53 mm
Samtec Inc. TMMH-124-01-S-D	Square	Male Pin	Black	Push-Pull	Tin	All	Board to Board Cable	UL94 V-0			30 Áin	0.76 Ám	Through Hole	Liquid Crystal Polymer (LCP)	0.079 in	2 mm	Cuttable Header	Solder	2	0.079 in	2 mm	48	0.126 "	3.2 mm	Phosphor Bronze			-55 °C	125 °C	Unshrouded	Gold			0.079 in	2 mm				7.67 mm	0.302 in	0.097 in	2.47 mm
Samtec Inc. TMMH-124-01-G-T-RA	Square	Male Pin	Black	Push-Pull	Gold	All	Board to Board Cable	UL94 V-0			20 µin	0.51 µm	Through Hole Right Angle	Liquid Crystal Polymer (LCP)	0.079 in	2 mm	Cuttable Header	Solder	3	0.079 in	2 mm	72	0.126 "	3.2 mm	Phosphor Bronze			-55 °C	125 °C	Unshrouded	Gold			0.236 in	6 mm	3 µin	0.076 µm				0.092 in	2.34 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 6.73

Description

General part information

TMMH-124 Series

Headers & Wire Housings Low Profile Header S trips 2.00 mm Pitch

Documents

Technical documentation and resources
