4320-01069-0
ActiveMurata Power Solutions Inc.

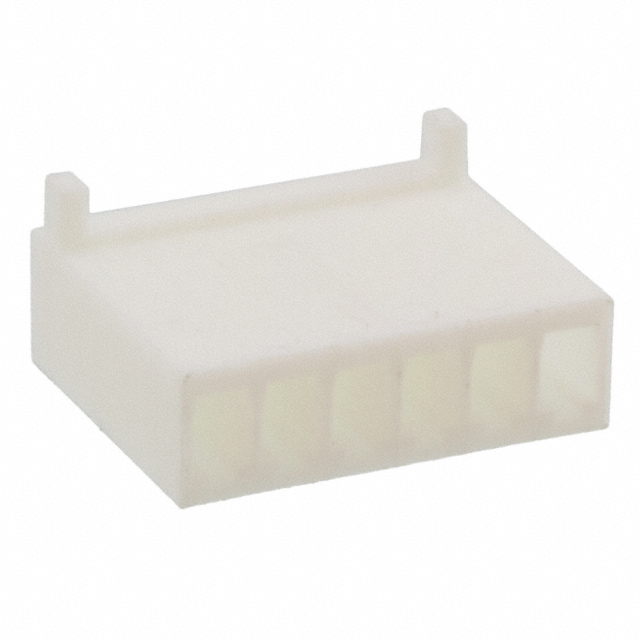

CONN HSG 6POS
Deep-Dive with AI
Search across all available documentation for this part.
4320-01069-0
ActiveMurata Power Solutions Inc.
CONN HSG 6POS
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 4320-01069-0 | 4320 Series |
|---|---|---|
| - | - | |
| Accessory Type | - | Connector |
| Connector Type | - | Receptacle |
| Contact Finish - Post | - | Tin |
| Contact Length - Post | - | 2.54 mm |
| Contact Length - Post | - | 0.1 in |
| Contact Material | - | Phosphor Bronze |
| Contact Shape | - | Square |
| Contact Termination | Crimp | Crimp |
| Contact Type | Female Socket | Female Socket |
| Current Rating (Amps) | - | 3 A |
| Fastening Type | - | Push-Pull |
| For Use With/Related Products | - | DMS Series |
| Insulation Color | - | Black |
| Insulation Height | - | 0.335 " |
| Insulation Height | - | 8.51 mm |
| Insulation Material | - | Liquid Crystal Polymer (LCP) |
| Material Flammability Rating | - | UL94 V-0 |
| Mounting Type | Free Hanging (In-Line) | Through Hole, Free Hanging (In-Line) |
| Note | Contacts Not Included | Contacts Not Included |
| Number of Positions | 6 | 6 |
| Number of Positions Loaded | - | All |
| Number of Rows | 1 | 1 |
| Operating Temperature | - | -65 ░C |
| Operating Temperature | - | 105 ░C |
| Specifications | - | 12 pin |
| Termination | - | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 2.21 | |
4320 Series
CONN RCPT 6POS TIN PCB
| Part | Insulation Height | Insulation Height | Contact Material | Termination | Contact Type | Number of Positions | Insulation Material | Fastening Type | Contact Shape | Number of Positions Loaded | Material Flammability Rating | Connector Type | Contact Length - Post | Contact Length - Post | Mounting Type | Number of Rows | Insulation Color | Contact Finish - Post | Current Rating (Amps) | Operating Temperature [Min] | Operating Temperature [Max] | For Use With/Related Products | Specifications | Accessory Type | Contact Termination | Note |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Murata Power Solutions Inc. 4320-01074-0 | ||||||||||||||||||||||||||
Murata Power Solutions Inc. 4320-01074-0 | 0.335 " | 8.51 mm | Phosphor Bronze | Solder | Female Socket | 6 | Liquid Crystal Polymer (LCP) | Push-Pull | Square | All | UL94 V-0 | Receptacle | 2.54 mm | 0.1 in | Through Hole | 1 | Black | Tin | 3 A | -65 ░C | 105 ░C | |||||
Murata Power Solutions Inc. 4320-01072-0 | DMS Series | 12 pin | Connector | |||||||||||||||||||||||
Murata Power Solutions Inc. 4320-01069-0 | Female Socket | 6 | Free Hanging (In-Line) | 1 | Crimp | Contacts Not Included |
Description
General part information
4320 Series
6 Rectangular Connectors - Housings
Documents
Technical documentation and resources
No documents available
