IS32LT3123-ZLA3-TR

Active

Lumissil Microsystems

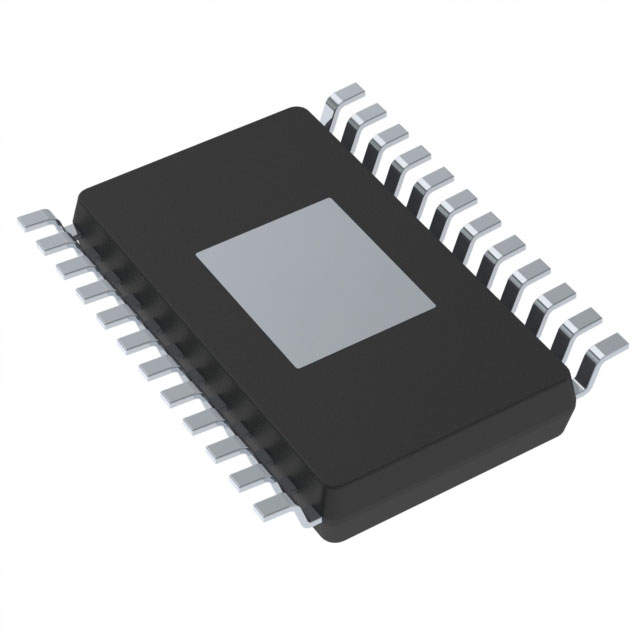

IC LED DRV LIN PWM 18MA 24ETSSOP

Search across all available documentation for this part.

Active

Lumissil Microsystems

IC LED DRV LIN PWM 18MA 24ETSSOP

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	IS32LT3123-ZLA3-TR	IS32LT3123 Series

Applications	Lighting	Lighting
Current - Output / Channel	-	200 mA
Current - Output / Channel [custom]	18 mA	18 mA
Dimming	PWM	PWM
Features	-	Dimmable
Grade	Automotive	Automotive
Internal Switch(s)	False	False
Mounting Type	Surface Mount	Surface Mount
Number of Outputs	4	4
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-40 °C	-40 °C
Outputs and Type	-	4
Outputs and Type	-	Non-Isolated Outputs
Package / Case	0.173 in	0.173 in
Package / Case	Exposed Pad, 24-TSSOP	Exposed Pad, 24-TSSOP
Package / Case [y]	4.4 mm	4.4 mm
Supplied Contents	-	Board(s)
Supplier Device Package	24-eTSSOP	24-eTSSOP
Topology	Constant Current	Constant Current
Type	Linear	Linear
Utilized IC / Part	-	IS32LT3123
Voltage - Input	-	5 V
Voltage - Input	-	40 V
Voltage - Output [Max]	8 V	8 V
Voltage - Output [Min]	6 V	6 V
Voltage - Supply (Max) [Max]	40 V	40 V
Voltage - Supply (Min) [Min]	5 V	5 V

EVAL BOARD FOR IS32LT3123-ZLA3

Part	Utilized IC / Part	Outputs and Type	Outputs and Type	Supplied Contents	Current - Output / Channel	Voltage - Input [Min]	Voltage - Input [Max]	Features	Topology	Current - Output / Channel [custom]	Grade	Voltage - Supply (Min) [Min]	Type	Internal Switch(s)	Package / Case	Package / Case	Package / Case [y]	Applications	Dimming	Voltage - Supply (Max) [Max]	Voltage - Output [Max]	Voltage - Output [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Number of Outputs	Mounting Type	Supplier Device Package
Lumissil Microsystems IS32LT3123-ZLA3-EB	IS32LT3123	4	Non-Isolated Outputs	Board(s)	200 mA	5 V	40 V	Dimmable
Lumissil Microsystems IS32LT3123-ZLA3-TR									Constant Current	18 mA	Automotive	5 V	Linear		0.173 in	24-TSSOP, Exposed Pad	4.4 mm	Lighting	PWM	40 V	8 V	6 V	-40 °C	125 °C	4	Surface Mount	24-eTSSOP

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

LED Driver IC 4 Output Linear Constant Current PWM Dimming 18mA 24-eTSSOP
