SDE1006A-331K

Active

Bourns Inc.

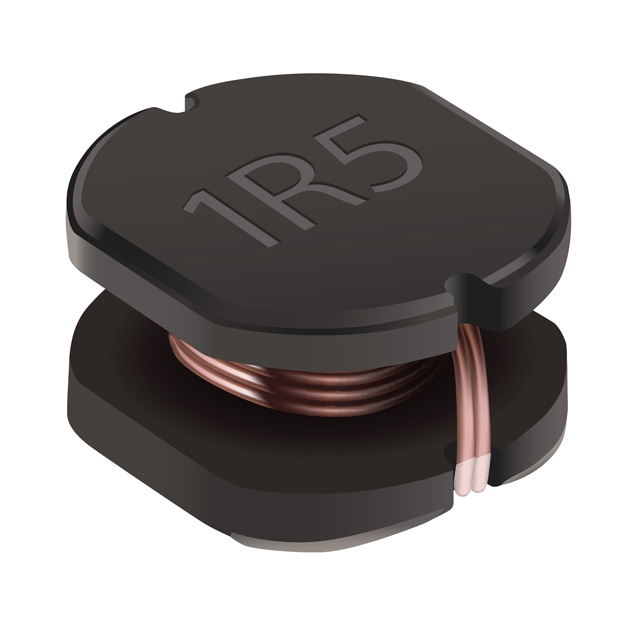

SURFACE MOUNT POWER INDUCTOR, AEC-Q200 SDE1006A SERIES, 330 H, 10%, UNSHIELDED, 1.15 OHM, 700 MA

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

SDE1006A-331K

Active

Bourns Inc.

SURFACE MOUNT POWER INDUCTOR, AEC-Q200 SDE1006A SERIES, 330 H, 10%, UNSHIELDED, 1.15 OHM, 700 MA

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SDE1006A-331K

Current - Saturation (Isat)	750 mA
Current Rating (Amps)	700 mA
DC Resistance (DCR) [Max]	1.15 Ohm
Frequency - Self Resonant	4.3 MHz
Height - Seated (Max) [Max] [z]	5.8 mm
Height - Seated (Max) [Max] [z]	0.228 "
Inductance	330 µH
Material - Core	Ferrite
Mounting Type	Surface Mount
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Package / Case	Nonstandard
Ratings	AEC-Q200
Shielding	Unshielded
Size / Dimension [x]	10 mm
Size / Dimension [x]	0.394 "
Size / Dimension [y]	9 mm
Size / Dimension [y]	0.354 in
Tolerance	10 %
Type	Wirewound, Drum Core

SDE1006A Series

Part	Inductance Frequency - Test	DC Resistance (DCR)	Current Rating (Amps)	Tolerance	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Inductance	Package / Case	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Current - Saturation (Isat)	Material - Core	Ratings	Shielding	Frequency - Self Resonant	Type	DC Resistance (DCR) [Max]
Bourns Inc. SDE1006A-3R9M	1 MHz	27 mOhm	5.2 A	20 %	10 mm	9 mm	0.394 "	0.354 in	3.9 µH	Nonstandard	Surface Mount	125 °C	-40 °C	5.8 mm	0.228 "	5.7 A	Ferrite	AEC-Q200	Unshielded	40.6 MHz	Drum Core Wirewound
Bourns Inc. SDE1006A-390M	1 MHz	140 mOhm	1.9 A	20 %	10 mm	9 mm	0.394 "	0.354 in	39 µH	Nonstandard	Surface Mount	125 °C	-40 °C	5.8 mm	0.228 "	2.1 A	Ferrite	AEC-Q200	Unshielded	12 MHz	Drum Core Wirewound
Bourns Inc. SDE1006A-561K			0.55 A	10 %	10 mm	9 mm	0.394 "	0.354 in	560 µH	Nonstandard	Surface Mount	125 °C	-40 °C	5.8 mm	0.228 "	600 mA	Ferrite	AEC-Q200	Unshielded	3.3 MHz	Drum Core Wirewound	1.9 Ohm
Bourns Inc. SDE1006A-121K			1.2 A	10 %	10 mm	9 mm	0.394 "	0.354 in		Nonstandard	Surface Mount	125 °C	-40 °C	5.8 mm	0.228 "	1.3 A	Ferrite	AEC-Q200	Unshielded	6.6 MHz	Drum Core Wirewound	400 mOhm
Bourns Inc. SDE1006A-180M	1 MHz		3 A	20 %	10 mm	9 mm	0.394 "	0.354 in	18 µH	Nonstandard	Surface Mount	125 °C	-40 °C	5.8 mm	0.228 "	2.8 A	Ferrite	AEC-Q200	Unshielded	19.3 MHz	Drum Core Wirewound	90 mOhm
Bourns Inc. SDE1006A-821K			450 mA	10 %	10 mm	9 mm	0.394 "	0.354 in	820 µH	Nonstandard	Surface Mount	125 °C	-40 °C	5.8 mm	0.228 "	500 mA	Ferrite	AEC-Q200	Unshielded	2.2 MHz	Drum Core Wirewound	2.55 Ohm
Bourns Inc. SDE1006A-330M	1 MHz	120 mOhm	2.2 A	20 %	10 mm	9 mm	0.394 "	0.354 in	33 µH	Nonstandard	Surface Mount	125 °C	-40 °C	5.8 mm	0.228 "	2.4 A	Ferrite	AEC-Q200	Unshielded	12.1 MHz	Drum Core Wirewound
Bourns Inc. SDE1006A-3R3M	1 MHz		5.4 A	20 %	10 mm	9 mm	0.394 "	0.354 in	3.3 µH	Nonstandard	Surface Mount	125 °C	-40 °C	5.8 mm	0.228 "	6 A	Ferrite	AEC-Q200	Unshielded	48.8 MHz	Drum Core Wirewound	24 mOhm
Bourns Inc. SDE1006A-331K			700 mA	10 %	10 mm	9 mm	0.394 "	0.354 in	330 µH	Nonstandard	Surface Mount	125 °C	-40 °C	5.8 mm	0.228 "	750 mA	Ferrite	AEC-Q200	Unshielded	4.3 MHz	Drum Core Wirewound	1.15 Ohm
