3-794122-1

Active

TE Connectivity AMP Connectors

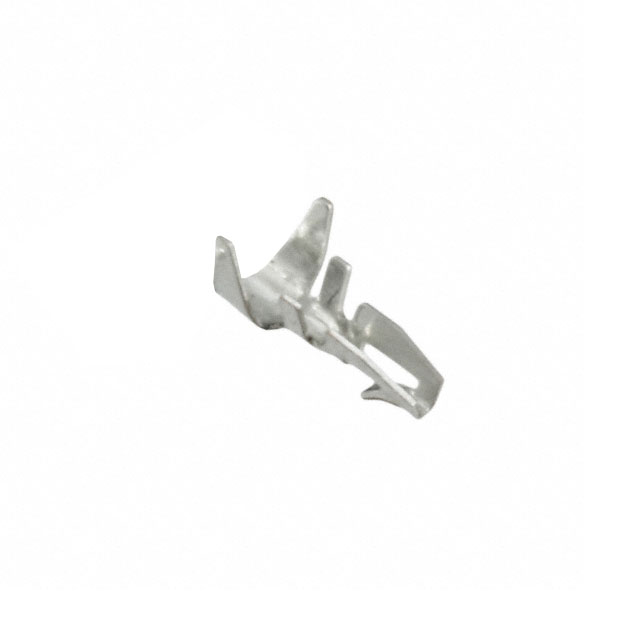

CONN TERM WTB 22-26AWG TIN

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN TERM WTB 22-26AWG TIN

Technical Specifications

Parameters and characteristics for this part

Specification	3-794122-1

Contact Finish	Tin
Contact Material	Phosphor Bronze
Hole Diameter [diameter]	0.055 in
Hole Diameter [diameter]	1.4 mm
Insulation Diameter [Max] [diameter]	2.79 mm, 0.11 "
Insulation Diameter [Min] [diameter]	0.04 in, 1.02 mm
Terminal Type	Locking, Through Board
Wire Gauge [Max]	26 AWG
Wire Gauge [Min]	22 AWG

CONN TERM WTB 22-26AWG TIN

Part	Hole Diameter [diameter]	Hole Diameter [diameter]	Contact Finish	Contact Material	Wire Gauge [Min]	Wire Gauge [Max]	Terminal Type	Insulation Diameter [Max] [diameter]	Insulation Diameter [Min] [diameter]
TE Connectivity AMP Connectors 3-794122-1	0.055 in	1.4 mm	Tin	Phosphor Bronze	22 AWG	26 AWG	Locking, Through Board	0.11 ", 2.79 mm	0.04 in, 1.02 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

WTB Tin Terminal Connector 22-26 AWG
