155210-6202-RB

Active

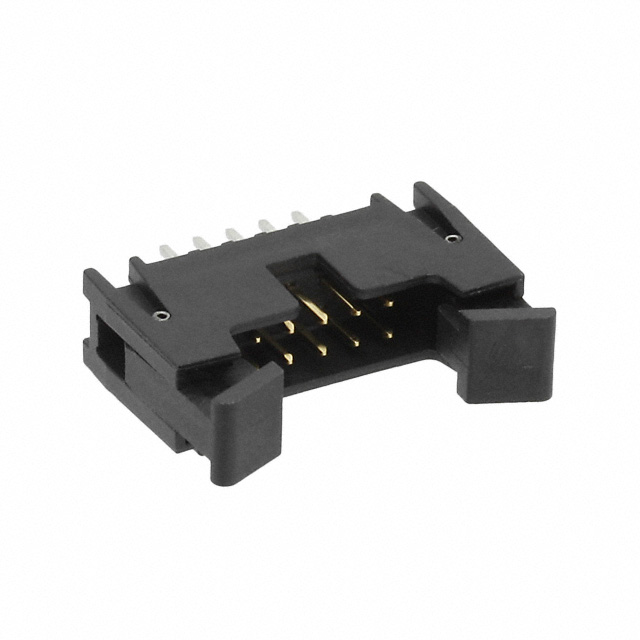

CONN HEADER VERT 10POS 2MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Interconnect Catalog

155210-6202-RB

Active

CONN HEADER VERT 10POS 2MM

Deep-Dive with AI

DocumentsDatasheet Interconnect Catalog

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	155210-6202-RB	155210 Series

Connector Type	Header	Header
Contact Finish - Mating	Gold	Gold
Contact Finish - Post	Tin	Tin
Contact Finish Thickness - Mating	30 Áin	10 - 30 Áin
Contact Finish Thickness - Mating	0.76 Ám	0.25 - 0.76 Ám
Contact Finish Thickness - Post	200 µin	200 µin
Contact Finish Thickness - Post	5.08 µm	5.08 µm
Contact Length - Mating	0.15 in	0.15 in
Contact Length - Mating	3.81 mm	3.81 mm
Contact Length - Post	2.84 mm	2.84 - 3.94 mm
Contact Length - Post	0.112 in	0.112 - 0.155 in
Contact Material	Copper Alloy	Copper Alloy
Contact Shape	Square	Square
Contact Type	Male Pin	Male Pin
Current Rating (Amps)	1.25 A	1.25 A
Fastening Type	Latch Lock/Eject Hooks	Latch Lock/Eject Hooks
Features	Keying Slot	Keying Slot, Pick and Place
Insulation Color	Black	Black
Insulation Height	0.425 in	0.247 - 0.425 in
Insulation Height	10.8 mm	6.28 - 10.8 mm
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole	Through Hole, Through Hole, Right Angle, Surface Mount
Number of Positions	10	10
Number of Positions Loaded	All	All
Number of Rows	2	2
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-55 °C	-55 °C
Pitch - Mating [x]	0.079 in	0.079 in
Pitch - Mating [x]	2 mm	2 mm
Row Spacing - Mating	0.079 in	0.079 in
Row Spacing - Mating	2 mm	2 mm
Shrouding	Shrouded - 4 Wall	Shrouded - 4 Wall
Style	Board to Cable/Wire	Board to Cable/Wire
Termination	Solder	Solder

155210 Series

CONN HEADER VERT 10POS 2MM

Part	Material Flammability Rating	Mounting Type	Termination	Current Rating (Amps)	Contact Type	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Length - Mating	Contact Length - Mating	Features	Number of Positions Loaded	Contact Finish - Post	Pitch - Mating [x]	Pitch - Mating [x]	Operating Temperature [Max]	Operating Temperature [Min]	Insulation Height	Insulation Height	Contact Length - Post	Contact Length - Post	Style	Shrouding	Fastening Type	Number of Rows	Contact Shape	Connector Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Mating	Insulation Color	Number of Positions	Contact Material	Row Spacing - Mating	Row Spacing - Mating
3M 155210-6202-RB	UL94 V-0	Through Hole	Solder	1.25 A	Male Pin	200 µin	5.08 µm	0.15 in	3.81 mm	Keying Slot	All	Tin	0.079 in	2 mm	105 ░C	-55 °C	0.425 in	10.8 mm	2.84 mm	0.112 in	Board to Cable/Wire	Shrouded - 4 Wall	Latch Lock/Eject Hooks	2	Square	Header	30 Áin	0.76 Ám	Gold	Black	10	Copper Alloy	0.079 in	2 mm
3M 155210-5202-RB	UL94 V-0	Through Hole, Right Angle	Solder	1.25 A	Male Pin	200 µin	5.08 µm	0.15 in	3.81 mm	Keying Slot	All	Tin	0.079 in	2 mm	105 ░C	-55 °C	0.247 in	6.28 mm	2.84 mm	0.112 in	Board to Cable/Wire	Shrouded - 4 Wall	Latch Lock/Eject Hooks	2	Square	Header	30 Áin	0.76 Ám	Gold	Black	10	Copper Alloy	0.079 in	2 mm
3M 155210-2400-RB	UL94 V-0	Surface Mount	Solder	1.25 A	Male Pin	200 µin	5.08 µm	0.15 in	3.81 mm	Keying Slot	All	Tin	0.079 in	2 mm	105 ░C	-55 °C	0.425 in	10.8 mm			Board to Cable/Wire	Shrouded - 4 Wall	Latch Lock/Eject Hooks	2	Square	Header	30 Áin	0.76 Ám	Gold	Black	10	Copper Alloy	0.079 in	2 mm
3M 155210-2300-RB-WD	UL94 V-0	Surface Mount	Solder	1.25 A	Male Pin	200 µin	5.08 µm	0.15 in	3.81 mm	Keying Slot, Pick and Place	All	Tin	0.079 in	2 mm	105 ░C	-55 °C	0.425 in	10.8 mm			Board to Cable/Wire	Shrouded - 4 Wall	Latch Lock/Eject Hooks	2	Square	Header	30 Áin	0.76 Ám	Gold	Black	10	Copper Alloy	0.079 in	2 mm
3M 155210-5203-RB	UL94 V-0	Through Hole, Right Angle	Solder	1.25 A	Male Pin	200 µin	5.08 µm	0.15 in	3.81 mm	Keying Slot	All	Tin	0.079 in	2 mm	105 ░C	-55 °C	0.247 in	6.28 mm	3.94 mm	0.155 "	Board to Cable/Wire	Shrouded - 4 Wall	Latch Lock/Eject Hooks	2	Square	Header	30 Áin	0.76 Ám	Gold	Black	10	Copper Alloy	0.079 in	2 mm
3M 155210-6302-RB	UL94 V-0	Through Hole	Solder	1.25 A	Male Pin	200 µin	5.08 µm	0.15 in	3.81 mm	Keying Slot	All	Tin	0.079 in	2 mm	105 ░C	-55 °C	0.425 in	10.8 mm	2.84 mm	0.112 in	Board to Cable/Wire	Shrouded - 4 Wall	Latch Lock/Eject Hooks	2	Square	Header	30 Áin	0.76 Ám	Gold	Black	10	Copper Alloy	0.079 in	2 mm
3M 155210-5302-RB	UL94 V-0	Through Hole, Right Angle	Solder	1.25 A	Male Pin	200 µin	5.08 µm	0.15 in	3.81 mm	Keying Slot	All	Tin	0.079 in	2 mm	105 ░C	-55 °C	0.247 in	6.28 mm	2.84 mm	0.112 in	Board to Cable/Wire	Shrouded - 4 Wall	Latch Lock/Eject Hooks	2	Square	Header	30 Áin	0.76 Ám	Gold	Black	10	Copper Alloy	0.079 in	2 mm
3M 155210-5303-RA	UL94 V-0	Through Hole, Right Angle	Solder	1.25 A	Male Pin	200 µin	5.08 µm	0.15 in	3.81 mm	Keying Slot	All	Tin	0.079 in	2 mm	105 ░C	-55 °C	0.247 in	6.28 mm	3.94 mm	0.155 "	Board to Cable/Wire	Shrouded - 4 Wall	Latch Lock/Eject Hooks	2	Square	Header	10 çin	0.25 çm	Gold	Black	10	Copper Alloy	0.079 in	2 mm
3M 155210-5302-RA	UL94 V-0	Through Hole, Right Angle	Solder	1.25 A	Male Pin	200 µin	5.08 µm	0.15 in	3.81 mm	Keying Slot	All	Tin	0.079 in	2 mm	105 ░C	-55 °C	0.247 in	6.28 mm	2.84 mm	0.112 in	Board to Cable/Wire	Shrouded - 4 Wall	Latch Lock/Eject Hooks	2	Square	Header	10 çin	0.25 çm	Gold	Black	10	Copper Alloy	0.079 in	2 mm
3M 155210-5303-RB	UL94 V-0	Through Hole, Right Angle	Solder	1.25 A	Male Pin	200 µin	5.08 µm	0.15 in	3.81 mm	Keying Slot	All	Tin	0.079 in	2 mm	105 ░C	-55 °C	0.247 in	6.28 mm	3.94 mm	0.155 "	Board to Cable/Wire	Shrouded - 4 Wall	Latch Lock/Eject Hooks	2	Square	Header	30 Áin	0.76 Ám	Gold	Black	10	Copper Alloy	0.079 in	2 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

155210 Series

Connector Header Through Hole 10 position 0.079" (2.00mm)
