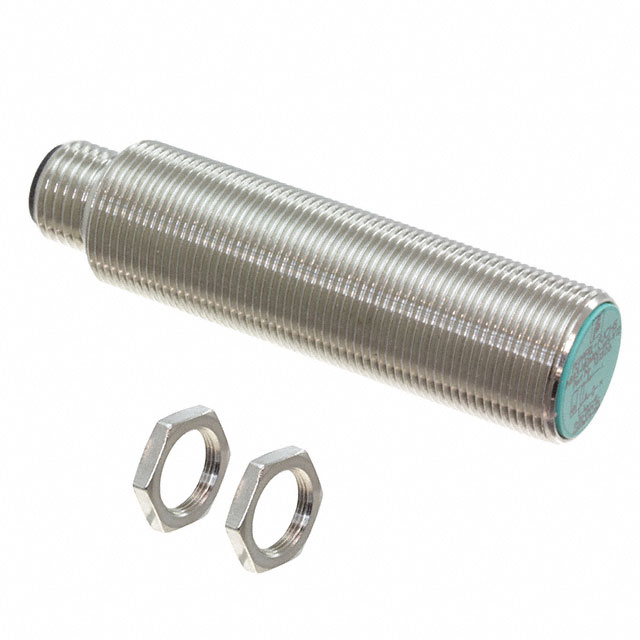

NBB5-18GM60-WS-V12

NBB5-18GM60-WS-V12

Active
Pepperl+Fuchs, Inc.

INDUCTIVE SEN 5MM NO

Find alt
NBB5-18GM60-WS-V12

NBB5-18GM60-WS-V12

Active
Pepperl+Fuchs, Inc.

INDUCTIVE SEN 5MM NO

Find alt

Description

General part information

NBB5-18 Series

INDUCTIVE SEN 5MM NO

Technical Specifications

Parameters and characteristics for this part

SpecificationNBB5-18GM60-WS-V12
IndicatorLED
Ingress ProtectionIP67
Material - BodyNickel-Plated Brass
Operating Temperature (Max)70 °C
Operating Temperature (Min)-25 °C
Output TypeSCR-NO, 2-Wire
Package / CaseCylinder, Threaded - M18
Sensing Distance0.197 "
Sensor TypeInductive
ShieldingUnshielded
Termination StyleConnector
Voltage - Supply (Maximum)253 V
Voltage - Supply (Minimum)20 VDC
